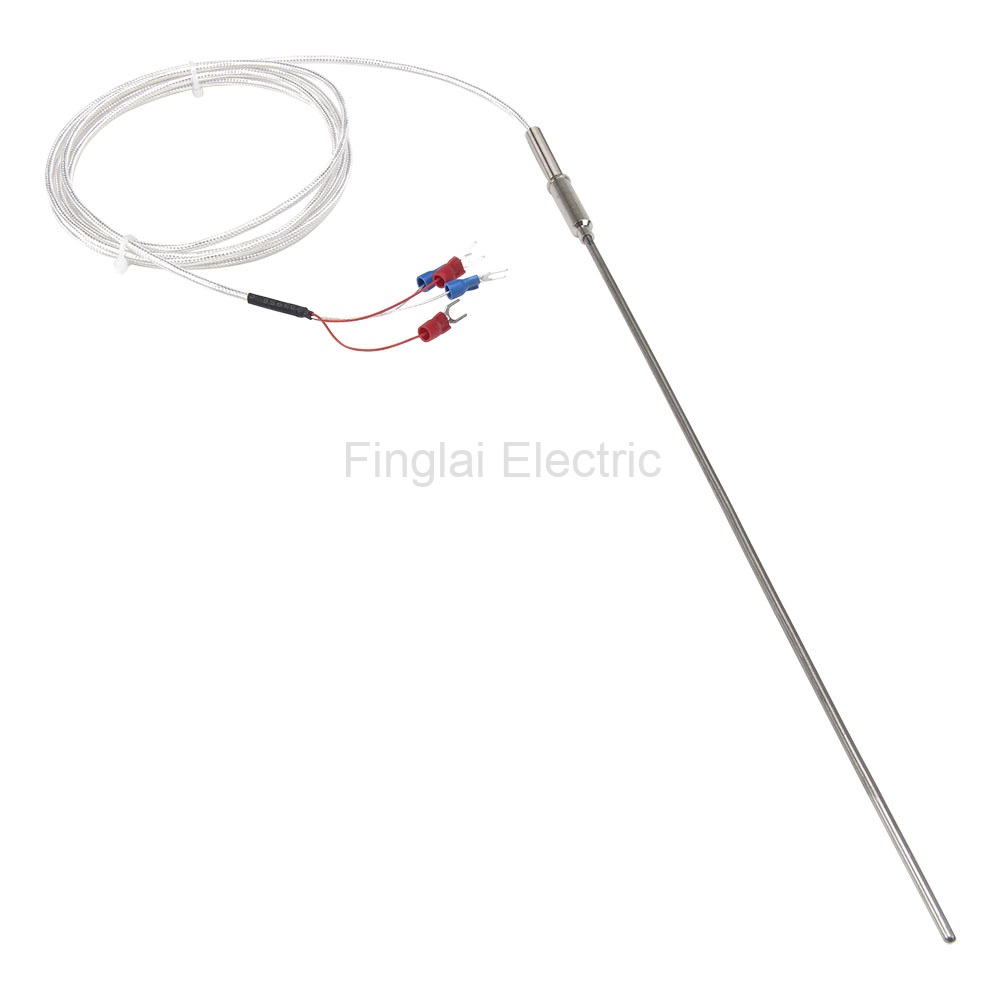

FTARP08 PT1000 type A grade 3*250mm 316L stainless steel flexible probe 4 wires 2m FEP cable sheathed RTD temperature sensor

Product features
FTARP08 PT1000 type A grade 3*250mm 316L stainless steel flexible probe 4 wires 2m FEP cable sheathed RTD temperature sensor
Mouse over to zoom in
FTARP08 PT1000 type A grade 3*250mm 316L stainless steel flexible probe 4 wires 2m FEP cable sheathed RTD temperature sensorFTARP08 PT1000 type A grade 3*250mm 316L stainless steel flexible probe 4 wires 2m FEP cable sheathed RTD temperature sensorFTARP08 PT1000 type A grade 3*250mm 316L stainless steel flexible probe 4 wires 2m FEP cable sheathed RTD temperature sensorFTARP08 PT1000 type A grade 3*250mm 316L stainless steel flexible probe 4 wires 2m FEP cable sheathed RTD temperature sensor
FTARP08 PT1000 type A grade 3*250mm 316L stainless steel flexible probe 4 wires 2m FEP cable sheathed RTD temperature sensor
Price: US $9.58 / piece
Model number: FTARP08-PT1000-A316LD3L250P2W4
Product name: Temperature sensor
Accuracy:
A grade: ±(0.15℃+0.2%|t|)
US $9.58
B grade: ±(0.3℃+0.5%|t|)
Probe material:
321 stainless steel316L stainless steel
US $9.58
Probe diameter:
3mm
US $9.58
4mm5mm6mm
Cable material:
Metal screeningFEP silver plated copper
US $9.58
Cable length (3 wires default):
0.15m0.25m0.25m 4 wires1m1m 4 wires1.5m2m2m 4 wires
US $9.58
3m5m
Deliver to:
Shipping:
US $8.55via
Estimated Delivery Time: 9-17 days
DDP service: All applicable import duties and taxes are included in total price.
Quantity:



Total price:US $18.13
Buy Now
Add to Cart
Inquire
Payment:
PayPalCredit CardWESTERN UNIONBANK TRANSFER
Need quotation for reference?Get quotation
Product description
▇ Model number and parameters
Model numberTypeMeasuring rangeOnline store:
FTARP08-KK0-600 ℃US $2.33 - 44.02/ pieceOrder (86)
FTARP08-EE0-400 ℃US $3.74/ pieceOrder (1)
FTARP08-JJ0-400 ℃US $5.32 - 9.57/ pieceOrder (32)
FTARP08-TT-200-350 ℃US $6.07 - 7.24/ pieceOrder (6)
FTARP08-NN0-600 ℃US $6.07 - 7.82/ pieceOrder (2)
FTARP08-PT100PT100Metal, FEP cable: -50-200℃
Silica gel cable: -50-180℃
US $6.15 - 12.63/ pieceOrder (138)
FTARP08-PT1000PT1000Metal, FEP cable: -50-200℃
Silica gel cable: -50-180℃
Visiting...
▇ FTARP08-PT1000 temperature sensors model number legend
▇ General
Model number FTARP08 series
Mounting form Flexible probe (Can be straight or bent, sheathed solid tube)
Accuracy K, E, J: ±0.4%|t|; PT100 A grade: ±(0.15℃+0.2%|t|); PT100 B grade: ±(0.3℃+0.5%|t|)
Current: A grade: ±(0.15℃+0.2%|t|)
Work type Thermocouple: Ungrounded excpet 0.5mm diameter, can't assure 0.5mm diameter ungrounded
Thread size Can add fixed screw thread, like M6*1...
Probe material Standard is 321 stainless steel, can make to the following:
High temperature resistant: 2520, 3030, 3039
Anti-corrosion: 316L
High temperature resistant and anti-corrosion: GH3039
Probe diameter 0.5, 1, 1.5, 2, 3, 4, 5, 6, 8, 10mm, PT100 is 8mm max. More bigger diameter more higher temperature resistant more response time and more operation life
Current: 3mm
Probe length 10-30000mm. Temperature measurement point: thermocouple:about 5mm from tip. RTD: about 5-20mm from tip. If with fixed screw, the length don't include screw thread length.
Current: 250mm
Cable material Metal screening; FEP silver plated copper, Silica gel; 2*4*0.6mm blue compensated fibreglass braided
Current: FEP silver plated copper
Cable length Standard is K 1.5m, PT100 1m, can make 0.1-100m
Matched accessory M12 mounting nut, M16 mounting nut
Insulating resistance 20MΩ min
Technical article PT100 Platinum RTD temperature resistance list - 0.00385 coefficient
▇ Thermal response time (Unit: s)
Probe diameterUngrounded thermocoupleGrounded thermocoupleRTD
Ф20.50.4---
Ф31.20.63
Ф42.50.85
Ф54.51.28
Ф66212
Ф88415
▇ FTARP08-PT1000 temperature sensors submodels
No Model Number Accuracy Probe Material Probe Diameter Probe Length Cable Material Cable Length (3 Wires Default) MOQ Unit Price Related Product
1 FTARP08-PT1000-AD3L100M1 A grade: ±(0.15℃+0.2%|t|) 321 stainless steel 3mm 100mm Metal screening 1m 1 US $8.24 Order
2 FTARP08-PT1000-AD3L300M1W4 A grade: ±(0.15℃+0.2%|t|) 321 stainless steel 3mm 300mm Metal screening 1m 4 wires 1 US $8.91 Order
3 FTARP08-PT1000-AD3L50M1W4 A grade: ±(0.15℃+0.2%|t|) 321 stainless steel 3mm 50mm Metal screening 1m 4 wires 1 US $8.91 Order
4 FTARP08-PT1000-A316LD3L100M1 A grade: ±(0.15℃+0.2%|t|) 316L stainless steel 3mm 100mm Metal screening 1m 1 US $8.24 Order
5 FTARP08-PT1000-A316LD3L250P2W4 A grade: ±(0.15℃+0.2%|t|) 316L stainless steel 3mm 250mm FEP silver plated copper 2m 4 wires 1 US $9.58 Visiting...
Packaging Details
Product quantity: 1pc
Package weight: 0.16kg
Package size: 10 x 10 x 8 cm
