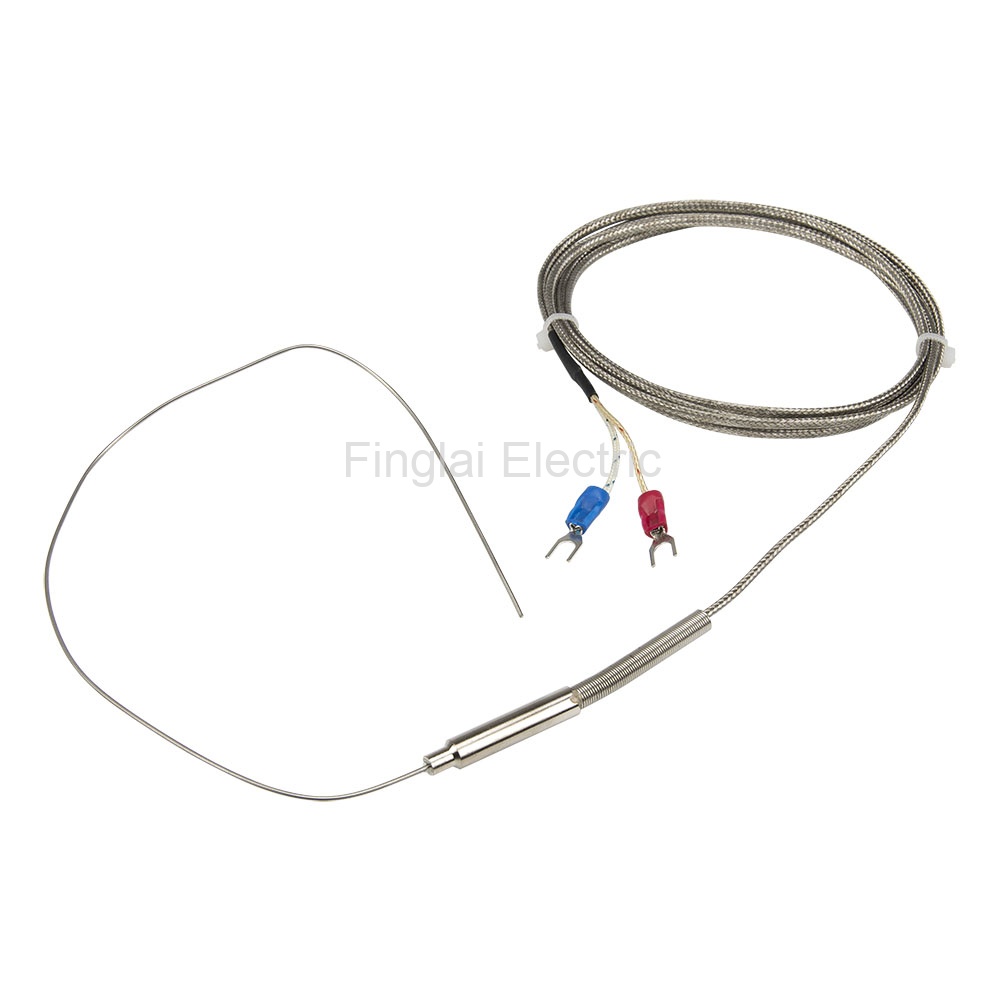

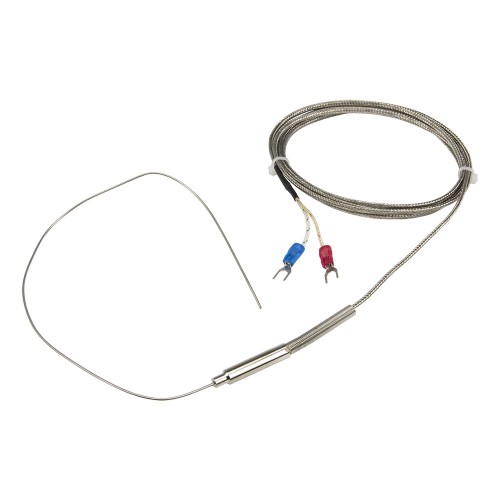

FTARP08 K type 1*300mm 321 stainless steel flexible probe 1.5m metal screening cable sheathed thermocouple temperature sensor

Product features
Price: US $6.16 / piece
Model number: FTARP08-K-D1L300M1.5
Product name: Thermocouple
Deliver to:
Shipping:
US $4.76via
Estimated Delivery Time: 9-15 days
Quantity:



Total price:US $10.92
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
Model number and parameters
Model numberTypeMeasuring rangeOnline store:
FTARP08-KK0-600 ℃Visiting...
FTARP08-EE0-400 ℃US $3.74/ pieceOrder (1)
FTARP08-JJ0-400 ℃US $5.32 - 9.57/ pieceOrder (25)
FTARP08-TT-200-350 ℃US $6.07 - 6.65/ pieceOrder (3)
FTARP08-NN0-600 ℃US $6.07/ pieceOrder (1)
FTARP08-PT100PT100Metal, PEP cable: -50-200℃
Silica gel cable: -50-180℃
US $6.15 - 11.61/ pieceOrder (129)
FTARP08-PT1000PT1000Metal, PEP cable: -50-200℃
Silica gel cable: -50-180℃
US $8.24/ pieceOrder (1)
FTARP08-K thermocouple model number legend
General
Model number FTARP08 series
Mounting form Flexible probe (Can be straight or bent, sheathed solid tube)
Accuracy K, E, J: ±0.4%|t|; PT100 A grade: ±(0.15℃+0.2%|t|); PT100 B grade: ±(0.3℃+0.5%|t|)
Work type Thermocouple: Ungrounded excpet 0.5mm diameter, can't assure 0.5mm diameter ungrounded
Probe material Standard is 321 stainless steel, can make to the following:
High temperature resistant: 2520, 3030, 3039
Anti-corrosion: 316L
High temperature resistant and anti-corrosion: GH3039
Probe diameter 0.5, 1, 1.5, 2, 3, 4, 5, 6, 8, 10mm, more bigger diameter more higher temperature resistant more response time and more operation life
Current: 1mm
Probe length 10-30000mm. Temperature measurement point: thermocouple:about 5mm from tip. RTD: about 5-20mm from tip
Current: 300mm
Cable material Metal screening; FEP silver plated copper, Silica gel; 2*4*0.6mm blue compensated fibreglass braided
Cable length Standard is K 1.5m, PT100 1m, can make 0.1-100m
Current: 1.5m
Matched accessory M12 mounting nutM16 mounting nut
Insulating resistance 20MΩ min
Technical article PT100 Platinum RTD temperature resistance list - 0.00385 coefficient
Thermal response time (Unit: s)
Probe diameterUngrounded thermocoupleGrounded thermocoupleRTD
Ф20.50.4---
Ф31.20.63
Ф42.50.85
Ф54.51.28
Ф66212
Ф88415
FTARP08-K thermocouple child models
No Model Number Probe Material Probe Diameter Probe Length Cabel Material Cable Length MOQ Unit Price Related Product
1 FTARP08-K-D1L50M1 321 stainless steel 1mm 50mm Metal screening 1m 1 US $4.55 Order
2 FTARP08-K-D1L100M1.5 321 stainless steel 1mm 100mm Metal screening 1.5m 1 US $4.55 Order
3 FTARP08-K-D1L150M1.5 321 stainless steel 1mm 150mm Metal screening 1.5m 1 US $4.89 Order
4 FTARP08-K-D1L200M1.5 321 stainless steel 1mm 200mm Metal screening 1.5m 1 US $5.32 Order
5 FTARP08-K-D1L200M5 321 stainless steel 1mm 200mm Metal screening 5m 1 US $6.44 Order Unfold
6 FTARP08-K-D1L300M1.5 321 stainless steel 1mm 300mm Metal screening 1.5m 1 US $6.16 Visiting...
7 FTARP08-K-D1L400M1.5 321 stainless steel 1mm 400mm Metal screening 1.5m 1 US $6.44 Order
8 FTARP08-K-D1.5L50M2 321 stainless steel 1.5mm 50mm Metal screening 2m 1 US $4.64 Order
9 FTARP08-K-D1.5L100M1.5 321 stainless steel 1.5mm 100mm Metal screening 1.5m 1 US $4.19 Order
10 FTARP08-K-D1.5L100M2 321 stainless steel 1.5mm 100mm Metal screening 2m 1 US $3.97 Order
11 FTARP08-K-D1.5L200M1.5 321 stainless steel 1.5mm 200mm Metal screening 1.5m 1 US $4.47 Order
12 FTARP08-K-D1.5L200M0.2 321 stainless steel 1.5mm 200mm Metal screening 0.2m 1 US $4.47 Order
13 FTARP08-K-D1.5L300M1.5 321 stainless steel 1.5mm 300mm Metal screening 1.5m 1 US $5.2 Order
14 FTARP08-K-D1.5L300M2 321 stainless steel 1.5mm 300mm Metal screening 2m 1 US $5.32 Order
15 FTARP08-K-D1.5L400M2 321 stainless steel 1.5mm 400mm Metal screening 2m 1 US $5.32 Order
16 FTARP08-K-D2L50M0.5 321 stainless steel 2mm 50mm Metal screening 0.5m 1 US $4.64 Order
17 FTARP08-K-D2L50M2 321 stainless steel 2mm 50mm Metal screening 2m 1 US $4.64 Order
18 FTARP08-K-D2L100M1.5 321 stainless steel 2mm 100mm Metal screening 1.5m 1 US $4.19 Order
19 FTARP08-K-D2L100M4 321 stainless steel 2mm 100mm Metal screening 4m 1 US $5.14 Order
20 FTARP08-K-D2L100M5 321 stainless steel 2mm 100mm Metal screening 5m 1 US $5.65 Order
21 FTARP08-K-D2L150M1.5 321 stainless steel 2mm 150mm Metal screening 1.5m 1 US $4.64 Order
22 FTARP08-K-D2L200M1.5 321 stainless steel 2mm 200mm Metal screening 1.5m 1 US $4.87 Order
23 FTARP08-K-D2L300M1.5 321 stainless steel 2mm 300mm Metal screening 1.5m 1 US $6.16 Order
24 FTARP08-K-D2L500M1.5 321 stainless steel 2mm 500mm Metal screening 1.5m 1 US $6.73 Order
25 FTARP08-K-D3L50M2 321 stainless steel 3mm 50mm Metal screening 2m 1 US $4.64 Order
26 FTARP08-K-D3L50M3 321 stainless steel 3mm 50mm Metal screening 3m 1 US $5.33 Order
27 FTARP08-K-D3L100M1.5 321 stainless steel 3mm 100mm Metal screening 1.5m 1 US $3.3 Order
28 FTARP08-K-D3L100M2 321 stainless steel 3mm 100mm Metal screening 2m 1 US $3.97 Order
29 FTARP08-K-D3L100M2.5 321 stainless steel 3mm 100mm Metal screening 2.5m 1 US $4.19 Order
30 FTARP08-K-D3L150M1.5 321 stainless steel 3mm 150mm Metal screening 1.5m 1 US $4.02 Order
31 FTARP08-K-D3L200M1.5 321 stainless steel 3mm 200mm Metal screening 1.5m 1 US $4.19 Order
32 FTARP08-K-D3L300M1.5 321 stainless steel 3mm 300mm Metal screening 1.5m 1 US $4.87 Order
33 FTARP08-K-D3L400M1.5 321 stainless steel 3mm 400mm Metal screening 1.5m 1 US $5.14 Order
34 FTARP08-K-D3L400M3PT 321 stainless steel 3mm 400mm Metal screening 3m with pin terminals 1 US $8.49 Order
35 FTARP08-K-D3L500M1.5 321 stainless steel 3mm 500mm Metal screening 1.5m 1 US $6.73 Order
36 FTARP08-K-D3L800M1.5 321 stainless steel 3mm 800mm Metal screening 1.5m 1 US $6.97 Order
37 FTARP08-K-D3L6000M1.5 321 stainless steel 3mm 6000mm Metal screening 1.5m 1 US $8.69 Order
38 FTARP08-K-D3L40M2 321 stainless steel 3mm 40mm Metal screening 2m 1 US $6.16 Order
39 FTARP08-K-D4L50M2 321 stainless steel 4mm 50mm Metal screening 2m 1 US $6.72 Order
40 FTARP08-K-D4L50M3 321 stainless steel 4mm 50mm Metal screening 3m 1 US $5.33 Order
41 FTARP08-K-D4L100M1.5 321 stainless steel 4mm 100mm Metal screening 1.5m 1 US $4.19 Order
42 FTARP08-K-D4L150M1.5 321 stainless steel 4mm 150mm Metal screening 1.5m 1 US $4.42 Order
43 FTARP08-K-D4L300M1.5 321 stainless steel 4mm 300mm Metal screening 1.5m 1 US $4.87 Order
44 FTARP08-K-D4L400M1.5 321 stainless steel 4mm 400mm Metal screening 1.5m 1 US $5.14 Order
45 FTARP08-K-D4L400M2 321 stainless steel 4mm 400mm Metal screening 2m 1 US $5.87 Order
46 FTARP08-K-D4L500M1.5 321 stainless steel 4mm 500mm Metal screening 1.5m 1 US $6.73 Order
47 FTARP08-K-D5L200M1.5 321 stainless steel 5mm 200mm Metal screening 1.5m 1 US $5.54 Order
48 FTARP08-K-D5L400M3 321 stainless steel 5mm 400mm Metal screening 3m 1 US $8.49 Order
49 FTARP08-K-D5L400M3PT 321 stainless steel 5mm 400mm Metal screening 3m with pin terminals 1 US $8.49 Order
50 FTARP08-K-D5L500M1.5 321 stainless steel 5mm 500mm Metal screening 1.5m 1 US $7.79 Order
51 FTARP08-K-D5L500M3 321 stainless steel 5mm 500mm Metal screening 3m 1 US $8.49 Order
52 FTARP08-K-D5L500M3PT 321 stainless steel 5mm 500mm Metal screening 3m with pin terminals 1 US $8.49 Order
53 FTARP08-K-D5L40CF2 321 stainless steel 5mm 40mm Compensated fibreglass braided 2m 1 US $11.56 Order
54 FTARP08-K-D6L500M1.5 321 stainless steel 6mm 500mm Metal screening 1.5m 1 US $7.79 Order
55 FTARP08-K-D0.5L250M5 321 stainless steel 0.5mm 250mm Metal screening 5m 1 US $27.5 Order
56 FTARP08-K-D0.5L500M5 321 stainless steel 0.5mm 500mm Metal screening 5m 1 US $33.86 Order
57 FTARP08-K-D0.5L1000M5 321 stainless steel 0.5mm 1000mm Metal screening 5m 1 US $44.02 Order
58 FTARP08-K-316LD2L100M1.5 316L stainless steel 2mm 100mm Metal screening 1.5m 1 US $4.75 Order
59 FTARP08-K-316LD2L100M2P 316L stainless steel 2mm 100mm Metal screening 2m with plug 1 US $5.87 Order
60 FTARP08-K-316LD2L100M3 316L stainless steel 2mm 100mm Metal screening 3m 1 US $5.59 Order
61 FTARP08-K-316LD2L100P3 316L stainless steel 2mm 100mm FEP silver plated copper 3m 1 US $5.59 Order
62 FTARP08-K-316LD2L200M2 316L stainless steel 2mm 200mm Metal screening 2m 1 US $7.27 Order
63 FTARP08-K-316LD2L400M2 316L stainless steel 2mm 400mm Metal screening 2m 1 US $7.27 Order
64 FTARP08-K-316LD2L400M2P 316L stainless steel 2mm 400mm Metal screening 2m with plug 1 US $7.27 Order
65 FTARP08-K-316LD2L500M2 316L stainless steel 2mm 500mm Metal screening 2m 1 US $7.27 Order
66 FTARP08-K-316LD3L100M1.5 316L stainless steel 3mm 100mm Metal screening 1.5m 1 US $4.75 Order
67 FTARP08-K-316LD3L100M2P 316L stainless steel 3mm 100mm Metal screening 2m with plug 1 US $5.87 Order
68 FTARP08-K-316LD3L100M3 316L stainless steel 3mm 100mm Metal screening 3m 1 US $5.59 Order
69 FTARP08-K-316LD3L100P3 316L stainless steel 3mm 100mm FEP silver plated copper 3m 1 US $5.59 Order
70 FTARP08-K-316LD3L200M2 316L stainless steel 3mm 200mm Metal screening 2m 1 US $7.27 Order
71 FTARP08-K-316LD3L400M2 316L stainless steel 3mm 400mm Metal screening 2m 1 US $7.27 Order
72 FTARP08-K-316LD4L200M2 316L stainless steel 4mm 200mm Metal screening 2m 1 US $7.27 Order
73 FTARP08-K-316LD4L400M2 316L stainless steel 4mm 400mm Metal screening 2m 1 US $7.27 Order
74 FTARP08-K-316LD5L200M2 316L stainless steel 5mm 200mm Metal screening 2m 1 US $7.27 Order
75 FTARP08-K-316LD5L400M2 316L stainless steel 5mm 400mm Metal screening 2m 1 US $7.27 Order
76 FTARP08-K-316LD6L400M2 316L stainless steel 6mm 400mm Metal screening 2m 1 US $7.27 Order
77 FTARP08-K-2520D2L300M2 2520 stainless steel 2mm 300mm Metal screening 2m 1 US $6.99 Order
78 FTARP08-K-2520D3L150M1.5 2520 stainless steel 3mm 150mm Metal screening 1.5m 1 US $6.3 Order
79 FTARP08-K-2520D5L600M2 2520 stainless steel 5mm 600mm Metal screening 2m 1 US $6.16 Order
80 FTARP08-K-GH3039D4L100M1.5 GH3039 stainless steel 4mm 100mm Metal screening 1.5m 1 US $8.69 Order
Packaging Details
Product quantity: 1pc
Package weight: 0.09kg
Package size: 10 x 10 x 4 cm
