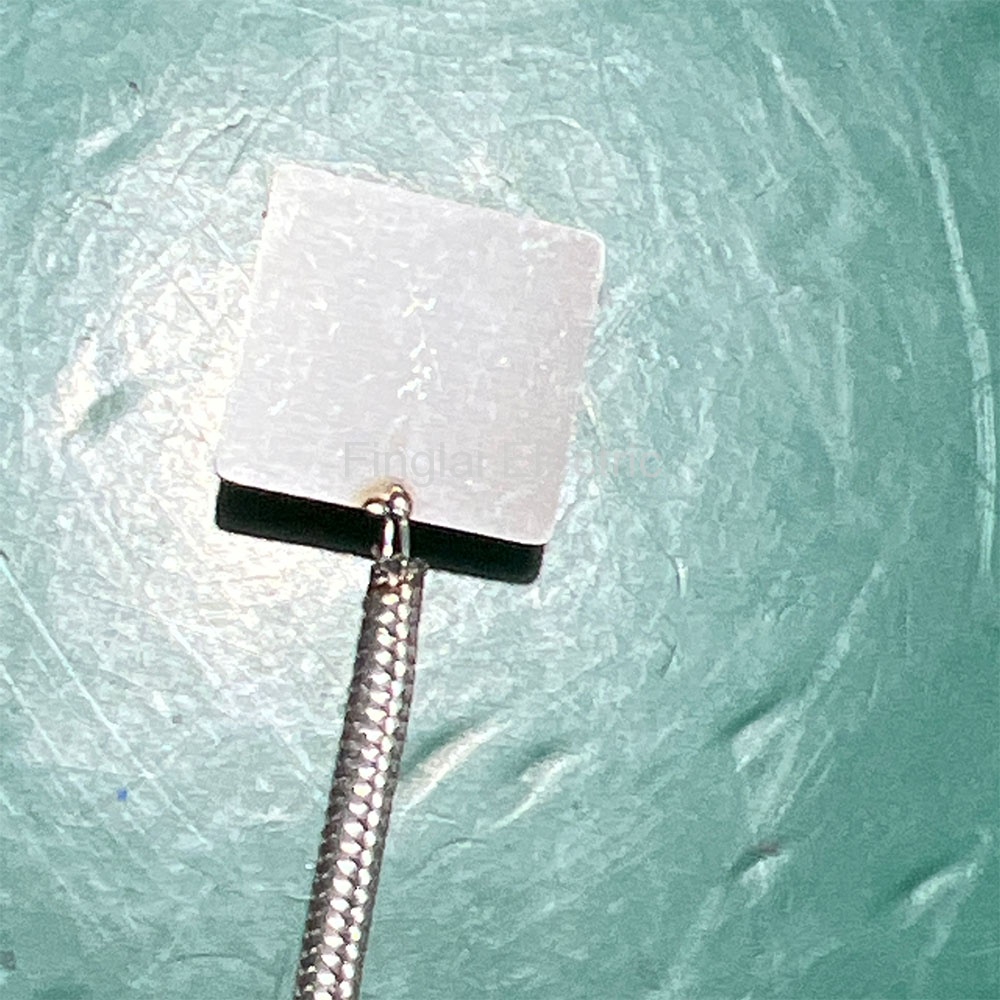

FTARL01 J type 18*19mm lamellar plate head 2m metal screening cable thermocouple temperature sensor
Product features
Mouse over to zoom in
FTARL01 J type 18*19mm lamellar plate head 2m metal screening cable thermocouple temperature sensor
Price: US $4.58 / piece
Model number: FTARL01-JL18W19M2
Product name: Temperature sensor
Cabel material:
Metal screening
Deliver to:
Shipping:
US $6.57via
Estimated Delivery Time: 9-17 days
DDP service: all applicable import duties and taxes are included in total order value.
Total price:US $11.15
Buy Now
Add to Cart
Inquire
Payment:PayPalCredit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
| Model number | Type | Measuring range | Online store:
|
| FTARL01-K | K | 0-600 ℃ | US $4.58/ pieceOrder (1) |
| FTARL01-J | J | 0-400 ℃ | Visiting... |
▇ FTARL01-J temperature sensor model number legend
▇ General
| Model number |
FTARL01 series |
| Mounting form |
Lamellar plate |
| Accuracy |
±0.75%t |
| Cable material |
Metal screening |
| Cable length |
Customer can select 0.5, 1, 1.5, 2, 3, 4, 5m or specify the cable length
Current: 2m |
| Thermal response time |
<8s |
| Insulating resistance |
5MΩ min at 20℃, RH<80% |
▇ FTARL01-J temperature sensor submodels
| No |
Model Number |
Plate Length |
Plate Width |
Cabel Material |
Cable Length |
MOQ |
Unit Price |
Related Product |
| 1 |
FTARL01-JL18W19M2 |
18mm |
19mm |
Metal screening |
2m |
1 |
US $4.58 |
Visiting... |
Packaging Details
Product quantity: 1pc
Package weight: 0.08kg
Package size: 10 x 10 x 4 cm
