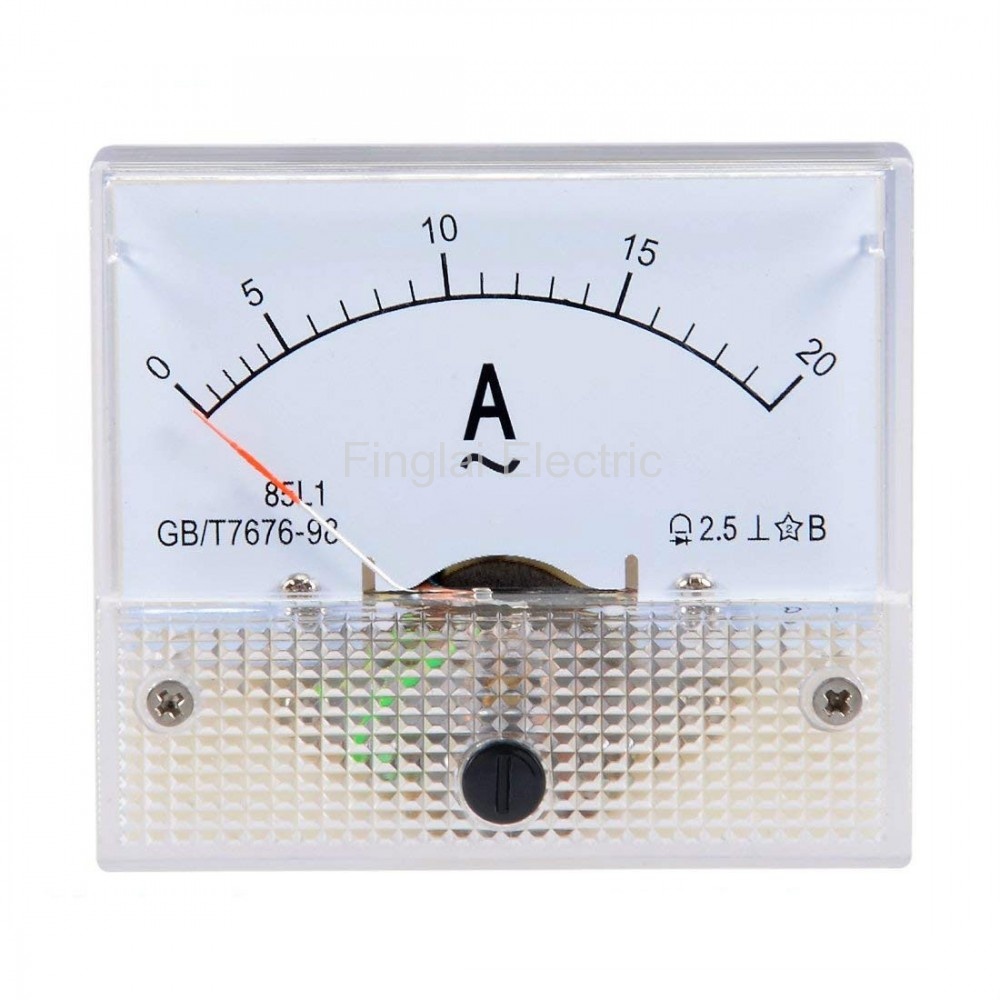

85L1-A20 64*56mm 20A pointer AC ammeter 85L1 series analog AMP meter 64x56 mm size
Product features
Mouse over to zoom in
85L1-A20 64*56mm 20A pointer AC ammeter 85L1 series analog AMP meter 64x56 mm size
Price: US $2.54 / piece
Model number: 85L1-A20
Product name: Pointer ammeter
Deliver to:
Shipping:
US $7.82via
Estimated Delivery Time: 9-17 days
Total price:US $10.36
Buy Now
Add to Cart
Inquire
Payment:PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ External dimensions and parameters
| Model number | Type | Range | Online store:
|
| 85L1-MA | AC Ammeter (mA) | Connect directly: 300, 500mA | US $2.54/ pieceOrder (2) |
| 85L1-A | AC Ammeter (A) | Connect directly: 1, 2, 3, 5, 10A, 15A, 20A, 30A, 50A
Need current transformer：30, 50, 75, 100, 150, 200, 300A | Visiting... |
| 85L1-V | AC Voltmeter | 50, 100, 150, 250, 300, 450, 500, 600, 1000V | US $2.54 - 3.76/ pieceOrder (8) |
| 85L1-HZ | Frequency meter | 45-5Hz: 100V, 220V, 380V | US $6.15/ pieceOrder (3) |
▇ 85L1-A pointer ammeter model number legend
▇ General
| Model number |
85L1 series |
| Accuracy level |
1.5/2.5 level |
| External dimensions |
64x56x60 mm |
| Perforation dimensions |
55 0.50x50 0.50 mm |
| Matched current transformer |
BH-0.66-30 |
| Resistance to mechanical forces |
Can withstand 30m/s2 wind; Impact frequency 80-120 times/min, 2h transport bumping |
| Dielectric strength |
2KV 50Hz for 1min |
| Voltage affection |
The measured tolerance don't exceed base tolerance when the measured value changed 15% |
| Work position |
Vertical |
| Operating temperature |
-20 to 50 ℃ |
| Operating humidity |
85% RH max, non-condensing |
▇ 85L1-A pointer ammeter child models
| No |
Model Number |
Measured Range |
MOQ |
Unit Price |
Related Product |
| 1 |
85L1-A1 |
1A |
1 |
US $2.54 |
Order |
| 2 |
85L1-A2 |
2A |
1 |
US $2.54 |
Order |
| 3 |
85L1-A3 |
3A |
1 |
US $2.54 |
Order |
| 4 |
85L1-A5 |
5A |
1 |
US $2.54 |
Order |
| 5 |
85L1-A10 |
10A |
1 |
US $2.54 |
Order Unfold |
| 6 |
85L1-A15 |
15A |
1 |
US $2.54 |
Order |
| 7 |
85L1-A20 |
20A |
1 |
US $2.54 |
Visiting... |
| 8 |
85L1-A30 |
30A |
1 |
US $2.54 |
Order |
| 9 |
85L1-A50 |
50A |
1 |
US $2.54 |
Order |
| 10 |
85L1-A30/5 |
30/5A |
1 |
US $2.54 |
Order |
| 11 |
85L1-A50/5 |
50/5A |
1 |
US $2.54 |
Order |
| 12 |
85L1-A75/5 |
75/5A |
1 |
US $2.54 |
Order |
| 13 |
85L1-A100/5 |
100/5A |
1 |
US $2.54 |
Order |
| 14 |
85L1-A150/5 |
150/5A |
1 |
US $2.54 |
Order |
| 15 |
85L1-A200/5 |
200/5A |
1 |
US $2.54 |
Order |
| 16 |
85L1-A300/5 |
300/5A |
1 |
US $2.54 |
Order |
| 17 |
85L1-A400/5 |
400/5A |
1 |
US $2.54 |
Order |
| 18 |
85L1-A500/5 |
500/5A |
1 |
US $2.54 |
Order |
| 19 |
85L1-A600/5 |
600/5A |
1 |
US $2.54 |
Order |
| 20 |
85L1-A750/5 |
750/5A |
1 |
US $2.54 |
Order |
| 21 |
85L1-A800/5 |
800/5A |
1 |
US $2.54 |
Order |
| 22 |
85L1-A1K/5 |
1K/5A |
1 |
US $2.54 |
Order |
| 23 |
85L1-A1.5K/5 |
1.5K/5A |
1 |
US $2.54 |
Order |
Packaging Details
Product quantity: 1pc
Package weight: 0.12kg
Package size: 10 x 10 x 6 cm
