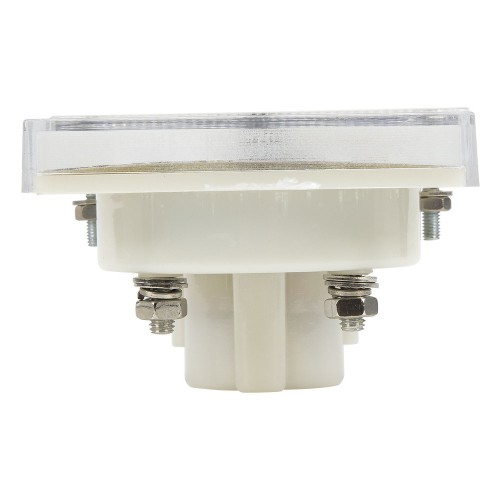

85L1-V series 64x56 mm pointer AC voltmeters analog volt meters
Main child models
Mouse over to zoom in
Product description
▇ External dimensions and parameters
| Model number | Type | Range | Online store: |
| 85L1-MA | Ammeter (mA) | Connect directly: 300, 500mA | US $2.54/ pieceOrder (2) |
| 85L1-A | Ammeter (A) | Connect directly: 1, 2, 3, 5, 10A, 15A, 20A, 30A, 50A Need current transformer：30, 50, 75, 100, 150, 200, 300A | US $2.54/ pieceOrder (16) |
| 85L1-V | Voltmeter | 50, 100, 150, 250, 300, 450, 500, 600, 1000V | Visiting... |
| 85L1-HZ | Frequency meter | 45-5Hz: 100V, 220V, 380V | US $6.15/ pieceOrder (3) |
▇ 85L1-V pointer voltmeter model number legend
85L1-V
Parent Model Number
▇ General
| Model number | 85L1 series |
| Accuracy level | 1.5/2.5 level |
| External dimensions | 64x56x60 mm |
| Perforation dimensions | 55 0.50x50 0.50 mm |
| Matched current transformer | BH-0.66-30 |
| Resistance to mechanical forces | Can withstand 30m/s2 wind; Impact frequency 80-120 times/min, 2h transport bumping |
| Dielectric strength | 2KV 50Hz for 1min |
| Voltage affection | The measured tolerance don't exceed base tolerance when the measured value changed 15% |
| Work position | Vertical |
| Operating temperature | -20 to 50 ℃ |
| Operating humidity | 85% RH max, non-condensing |
▇ 85L1-V pointer voltmeter child models
