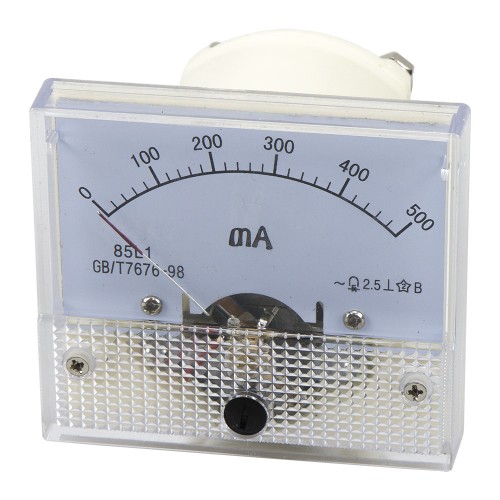

85L1-MA series pointer ammeters

Main child models
Price: US $2.54 / piece
Model number: 85L1-MA300
Product name: Pointer ammeter
Measured range:
300mA500mA
Product description
External dimensions and parameters
Model numberTypeRangeOnline store:
85L1-MAAmmeter (mA)Connect directly: 300, 500mAVisiting...
85L1-AAmmeter (A)Connect directly: 1, 2, 3, 5, 10A, 15A, 20A, 30A, 50A
Need current transformer:30, 50, 75, 100, 150, 200, 300A
US $2.54/ pieceOrder (16)
85L1-VVoltmeter50, 100, 150, 250, 300, 450, 500, 600, 1000VUS $2.54 - 3.76/ pieceOrder (8)
85L1-HZFrequency meter45-5Hz: 100V, 220V, 380VUS $6.15/ pieceOrder (3)
85L1-MA pointer ammeter model number legend
85L1-MA


Parent Model Number


Measured range


300: 300mA


500: 500mA
General
Model number 85L1 series
Accuracy level 1.5/2.5 level
External dimensions 64x56x60 mm
Perforation dimensions 55 0.50x50 0.50 mm
Matched current transformer BH-0.66-30
Resistance to mechanical forces Can withstand 30m/s2 wind; Impact frequency 80-120 times/min, 2h transport bumping
Dielectric strength 2KV 50Hz for 1min
Voltage affection The measured tolerance don't exceed base tolerance when the measured value changed 15%
Work position Vertical
Operating temperature -20 to 50 ℃
Operating humidity 85% RH max, non-condensing
85L1-MA pointer ammeter child models
No Model Number Measured Range MOQ Unit Price
1 85L1-MA300 300mA 1 US $2.54
2 85L1-MA500 500mA 1 US $2.54
