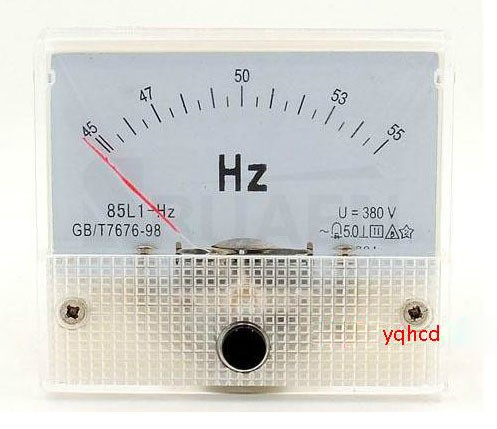

85L1-HZ series pointer frequency meters

Main child models
Price: US $6.15 / piece
Model number: 85L1-HZ45T55-100V
Product name: Pointer frequency meter
Frequency range:
45-55Hz
Voltage:
100V220V380V
Product description
External dimensions and parameters
Model numberTypeRangeOnline store:
85L1-MAAmmeter (mA)Connect directly: 300, 500mAUS $2.54/ pieceOrder (2)
85L1-AAmmeter (A)Connect directly: 1, 2, 3, 5, 10A, 15A, 20A, 30A, 50A
Need current transformer:30, 50, 75, 100, 150, 200, 300A
US $2.54/ pieceOrder (16)
85L1-VVoltmeter50, 100, 150, 250, 300, 450, 500, 600, 1000VUS $2.54 - 3.76/ pieceOrder (8)
85L1-HZFrequency meter45-5Hz: 100V, 220V, 380VVisiting...
85L1-HZ pointer frequency meter model number legend
85L1-HZ


Parent Model Number


Frequency range


45T55: 45-55Hz


Voltage


-100V: 100V


-220V: 220V


-380V: 380V
General
Model number 85L1 series
Accuracy level 1.5/2.5 level
External dimensions 64x56x60 mm
Perforation dimensions 55 0.50x50 0.50 mm
Matched current transformer BH-0.66-30
Resistance to mechanical forces Can withstand 30m/s2 wind; Impact frequency 80-120 times/min, 2h transport bumping
Dielectric strength 2KV 50Hz for 1min
Voltage affection The measured tolerance don't exceed base tolerance when the measured value changed 15%
Work position Vertical
Operating temperature -20 to 50 ℃
Operating humidity 85% RH max, non-condensing
85L1-HZ pointer frequency meter child models
No Model Number Frequency Range Voltage MOQ Unit Price
1 85L1-HZ45T55-100V 45-55Hz 100V 1 US $6.15
2 85L1-HZ45T55-220V 45-55Hz 220V 1 US $6.15
3 85L1-HZ45T55-380V 45-55Hz 380V 1 US $6.15
