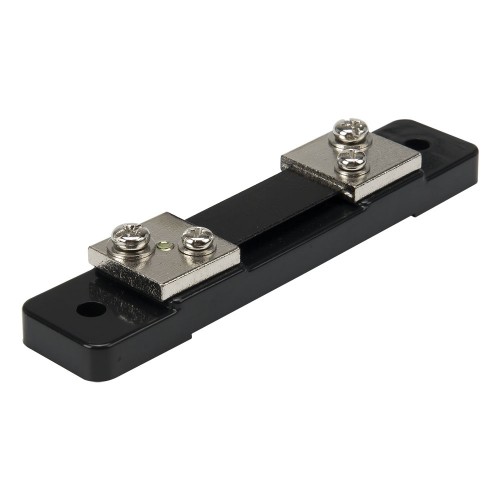

FL-2 DC 60mV 40A current shunt resistor for AMP ampere instrument
Product features
Mouse over to zoom in
FL-2 DC 60mV 40A current shunt resistor for AMP ampere instrument
Price: US $3.23 / piece
Model number: FL-2-60-40
Product name: Shunt
Deliver to:
Shipping:
US $97.27via
Estimated Delivery Time: 9-17 days
Total price:US $129.57
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and description
| Model number | Rated primary current | Rated secondary voltage | Online store: |
| FL-2-30 | 5, 10, 15, 20, 30, 50, 75, 100, 150, 200, 250, 300, 400, 500, 600, 750, 1000, 1200, 1500, 4000, 5000A | 30mV | US $2.62/ pieceOrder (1) |
| FL-2-50 | 5, 10, 15, 20, 30, 50, 75, 100, 150, 200, 250, 300, 400, 500, 600, 750, 1000, 1200, 1500, 4000, 5000A | 50mV | US $2.13/ pieceOrder (1) |
| FL-2-60 | 5, 10, 15, 20, 30, 50, 75, 100, 150, 200, 250, 300, 400, 500, 600, 750, 1000, 1200, 1500, 4000, 5000A | 60mV | Visiting... |
| FL-2-75 | 5, 10, 15, 20, 30, 50, 75, 100, 150, 200, 250, 300, 400, 500, 600, 750, 1000, 1200, 1500, 4000, 5000A | 75mV | US $1.57 - 458.43/ pieceOrder (22) |
| FL-2-150 | 5, 10, 15, 20, 30, 50, 75, 100, 150, 200, 250, 300, 400, 500, 600, 750, 1000, 1200, 1500, 4000, 5000A | 150mV | US $3.07 - 11.1/ pieceOrder (2) |
▇ FL-2-60 shunt model number legend
FL-2-60
Parent Model Number
▇ General
| Model number | FL-2 series |
| Accuracy class | 2A-4000A: 0.5 level; 5000-10000: 1 level |
| Rated secondary voltage | Default is 75mV, can make 20, 30, 50, 60, 100, 150mV |
| Matched meter | 85C1 |
| Resistance to mechanical forces | Can withstand 30m/s2 wind; Impact frequency 80-120 times/min, 6h transport bumping |
| Overload performance | 120% rated current, 2h |
| Heating (have load) | Less than 80A℃ under 50A, Less than 120℃ above 50A |
| Operating temperature | -40-60℃ |
| Operating humidity | 95% RH max (at 35℃), non-condensing |
| Alias name | FL-2 DC current diverter for ammeter |
▇ FL-2-60 shunt child models
| No | Model Number | Primary Current | MOQ | Unit Price | Related Product |
| 1 | FL-2-60-40 | 40A | 10 | US $3.23 | Visiting... |
| 2 | FL-2-60-80 | 80A | 10 | US $4.13 | Order |
| 3 | FL-2-60-120 | 120A | 10 | US $4.58 | Order |
| 4 | FL-2-60-180 | 180A | 10 | US $4.36 | Order |
| 5 | FL-2-60-400 | 400A | 1 | US $6.6 | Order Unfold |
FL-2 series current shunt resistor wiring diagram
FL-2-75 10-50A current shunt resistor drawing
FL-2-75 75-100A current shunt resistor drawing
FL-2-75 150-200A current shunt resistor drawing
FL-2-75 300A current shunt resistor drawing
FL-2-75 400A current shunt resistor drawing
FL-2-75 500A current shunt resistor drawing
FL-2-75 600A current shunt resistor drawing
FL-2-75 750A current shunt resistor drawing
FL-2-75 1000A current shunt resistor drawing
FL-2-75 1200A current shunt resistor drawing
FL-2-75 1500A current shunt resistor drawing
Packaging Details
Product quantity: 10pcs
Package weight: 3.2kg
Package size: 14.5 x 8.5 x 10.5 cm
