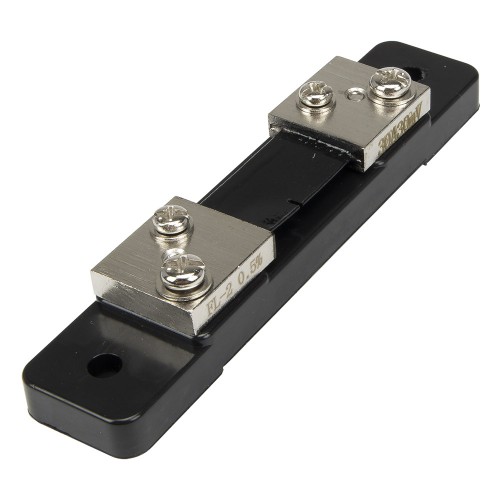

FL-2 DC 30mV 30A current shunt resistor for AMP ampere instrument
Product features
Mouse over to zoom in
FL-2 DC 30mV 30A current shunt resistor for AMP ampere instrument
Product description
▇ Model number and description
| Model number | Rated primary current | Rated secondary voltage | Online store: |
| FL-2-30 | 5, 10, 15, 20, 30, 50, 75, 100, 150, 200, 250, 300, 400, 500, 600, 750, 1000, 1200, 1500, 4000, 5000A | 30mV | Visiting... |
| FL-2-50 | 5, 10, 15, 20, 30, 50, 75, 100, 150, 200, 250, 300, 400, 500, 600, 750, 1000, 1200, 1500, 4000, 5000A | 50mV | US $2.13/ pieceOrder (1) |
| FL-2-60 | 5, 10, 15, 20, 30, 50, 75, 100, 150, 200, 250, 300, 400, 500, 600, 750, 1000, 1200, 1500, 4000, 5000A | 60mV | US $4.36 - 166.4/ pieceOrder (4) |
| FL-2-75 | 5, 10, 15, 20, 30, 50, 75, 100, 150, 200, 250, 300, 400, 500, 600, 750, 1000, 1200, 1500, 4000, 5000A | 75mV | US $1.57 - 458.43/ pieceOrder (20) |
| FL-2-150 | 5, 10, 15, 20, 30, 50, 75, 100, 150, 200, 250, 300, 400, 500, 600, 750, 1000, 1200, 1500, 4000, 5000A | 150mV | US $3.07 - 11.1/ pieceOrder (2) |
▇ FL-2-30 shunts model number legend
FL-2-30
Parent Model Number
▇ General
| Model number | FL-2 series |
| Accuracy class | 2A-4000A: 0.5 level; 5000-10000: 1 level |
| Rated secondary voltage | Default is 75mV, can make 20, 30, 50, 60, 100, 150mV |
| Matched meter | 85C1 |
| Resistance to mechanical forces | Can withstand 30m/s2 wind; Impact frequency 80-120 times/min, 6h transport bumping |
| Overload performance | 120% rated current, 2h |
| Heating (have load) | Less than 80A℃ under 50A, Less than 120℃ above 50A |
| Operating temperature | -40-60℃ |
| Operating humidity | 95% RH max (at 35℃), non-condensing |
| Alias name | FL-2 DC current diverter for ammeter |
▇ FL-2-30 shunts child models
| No | Model Number | Primary Current | MOQ | Unit Price | Related Product |
| 1 | FL-2-30-30 | 30A | 10 | US $2.62 | Visiting... |
FL-2 series current shunt resistor wiring diagram
FL-2-75 10-50A current shunt resistor drawing
FL-2-75 75-100A current shunt resistor drawing
FL-2-75 150-200A current shunt resistor drawing
FL-2-75 300A current shunt resistor drawing
FL-2-75 400A current shunt resistor drawing
FL-2-75 500A current shunt resistor drawing
FL-2-75 600A current shunt resistor drawing
FL-2-75 750A current shunt resistor drawing
FL-2-75 1000A current shunt resistor drawing
FL-2-75 1200A current shunt resistor drawing
FL-2-75 1500A current shunt resistor drawing
Packaging Details
Product quantity: 10pcs
Package weight: 1kg
Package size: 21 x 11 x 14 cm
