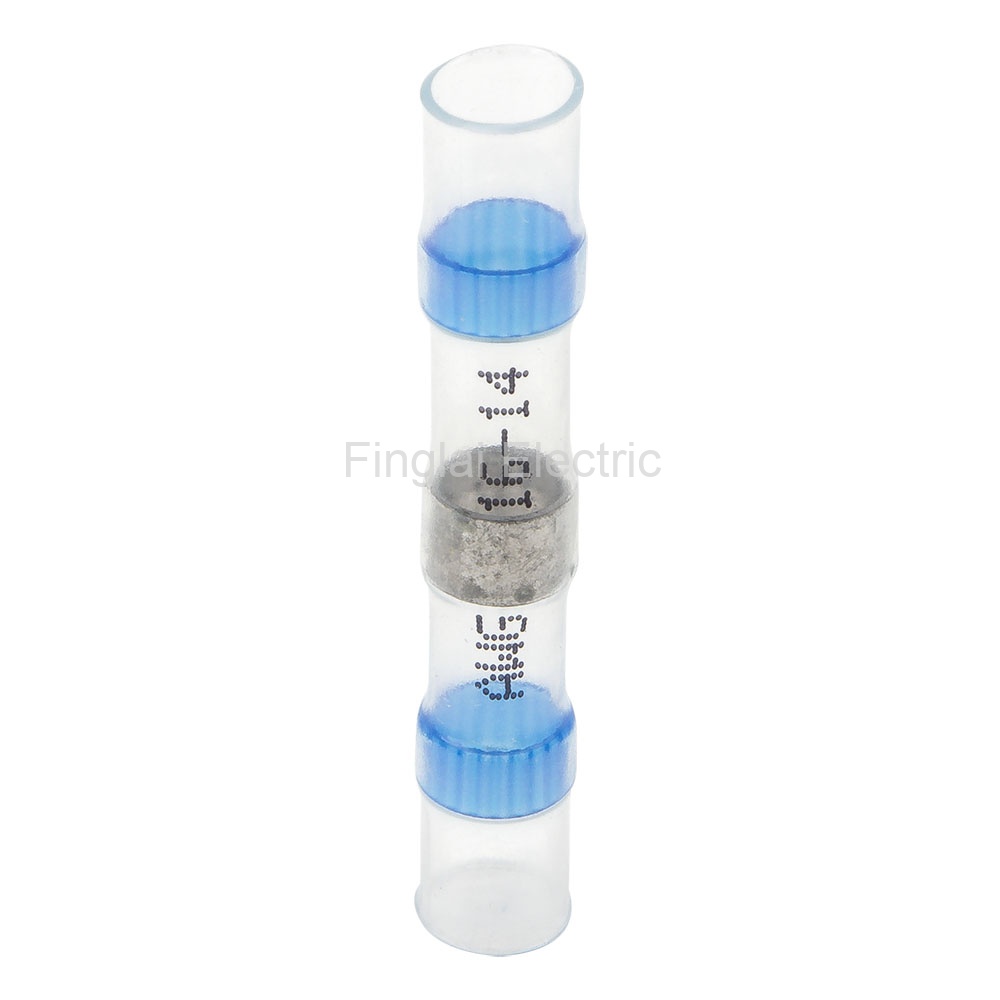

SST-S31 heat shrinkable terminal
Product features
Price: US $0.16 / piece
Model number: SST-S31
Product name: Heat shrinkable terminal
Deliver to:
Shipping:
US $5.32via
Estimated Delivery Time: 12-17 days
Total price:US $8.52
Buy Now
Add to Cart
Inquire
Payment:PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters (Unit: mm)
| Model number | A (min) | L (min) | B (min) | B and C (max) | C (max) | A.W.G | A.W.G (mm2) | Color | Online store:
|
| SST-S11 | 1.9 | 26 | 1 | 1.9 | 0.76 | 26-24 | 0.25-0.34 | White | US $0.13/ pieceOrder |
| SST-S21 | 2.7 | 40 | 1.4 | 2.7 | 1.2 | 22-18 | 0.5-1.0 | Red | US $0.15/ pieceOrder |
| SST-S31 | 4.5 | 40 | 2.3 | 4.5 | 2 | 16-14 | 1.5-2.5 | Blue | Visiting... |
| SST-S41 | 6 | 40 | 3.7 | 6 | 3.4 | 12-10 | 4.0-6.0 | Yellow | US $0.18/ pieceOrder |
▇ General
| Model number |
SST series |
| Shrink ratio |
2:1 |
| Operating temperature |
-55℃ to 125℃ |
| Min full shrinkable temperature |
160℃ |
| Start shrinkable temperature |
80℃ |
| Dielectric strength |
1KV |
| IP Rating |
IP67 |
| Solder melting temperature |
138℃ |
| Solder completely melt temperature |
160℃ |
Packaging Details
Product quantity: 20pcs
Package weight: 0.05kg
Package size: 10 x 10 x 2 cm
