S-25-15 25W DC 15V 1.7A output AC 110V/220V input single group switching power supply
Product features
Mouse over to zoom in

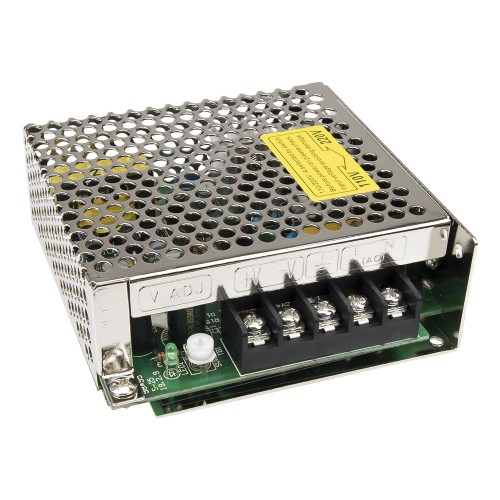

S-25-15 25W DC 15V 1.7A output AC 110V/220V input single group switching power supply
Product description
▇ Model number and parameters
Model number | S-25-5 | S-25-12 | S-25-15 | S-25-24 |
Online store: | US $6.33/ pieceOrder | US $6.33/ pieceOrder | Visiting... | US $6.33/ pieceOrder |
DC output voltage | 5V | 12V | 15V | 24V |
Output voltage error (Note: 2) | ±2% | ±1% | ±1% | ±1% |
Rated output current | 5A | 2.1A | 1.7A | 1.1A |
Output current rage | 0-5A | 0-2.1A | 0-1.7A | 0-1.1A |
Wave and noise (Note: 3) | 100mVp-p | 50Vp-p | 50mVp-p | 50mVp-p |
Inlets tability (Note: 4) | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
Load stability (Note: 5) | ±1% | ±0.5% | ±0.5% | ±0.5% |
DC output power | 25W | 25.2W | 25.5W | 26.4W |
Effciency | 70% | 76% | 77% | 80% |
Adjustable range for DC voltage | +10,-5% | ±10% | ±10% | ±10% |
▇ General
Model number | S-25 series |
AC input voltage range | 85-132VAC/170-264VAC, selected by switch, 47-63Hz; 240-370VDC |
Input current | 0.6A/115V, 0.35A/230V |
AC inrush current | Cold-start current: 30A/115V, 60A/230V |
Leakage current | 0.75mA/240VAC max |
Overload proctection | 105%-150% Type:Foldback current limiting Rest:auto-recovery |
Over-voltage protection | 105%-135% Type:hiccup mode Rest:auto-recovery |
Temperature coefficient | ±0.03%/℃ (0-50℃) |
Setup rise hold up time | 800ms,50ms,10ms/115VAC 300ms,50ms,80ms/230VAC |
Vibration | 10-500HZ,2G 10min/1cycle, Periodfor 60min, Each axes |
Dielectric strength | 1.5KVac, 50/60 Hz for 1 min between input and output 1.5KVac, 50/60 Hz for 1 min between input and enclosure 0.5KVac, 50/60 Hz for 1 min between output and enclosure |
Isolation resistance | 100MΩ min. at 500 VDC |
Working temperature humidity | -10℃-60℃ (Refer to output characteristic figure), 20%-90%RH |
Store temperature humidity | -20℃-85℃, 10%-95%RH |
External dimension | 99x97x35 mm |
Weight | 0.37kg |
Safety standards | UL1012 TUV refer to 6050 (IEC,UL1950) |
EMC standards | CISPR22(refer to 55022), IEC801-2,3,4IEC555-2 |
Note | 1. The testing condition for the above paramenter is: 230VAC input, rated load, 25℃, Humidity 70%RH. 2. Error, include the setting error, line stability and load stability. (Note:5) 3. Wave test: adopting A12 double wire for 20MHZ,and 0.1uF-47uF capacitor short-circuit for interrupting. 4. Inlet voltage stability test: when is over load,the lowest voltage of enter is representative to the highest voltage 5. Load stability test: The load is from 0% to 100%. |
S-25 series general switching power supply mounting dimensions
Packaging Details
Product quantity: 1pc
Package weight: 0.47kg
Package size: 14.5 x 8.5 x 10.5 cm
