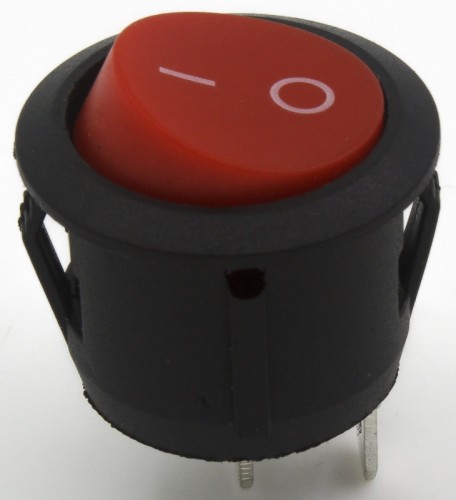

KCD1-101-5 series perforate diameter 20 mm 2 pin ON - OFF round rocker switches
Main child models
Price: US $0.1 / piece
Model number: KCD1-101-5-R
Product name: Rocker switch
Product description
▇ Model number and parameters
| Model number | Same model | Action method | Contact form | Color code | Lamp voltage | Online store: |
| KCD1-101-5 | KCD1-105 | Self-lock | ON-OFF | R, B, T, W | Visiting... | |
| KCD1-102-5 | KCD1-105 | Self-lock | ON-ON | R, B, T | US $0.13/ pieceOrder (3) | |
| KCD1-102N-5 | KCD1-105N | Self-lock | ON-OFF | R, G, Y, A | 12V LED color ray, 220V yellow ray | US $0.16 - 0.21/ pieceOrder (8) |
| KCD1-102N2-5 | KCD1-105N | Self-lock | ON-OFF | R, G, Y, A | 12V LED color ray, 220V yellow ray | US $0.31/ pieceOrder (8) |
| KCD1-103-5 | KCD1-105 | Self-lock | ON-OFF-ON | R, B | US $0.14/ pieceOrder (2) | |
| KCD1-101-8 | Self-lock | ON-OFF | R, B | US $0.11/ pieceOrder (2) | ||
| KCD1-102N-8 | Self-lock | ON-OFF | R, G, Y, A | 12V LED color ray, 220V yellow ray | US $0.16 - 0.21/ pieceOrder (8) |
▇ KCD1-101-5 rocker switch model number legend
KCD1-101-5
Parent Model Number
▇ General
| Model number | KCD1 φ20mm series |
| Perforate dimensions | φ20 0.50 mm |
| Contact rating | 6A@250VAC |
| Contact resistance | 50mΩ max |
| Insulation resistance | 100MΩ min at 500Vdc |
| Dielectric strength | 1500Vac, 50Hz for 1min |
| Electrical Life | 10000 cycles |
| Matched plug spring terminal | 4.8mm mounting size with jacket |
| Matched waterproof cap | FJ20 |
| Operating temperature | -25-85 ℃ |
| PCS/Bag | 100 |
▇ KCD1-101-5 rocker switch child models
| No | Model Number | Color | MOQ | Unit Price |
| 1 | KCD1-101-5-R | Red | 10 | US $0.1 |
| 2 | KCD1-101-5-B | Black | 10 | US $0.1 |
| 3 | KCD1-101-5-T | Transparent crystal | 10 | US $0.11 |
| 4 | KCD1-101-5-W | White (full) | 10 | US $0.13 |
KCD1-101-5 rocker switch drawing
KCD1-101-8 rocker switch drawing
