KCD1-103R black A type perforate 19 x 13 mm 3 pins (ON) - OFF - (ON) rocker switch
Product features
Mouse over to zoom in
KCD1-103R black A type perforate 19 x 13 mm 3 pins (ON) - OFF - (ON) rocker switch
Price: US $0.27 / piece
Model number: KCD1-103R-BA
Product name: Rocker switch
Color:
BlackDeliver to:
Shipping:
US $5.53via
Estimated Delivery Time: 12-17 days
Total price:US $8.23
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
| Model number | Same model | Action method | Contact form | Color code | Lamp voltage | Online store: |
| KCD1-101 | Self-lock | ON-OFF | R, B | US $0.08 - 0.16/ pieceOrder (5) | ||
| KCD1-102 | Self-lock | ON-ON | R, B | US $0.1 - 0.14/ pieceOrder (4) | ||
| KCD1-102N | KCD1-101N | Self-lock | ON-OFF | R, G | 220V | US $0.17/ pieceOrder (2) |
| KCD1-103 | Self-lock | ON-OFF-ON | R, B, W | US $0.11 - 0.19/ pieceOrder (3) | ||
| KCD1-103R | Reset | (ON)-OFF-(ON) | B | Visiting... | ||
| KCD1-201 | KCD1-104 | Self-lock | ON-OFF | R, B | US $0.14/ pieceOrder (2) | |
| KCD1-201N | KCD1-104N | Self-lock | ON-OFF | R, G | 220V | US $0.17/ pieceOrder (2) |
| KCD1-202 | Self-lock | ON-ON | R, B | US $0.18/ pieceOrder (2) | ||
| KCD1-203 | Self-lock | ON-OFF-ON | R, B | US $0.21/ pieceOrder (2) |
▇ KCD1-103R rocker switch model number legend
▇ General
| Model number | KCD1 19x13mm series |
| Perforate dimensions | 19 0.50x13 0.50 mm |
| Contact rating | 6A@250VAC |
| Contact resistance | 50mΩ max |
| Insulation resistance | 100MΩ min at 500Vdc |
| Dielectric strength | 1500Vac, 50Hz for 1min |
| Electrical Life | 10000 cycles |
| Matched plug spring terminal | 4.8mm mounting size with jacket |
| Matched waterproof cap | FJ1913 |
| Operating temperature | -25-85 ℃ |
| PCS/Bag | 100 |
▇ KCD1-103R rocker switch child models
| No | Model Number | Color | Button Form | MOQ | Unit Price | Related Product |
| 1 | KCD1-103R-BA | Black | A type | 10 | US $0.27 | Visiting... |
| 2 | KCD1-103R-BB | Black | B type | 10 | US $0.27 | Order |
KCD1-101 rocker switch drawing
KCD1-201 rocker switch drawing

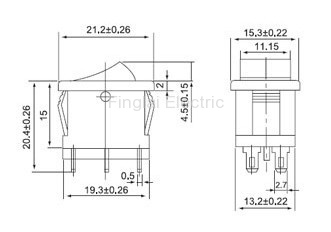

KCD1-202, KCD1-203 rocker switch drawing
Packaging Details
Product quantity: 10pcs
Package weight: 0.06kg
Package size: 10 x 10 x 3 cm
