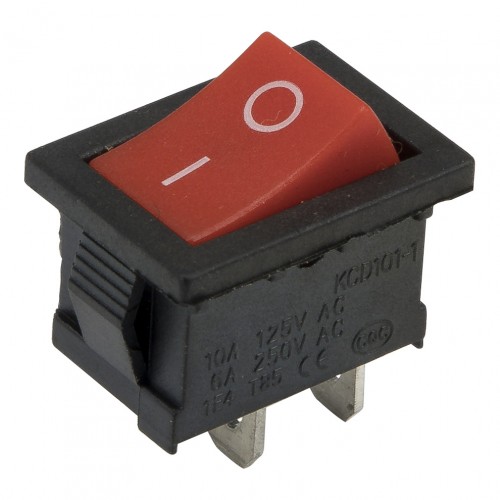

KCD1-101 series perforate 19 x 13 mm 2 pins ON - OFF rocker switches
Main child models
Price: US $0.08 / piece
Model number: KCD1-101-UR
Product name: Rocker switch
Product description
▇ Model number and parameters
| Model number | Same model | Action method | Contact form | Color code | Lamp voltage | Online store: |
| KCD1-101 | Self-lock | ON-OFF | R, B | Visiting... | ||
| KCD1-102 | Self-lock | ON-ON | R, B | US $0.1 - 0.14/ pieceOrder (4) | ||
| KCD1-102N | KCD1-101N | Self-lock | ON-OFF | R, G | 220V | US $0.17/ pieceOrder (2) |
| KCD1-103 | Self-lock | ON-OFF-ON | R, B, W | US $0.11 - 0.19/ pieceOrder (3) | ||
| KCD1-103R | Reset | (ON)-OFF-(ON) | B | US $0.27/ pieceOrder (2) | ||
| KCD1-201 | KCD1-104 | Self-lock | ON-OFF | R, B | US $0.14/ pieceOrder (2) | |
| KCD1-201N | KCD1-104N | Self-lock | ON-OFF | R, G | 220V | US $0.17/ pieceOrder (2) |
| KCD1-202 | Self-lock | ON-ON | R, B | US $0.18/ pieceOrder (2) | ||
| KCD1-203 | Self-lock | ON-OFF-ON | R, B | US $0.21/ pieceOrder (2) |
▇ KCD1-101 rocker switch model number legend
▇ General
| Model number | KCD1 19x13mm series |
| Perforate dimensions | 19 0.50x13 0.50 mm |
| Contact rating | 6A@250VAC |
| Contact resistance | 50mΩ max |
| Insulation resistance | 100MΩ min at 500Vdc |
| Dielectric strength | 1500Vac, 50Hz for 1min |
| Electrical Life | 10000 cycles |
| Matched plug spring terminal | 4.8mm mounting size with jacket |
| Matched waterproof cap | FJ1913 |
| Operating temperature | -25-85 ℃ |
| PCS/Bag | 100 |
▇ KCD1-101 rocker switch child models
| No | Model Number | Quality | Color | MOQ | Unit Price |
| 1 | KCD1-101-UR | Usual quality | Red | 10 | US $0.08 |
| 2 | KCD1-101-UB | Usual quality | Black | 10 | US $0.08 |
| 3 | KCD1-101-HR | High quality | Red | 10 | US $0.11 |
| 4 | KCD1-101-HB | High quality | Black | 10 | US $0.11 |
| 5 | KCD1-101-HW | High quality | Full white | 10 | US $0.16 |
KCD1-101 rocker switch drawing
KCD1-201 rocker switch drawing
KCD1-202, KCD1-203 rocker switch drawing
