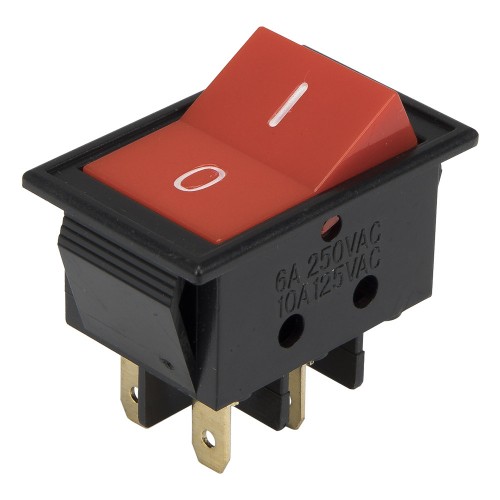

KCD4-201-10 red perforate 24 x 35 mm 4 pins ON - OFF rocker switch
Product features
Mouse over to zoom in
KCD4-201-10 red perforate 24 x 35 mm 4 pins ON - OFF rocker switch
Price: US $0.23 / piece
Model number: KCD4-201-10-R
Product name: Rocker switch
Deliver to:
Shipping:
US $6.32via
Estimated Delivery Time: 9-15 days
Total price:US $7.47
Buy Now
Add to Cart
Inquire
Payment:PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
| Model number | Same model | Action method | Contact form | Contact rating | Color code | Lamp voltage | Remark | Perforate dimensions | Online store:
|
| KCD1-101-10 | KCD1-110 | Self-lock | ON-OFF | 6A@250VAC | R,B | | | 19 0.50x7 0.50 mm | US $0.11/ pieceOrder (2) |
| KCD1-105-3 | | Self-lock | ON-OFF-ON | 6A@250VAC | R,B | | | 21 0.50x14 0.50 mm | US $0.13/ pieceOrder (2) |
| KCD2-101 | | Self-lock | ON-OFF | 6A@250VAC | R,B | | | 29 0.50x13 0.50 mm | US $0.13/ pieceOrder (2) |
| KCD2-102 | | Self-lock | ON-ON | 15A@250VAC | R,B | | | 29 0.50x13 0.50 mm | US $0.14/ pieceOrder (2) |
| KCD4-201-10 | HJ3-10/2 | Self-lock | ON-OFF | 6A@250VAC | R | | | 24 0.50x35 0.50 mm | Visiting... |
| KCD4-2X1N | | Self-lock | ON-OFF | 16A@250VAC | R, G, Y, A | 220V | | 29 0.50x22 0.50 mm | US $0.73 - 0.75/ pieceOrder (9) |
| KCD4-2X1NR | | Self-lock | (ON)-OFF | 16A@250VAC | R, G | 220V | | 29 0.50x22 0.50 mm | US $0.78 - 1.57/ pieceOrder (3) |
| KCD7-301 | | Self-lock | ON-OFF | 16A@250VAC | R,B | | | 28 0.50x31 0.50 mm | US $1.15/ pieceOrder (2) |
| KCD7-303 | | Self-lock | ON-OFF-ON | 16A@250VAC | B | | | 28 0.50x31 0.50 mm | US $1.15/ pieceOrder (1) |
| KCD16-103 | RC-2 | Self-lock | | 10A@250VAC | R,B | | Can add IN5408 diode | | US $0.47 - 0.57/ pieceOrder (4) |
▇ KCD4-201-10 rocker switch model number legend
▇ General
| Model number |
KCD other mm series |
| Contact resistance |
50mΩ max |
| Insulation resistance |
100MΩ min at 500Vdc |
| Dielectric strength |
1500Vac, 50Hz for 1min |
| Electrical Life |
10000 cycles |
| Operating temperature |
-25-85 ℃ |
▇ KCD4-201-10 rocker switch child models
| No |
Model Number |
Color |
MOQ |
Unit Price |
Related Product |
| 1 |
KCD4-201-10-R |
Red |
5 |
US $0.23 |
Visiting... |
KCD1-101-10 rocker switch drawing
KCD1-105-3 ellipse rocker switch drawing
KCD2-102 rocker switch drawing
KCD7-303 rocker switch drawing
KCD16-103 rocker switch drawing
Packaging Details
Product quantity: 5pcs
Package weight: 0.12kg
Package size: 10 x 10 x 6 cm
