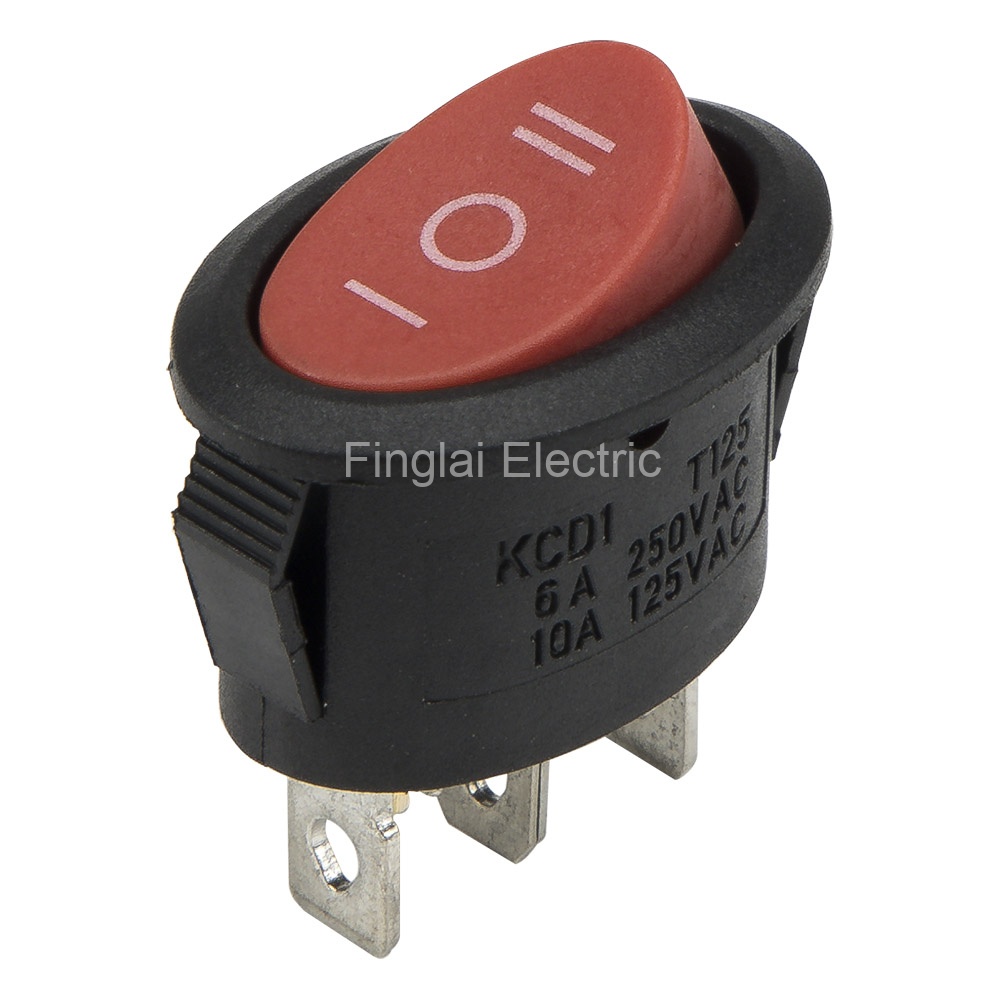

KCD1-105-3 series perforate 21 x 14 mm 3 pins ON - OFF - ON ellipse rocker switches
Main child models
Mouse over to zoom in
Price: US $0.13 / piece
Model number: KCD1-105-3-B
Product name: Rocker switch
Product description
▇ Model number and parameters
| Model number | Same model | Action method | Contact form | Contact rating | Color code | Lamp voltage | Remark | Perforate dimensions | Online store: |
| KCD1-101-10 | KCD1-110 | Self-lock | ON-OFF | 6A@250VAC | R,B | 19 0.50x7 0.50 mm | US $0.11/ pieceOrder (2) | ||
| KCD1-105-3 | Self-lock | ON-OFF-ON | 6A@250VAC | R,B | 21 0.50x14 0.50 mm | Visiting... | |||
| KCD2-101 | Self-lock | ON-OFF | 6A@250VAC | R,B | 29 0.50x13 0.50 mm | US $0.13/ pieceOrder (2) | |||
| KCD2-102 | Self-lock | ON-ON | 15A@250VAC | R,B | 29 0.50x13 0.50 mm | US $0.14/ pieceOrder (2) | |||
| KCD4-201-10 | HJ3-10/2 | Self-lock | ON-OFF | 6A@250VAC | R | 24 0.50x35 0.50 mm | US $0.23/ pieceOrder (1) | ||
| KCD4-2X1N | Self-lock | ON-OFF | 16A@250VAC | R, G, Y, A | 220V | 29 0.50x22 0.50 mm | US $0.73 - 0.75/ pieceOrder (9) | ||
| KCD4-2X1NR | Self-lock | (ON)-OFF | 16A@250VAC | R, G | 220V | 29 0.50x22 0.50 mm | US $0.78 - 1.57/ pieceOrder (3) | ||
| KCD7-301 | Self-lock | ON-OFF | 16A@250VAC | R,B | 28 0.50x31 0.50 mm | US $1.15/ pieceOrder (2) | |||
| KCD7-303 | Self-lock | ON-OFF-ON | 16A@250VAC | B | 28 0.50x31 0.50 mm | US $1.15/ pieceOrder (1) | |||
| KCD16-103 | RC-2 | Self-lock | 10A@250VAC | R,B | Can add IN5408 diode | US $0.47 - 0.57/ pieceOrder (4) |
▇ KCD1-105-3 rocker switch model number legend
▇ General
| Model number | KCD other mm series |
| Contact resistance | 50mΩ max |
| Insulation resistance | 100MΩ min at 500Vdc |
| Dielectric strength | 1500Vac, 50Hz for 1min |
| Electrical Life | 10000 cycles |
| Operating temperature | -25-85 ℃ |
▇ KCD1-105-3 rocker switch child models
| No | Model Number | Color | MOQ | Unit Price |
| 1 | KCD1-105-3-R | Red | 10 | US $0.13 |
| 2 | KCD1-105-3-B | Black | 10 | US $0.13 |
KCD1-101-10 rocker switch drawing
KCD1-105-3 ellipse rocker switch drawing
KCD2-102 rocker switch drawing
KCD7-303 rocker switch drawing
KCD16-103 rocker switch drawing
