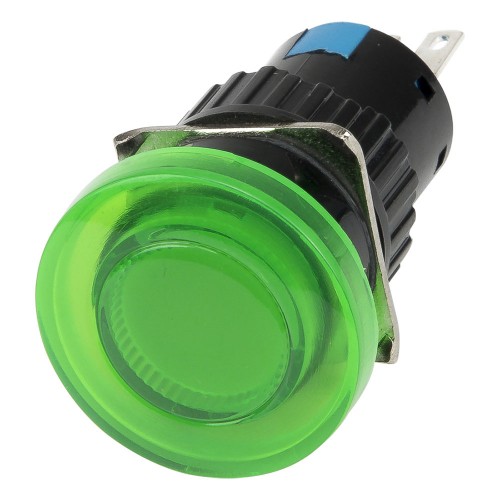

SA16Y-11MZ green 16mm self-lock ON - OFF round push button switch pushbutton
Product features
Mouse over to zoom in
SA16Y-11MZ green 16mm self-lock ON - OFF round push button switch pushbutton
Price: US $0.95 / piece
Model number: SA16Y-11MZ-G
Product name: Push button
Deliver to:
Shipping:
US $5.6via
Estimated Delivery Time: 9-15 days
Total price:US $10.35
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
| Model number | Head shape | Action method | Contact form | Contact rating | Color code | Lamp voltage | Online store: |
| SA16-11 | Round | Self-lock, reset | SPDT, 3 pins | 3A@250VAC | R, G | ||
| SA16-11D | Round | Self-lock, reset | SPDT, 5 pins | 3A@250VAC | R, G | 6,12,24,110,220V | |
| SA16-22 | Round | Self-lock, reset | DPDT, 6 pins | 3A@250VAC | R, G | ||
| SA16-22D | Round | Self-lock, reset | DPDT, 8 pins | 3A@250VAC | R, G | 6,12,24,110,220V | |
| SA16-11Y | Round, key | Self-lock | ON-OFF | 3A@250VAC | US $1.29/ pieceOrder | ||
| SA16-11X2 | Round, turn | Self-lock | ON-OFF | 1A@250VAC | US $1.07/ pieceOrder | ||
| SA16-11ZS | Emergency stop | US $1.18/ pieceOrder | |||||
| SA16Y-11MZ | Round | Self-lock | ON-OFF | 3A@250VAC | R, G | Visiting... | |
| SA16Y-22X3 | Round, turn | Self-lock | ON-OFF-ON | 3A@250VAC | US $1.29/ pieceOrder | ||
| SA16F-11 | Square | Self-lock, reset | SPDT, 3 pins | 3A@250VAC | R, G, Y, A, W, B | US $0.84 - 0.95/ pieceOrder (12) | |
| SA16F-11D | Square | Self-lock, reset | SPDT, 5 pins | 3A@250VAC | R, G, Y, A, W | 6,12,24,110,220V | US $1.07/ pieceOrder (25) |
| SA16F-22 | Square | Self-lock, reset | DPDT, 6 pins | 3A@250VAC | R, G, Y, A, W, B | ||
| SA16F-22D | Square | Self-lock, reset | DPDT, 8 pins | 3A@250VAC | R, G, Y, A, W | 6,12,24,110,220V | |
| SA16F-11X2 | Square, turn | Self-lock | ON-OFF | 3A@250VAC | US $1.07/ pieceOrder | ||
| SA16J-11 | Rectangle | Self-lock, reset | SPDT, 3 pins | 3A@250VAC | R, G, Y, A, W, B | ||
| SA16J-11D | Rectangle | Self-lock, reset | SPDT, 5 pins | 3A@250VAC | R, G, Y, A, W | 6,12,24,110,220V | US $0.89 - 1/ pieceOrder (50) |
| SA16J-22 | Rectangle | Self-lock, reset | DPDT, 6 pins | 3A@250VAC | R, G, Y, A, W, B | ||
| SA16J-22D | Rectangle | Self-lock, reset | DPDT, 8 pins | 3A@250VAC | R, G, Y, A, W | 1.8, 3.8, 6,12,24,110,220V | US $1.07/ pieceOrder (30) |
| SA16J-22X2 | Rectangle, turn | Self-lock | ON-OFF-ON | 3A@250VAC | US $1.29/ pieceOrder | ||
| SA16J-22X3 | Rectangle, turn | Self-lock | ON-OFF-ON | 3A@250VAC | US $1.29/ pieceOrder |
▇ SA16Y-11MZ push button model number legend
▇ General
| Model number | 16mm SA series |
| Mounting dimensions | φ16 |
| Contact resistance | 50mΩ max |
| Insulation resistance | 100MΩ min |
| Dielectric strength | 2000Vac, 50Hz for 1min |
| Mechanical Life | 2x105 cycles |
| Electrical life | 5x104 cycles |
| IP degree | IP40 |
| Operation temperature | -25 to 55℃ |
| Operation humidity | 45 to 85% RH, no-condensation |
| Alias name | 16mm SA series push button switch, pushbutton |
▇ SA16Y-11MZ push button child models
| No | Model Number | Color | MOQ | Unit Price | Related Product |
| 1 | SA16Y-11MZ-R | Red | 5 | US $0.95 | Order |
| 2 | SA16Y-11MZ-G | Green | 5 | US $0.95 | Visiting... |
Packaging Details
Product quantity: 5pcs
Package weight: 0.08kg
Package size: 10 x 10 x 4 cm
