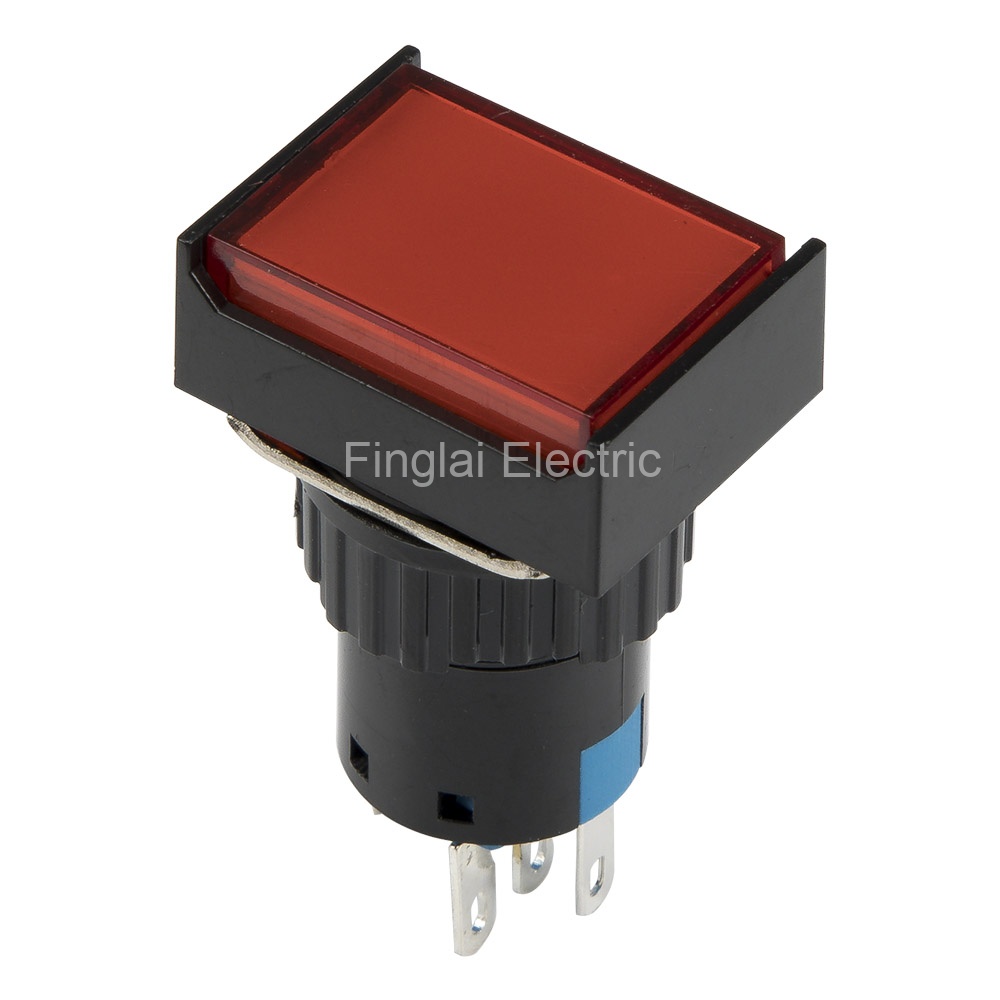

SA16J-11D series 16mm SPDT 5 pins rectangle push button switch pushbutton with lamp
Main child models
Mouse over to zoom in
Product description
▇ Model number and parameters
Model number | Head shape | Action method | Contact form | Contact rating | Color code | Lamp voltage | Online store: |
SA16-11 | Round | Self-lock, reset | SPDT, 3 pins | 3A@250VAC | R, G | ||
SA16-11D | Round | Self-lock, reset | SPDT, 5 pins | 3A@250VAC | R, G | 6,12,24,110,220V | |
SA16-22 | Round | Self-lock, reset | DPDT, 6 pins | 3A@250VAC | R, G | ||
SA16-22D | Round | Self-lock, reset | DPDT, 8 pins | 3A@250VAC | R, G | 6,12,24,110,220V | |
SA16-11Y | Round, key | Self-lock | ON-OFF | 3A@250VAC | US $1.29/ pieceOrder | ||
SA16-11X2 | Round, turn | Self-lock | ON-OFF | 1A@250VAC | US $1.07/ pieceOrder | ||
SA16-11ZS | Emergency stop | US $1.18/ pieceOrder | |||||
SA16Y-11MZ | Round | Self-lock | ON-OFF | 3A@250VAC | R, G | US $0.95/ pieceOrder (2) | |
SA16Y-22X3 | Round, turn | Self-lock | ON-OFF-ON | 3A@250VAC | US $1.29/ pieceOrder | ||
SA16F-11 | Square | Self-lock, reset | SPDT, 3 pins | 3A@250VAC | R, G, Y, A, W, B | US $0.84 - 0.95/ pieceOrder (12) | |
SA16F-11D | Square | Self-lock, reset | SPDT, 5 pins | 3A@250VAC | R, G, Y, A, W | 6,12,24,110,220V | US $1.07/ pieceOrder (25) |
SA16F-22 | Square | Self-lock, reset | DPDT, 6 pins | 3A@250VAC | R, G, Y, A, W, B | ||
SA16F-22D | Square | Self-lock, reset | DPDT, 8 pins | 3A@250VAC | R, G, Y, A, W | 6,12,24,110,220V | |
SA16F-11X2 | Square, turn | Self-lock | ON-OFF | 3A@250VAC | US $1.07/ pieceOrder | ||
SA16J-11 | Rectangle | Self-lock, reset | SPDT, 3 pins | 3A@250VAC | R, G, Y, A, W, B | ||
SA16J-11D | Rectangle | Self-lock, reset | SPDT, 5 pins | 3A@250VAC | R, G, Y, A, W | 6,12,24,110,220V | Visiting... |
SA16J-22 | Rectangle | Self-lock, reset | DPDT, 6 pins | 3A@250VAC | R, G, Y, A, W, B | ||
SA16J-22D | Rectangle | Self-lock, reset | DPDT, 8 pins | 3A@250VAC | R, G, Y, A, W | 1.8, 3.8, 6,12,24,110,220V | US $1.07/ pieceOrder (30) |
SA16J-22X2 | Rectangle, turn | Self-lock | ON-OFF-ON | 3A@250VAC | US $1.29/ pieceOrder | ||
SA16J-22X3 | Rectangle, turn | Self-lock | ON-OFF-ON | 3A@250VAC | US $1.29/ pieceOrder |
▇ SA16J-11D push button model number legend
SA16J-11D
Parent Model Number
▇ General
Model number | 16mm SA series |
Mounting dimensions | φ16 |
Contact resistance | 50mΩ max |
Insulation resistance | 100MΩ min |
Dielectric strength | 2000Vac, 50Hz for 1min |
Mechanical Life | 2x105 cycles |
Electrical life | 5x104 cycles |
IP degree | IP40 |
Operation temperature | -25 to 55℃ |
Operation humidity | 45 to 85% RH, no-condensation |
Alias name | 16mm SA series push button switch, pushbutton |
▇ SA16J-11D push button child models
No | Model Number | Action Method | Color | Lamp Voltage | MOQ | Unit Price |
1 | SA16J-11DB-R6V | Reset | Red | 6V | 5 | US $0.89 |
2 | SA16J-11DB-R12V | Reset | Red | 12V | 5 | US $0.89 |
3 | SA16J-11DB-R24V | Reset | Red | 24V | 5 | US $0.89 |
4 | SA16J-11DB-R110V | Reset | Red | 110V | 5 | US $0.89 |
5 | SA16J-11DB-R220V | Reset | Red | 220V | 5 | US $0.89 |
6 | SA16J-11DB-G6V | Reset | Green | 6V | 5 | US $0.89 |
7 | SA16J-11DB-G12V | Reset | Green | 12V | 5 | US $0.89 |
8 | SA16J-11DB-G24V | Reset | Green | 24V | 5 | US $0.89 |
9 | SA16J-11DB-G110V | Reset | Green | 110V | 5 | US $0.89 |
10 | SA16J-11DB-G220V | Reset | Green | 220V | 5 | US $0.89 |
11 | SA16J-11DB-Y6V | Reset | Yellow | 6V | 5 | US $0.89 |
12 | SA16J-11DB-Y12V | Reset | Yellow | 12V | 5 | US $0.89 |
13 | SA16J-11DB-Y24V | Reset | Yellow | 24V | 5 | US $0.89 |
14 | SA16J-11DB-Y110V | Reset | Yellow | 110V | 5 | US $0.89 |
15 | SA16J-11DB-Y220V | Reset | Yellow | 220V | 5 | US $0.89 |
16 | SA16J-11DB-A6V | Reset | Blue | 6V | 5 | US $0.89 |
17 | SA16J-11DB-A12V | Reset | Blue | 12V | 5 | US $0.89 |
18 | SA16J-11DB-A24V | Reset | Blue | 24V | 5 | US $0.89 |
19 | SA16J-11DB-A110V | Reset | Blue | 110V | 5 | US $0.89 |
20 | SA16J-11DB-A220V | Reset | Blue | 220V | 5 | US $0.89 |
21 | SA16J-11DB-W6V | Reset | White | 6V | 5 | US $0.89 |
22 | SA16J-11DB-W12V | Reset | White | 12V | 5 | US $0.89 |
23 | SA16J-11DB-W24V | Reset | White | 24V | 5 | US $0.89 |
24 | SA16J-11DB-W110V | Reset | White | 110V | 5 | US $0.89 |
25 | SA16J-11DB-W220V | Reset | White | 220V | 5 | US $0.89 |
26 | SA16J-11DA-R6V | Self-lock | Red | 6V | 5 | US $1 |
27 | SA16J-11DA-R12V | Self-lock | Red | 12V | 5 | US $1 |
28 | SA16J-11DA-R24V | Self-lock | Red | 24V | 5 | US $1 |
29 | SA16J-11DA-R110V | Self-lock | Red | 110V | 5 | US $1 |
30 | SA16J-11DA-R220V | Self-lock | Red | 220V | 5 | US $1 |
31 | SA16J-11DA-G6V | Self-lock | Green | 6V | 5 | US $1 |
32 | SA16J-11DA-G12V | Self-lock | Green | 12V | 5 | US $1 |
33 | SA16J-11DA-G24V | Self-lock | Green | 24V | 5 | US $1 |
34 | SA16J-11DA-G110V | Self-lock | Green | 110V | 5 | US $1 |
35 | SA16J-11DA-G220V | Self-lock | Green | 220V | 5 | US $1 |
36 | SA16J-11DA-Y6V | Self-lock | Yellow | 6V | 5 | US $1 |
37 | SA16J-11DA-Y12V | Self-lock | Yellow | 12V | 5 | US $1 |
38 | SA16J-11DA-Y24V | Self-lock | Yellow | 24V | 5 | US $1 |
39 | SA16J-11DA-Y110V | Self-lock | Yellow | 110V | 5 | US $1 |
40 | SA16J-11DA-Y220V | Self-lock | Yellow | 220V | 5 | US $1 |
41 | SA16J-11DA-A6V | Self-lock | Blue | 6V | 5 | US $1 |
42 | SA16J-11DA-A12V | Self-lock | Blue | 12V | 5 | US $1 |
43 | SA16J-11DA-A24V | Self-lock | Blue | 24V | 5 | US $1 |
44 | SA16J-11DA-A110V | Self-lock | Blue | 110V | 5 | US $1 |
45 | SA16J-11DA-A220V | Self-lock | Blue | 220V | 5 | US $1 |
46 | SA16J-11DA-W6V | Self-lock | White | 6V | 5 | US $1 |
47 | SA16J-11DA-W12V | Self-lock | White | 12V | 5 | US $1 |
48 | SA16J-11DA-W24V | Self-lock | White | 24V | 5 | US $1 |
49 | SA16J-11DA-W110V | Self-lock | White | 110V | 5 | US $1 |
50 | SA16J-11DA-W220V | Self-lock | White | 220V | 5 | US $1 |
