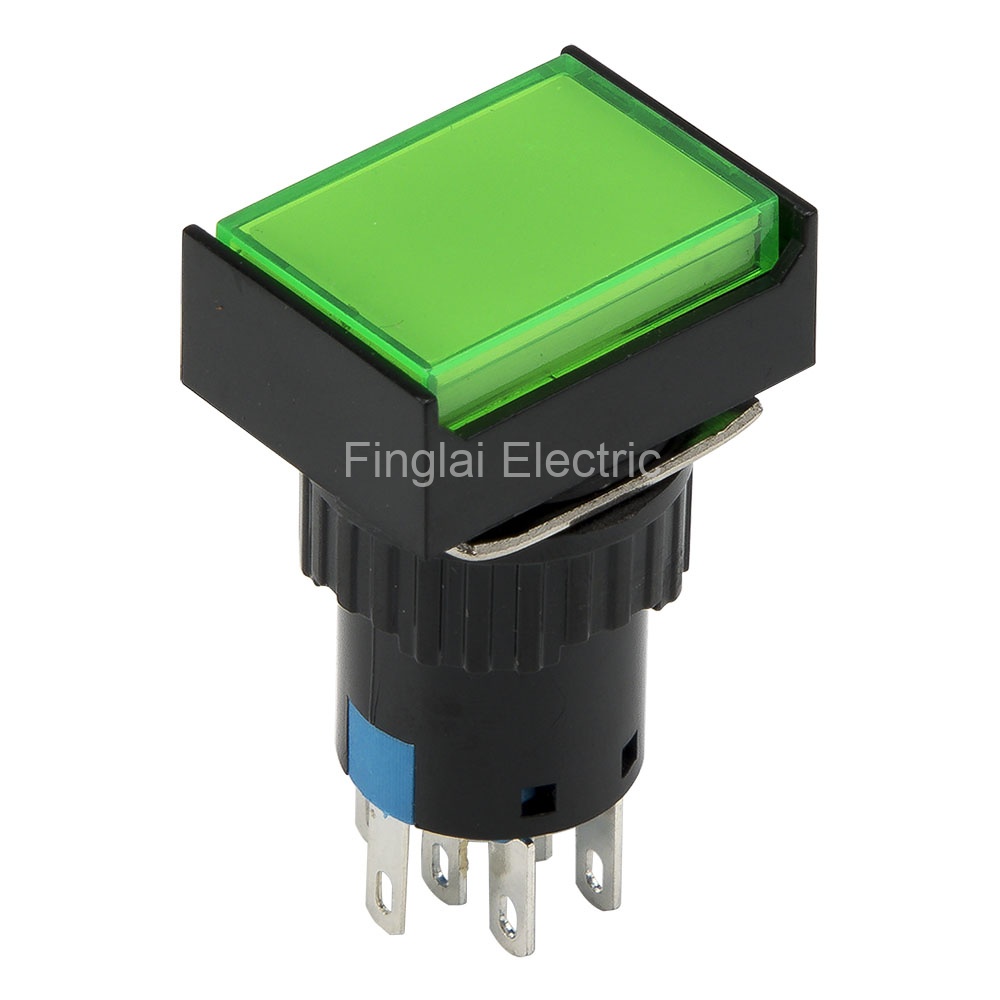

SA16J-22D 16mm SPDT 8 pins reset (ON)-OFF green rectangle push button switch pushbutton with 6V lamp
Product features
Mouse over to zoom in
SA16J-22D 16mm SPDT 8 pins reset (ON)-OFF green rectangle push button switch pushbutton with 6V lamp
Price: US $1.07 / piece
Model number: SA16J-22DB-G6V
Product name: Push button
Deliver to:
Shipping:
US $5.6via
Estimated Delivery Time: 9-15 days
Total price:US $10.95
Buy Now
Add to Cart
Inquire
Payment:PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
| Model number | Head shape | Action method | Contact form | Contact rating | Color code | Lamp voltage | Online store:
|
| SA16-11 | Round | Self-lock, reset | SPDT, 3 pins | 3A@250VAC | R, G | | |
| SA16-11D | Round | Self-lock, reset | SPDT, 5 pins | 3A@250VAC | R, G | 6,12,24,110,220V | |
| SA16-22 | Round | Self-lock, reset | DPDT, 6 pins | 3A@250VAC | R, G | | |
| SA16-22D | Round | Self-lock, reset | DPDT, 8 pins | 3A@250VAC | R, G | 6,12,24,110,220V | |
| SA16-11Y | Round, key | Self-lock | ON-OFF | 3A@250VAC | | | US $1.29/ pieceOrder |
| SA16-11X2 | Round, turn | Self-lock | ON-OFF | 1A@250VAC | | | US $1.07/ pieceOrder |
| SA16-11ZS | Emergency stop | | | | | | US $1.18/ pieceOrder |
| SA16Y-11MZ | Round | Self-lock | ON-OFF | 3A@250VAC | R, G | | US $0.95/ pieceOrder (2) |
| SA16Y-22X3 | Round, turn | Self-lock | ON-OFF-ON | 3A@250VAC | | | US $1.29/ pieceOrder |
| SA16F-11 | Square | Self-lock, reset | SPDT, 3 pins | 3A@250VAC | R, G, Y, A, W, B | | US $0.84 - 0.95/ pieceOrder (12) |
| SA16F-11D | Square | Self-lock, reset | SPDT, 5 pins | 3A@250VAC | R, G, Y, A, W | 6,12,24,110,220V | US $1.07/ pieceOrder (25) |
| SA16F-22 | Square | Self-lock, reset | DPDT, 6 pins | 3A@250VAC | R, G, Y, A, W, B | | |
| SA16F-22D | Square | Self-lock, reset | DPDT, 8 pins | 3A@250VAC | R, G, Y, A, W | 6,12,24,110,220V | |
| SA16F-11X2 | Square, turn | Self-lock | ON-OFF | 3A@250VAC | | | US $1.07/ pieceOrder |
| SA16J-11 | Rectangle | Self-lock, reset | SPDT, 3 pins | 3A@250VAC | R, G, Y, A, W, B | | |
| SA16J-11D | Rectangle | Self-lock, reset | SPDT, 5 pins | 3A@250VAC | R, G, Y, A, W | 6,12,24,110,220V | US $0.89 - 1/ pieceOrder (50) |
| SA16J-22 | Rectangle | Self-lock, reset | DPDT, 6 pins | 3A@250VAC | R, G, Y, A, W, B | | |
| SA16J-22D | Rectangle | Self-lock, reset | DPDT, 8 pins | 3A@250VAC | R, G, Y, A, W | 1.8, 3.8, 6,12,24,110,220V | Visiting... |
| SA16J-22X2 | Rectangle, turn | Self-lock | ON-OFF-ON | 3A@250VAC | | | US $1.29/ pieceOrder |
| SA16J-22X3 | Rectangle, turn | Self-lock | ON-OFF-ON | 3A@250VAC | | | US $1.29/ pieceOrder |
▇ SA16J-22D push button model number legend
▇ General
| Model number |
16mm SA series |
| Mounting dimensions |
φ16 |
| Contact resistance |
50mΩ max |
| Insulation resistance |
100MΩ min |
| Dielectric strength |
2000Vac, 50Hz for 1min |
| Mechanical Life |
2x105 cycles |
| Electrical life |
5x104 cycles |
| IP degree |
IP40 |
| Operation temperature |
-25 to 55℃ |
| Operation humidity |
45 to 85% RH, no-condensation |
| Alias name |
16mm SA series push button switch, pushbutton |
▇ SA16J-22D push button child models
| No |
Model Number |
Action Method |
Color |
Lamp Voltage |
MOQ |
Unit Price |
Related Product |
| 1 |
SA16J-22DB-R6V |
Reset |
Red |
6V |
5 |
US $1.07 |
Order |
| 2 |
SA16J-22DB-R12V |
Reset |
Red |
12V |
5 |
US $1.07 |
Order |
| 3 |
SA16J-22DB-R24V |
Reset |
Red |
24V |
5 |
US $1.07 |
Order |
| 4 |
SA16J-22DB-R110V |
Reset |
Red |
110V |
5 |
US $1.07 |
Order |
| 5 |
SA16J-22DB-R220V |
Reset |
Red |
220V |
5 |
US $1.07 |
Order Unfold |
| 6 |
SA16J-22DB-R1.8V |
Reset |
Red |
1.8V |
5 |
US $1.07 |
Order |
| 7 |
SA16J-22DB-G6V |
Reset |
Green |
6V |
5 |
US $1.07 |
Visiting... |
| 8 |
SA16J-22DB-G12V |
Reset |
Green |
12V |
5 |
US $1.07 |
Order |
| 9 |
SA16J-22DB-G24V |
Reset |
Green |
24V |
5 |
US $1.07 |
Order |
| 10 |
SA16J-22DB-G110V |
Reset |
Green |
110V |
5 |
US $1.07 |
Order |
| 11 |
SA16J-22DB-G220V |
Reset |
Green |
220V |
5 |
US $1.07 |
Order |
| 12 |
SA16J-22DB-G1.8V |
Reset |
Green |
1.8V |
5 |
US $1.07 |
Order |
| 13 |
SA16J-22DB-Y6V |
Reset |
Yellow |
6V |
5 |
US $1.07 |
Order |
| 14 |
SA16J-22DB-Y12V |
Reset |
Yellow |
12V |
5 |
US $1.07 |
Order |
| 15 |
SA16J-22DB-Y24V |
Reset |
Yellow |
24V |
5 |
US $1.07 |
Order |
| 16 |
SA16J-22DB-Y110V |
Reset |
Yellow |
110V |
5 |
US $1.07 |
Order |
| 17 |
SA16J-22DB-Y220V |
Reset |
Yellow |
220V |
5 |
US $1.07 |
Order |
| 18 |
SA16J-22DB-Y1.8V |
Reset |
Yellow |
1.8V |
5 |
US $1.07 |
Order |
| 19 |
SA16J-22DB-A6V |
Reset |
Blue |
6V |
5 |
US $1.07 |
Order |
| 20 |
SA16J-22DB-A12V |
Reset |
Blue |
12V |
5 |
US $1.07 |
Order |
| 21 |
SA16J-22DB-A24V |
Reset |
Blue |
24V |
5 |
US $1.07 |
Order |
| 22 |
SA16J-22DB-A110V |
Reset |
Blue |
110V |
5 |
US $1.07 |
Order |
| 23 |
SA16J-22DB-A220V |
Reset |
Blue |
220V |
5 |
US $1.07 |
Order |
| 24 |
SA16J-22DB-A1.8V |
Reset |
Blue |
1.8V |
5 |
US $1.07 |
Order |
| 25 |
SA16J-22DB-W6V |
Reset |
White |
6V |
5 |
US $1.07 |
Order |
| 26 |
SA16J-22DB-W12V |
Reset |
White |
12V |
5 |
US $1.07 |
Order |
| 27 |
SA16J-22DB-W24V |
Reset |
White |
24V |
5 |
US $1.07 |
Order |
| 28 |
SA16J-22DB-W110V |
Reset |
White |
110V |
5 |
US $1.07 |
Order |
| 29 |
SA16J-22DB-W220V |
Reset |
White |
220V |
5 |
US $1.07 |
Order |
| 30 |
SA16J-22DB-W1.8V |
Reset |
White |
1.8V |
5 |
US $1.07 |
Order |
Packaging Details
Product quantity: 5pcs
Package weight: 0.08kg
Package size: 10 x 10 x 4 cm
