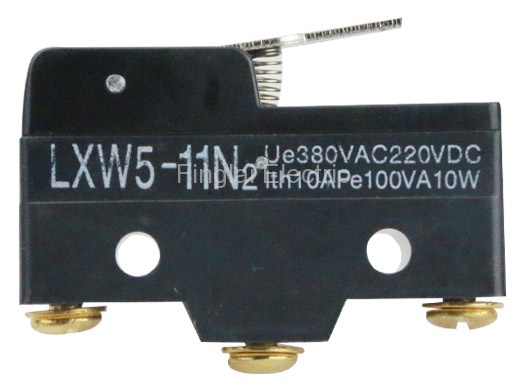

Products >> Switches >> Micro limit switches >> LXW5 >> LXW5-11N2

Model number	Same model	Operating lever	Operating force	Matched foot switch	Online store:  This site Aliexpress Ebay Amazon
LXW5-11D1		Short spring plunger	2-3.8N		US $0.53 - 0.84/ pieceOrder (2)
LXW5-11G1	Z-15GW2-B	Long hinge roller lever	0.35-0.85N		US $0.53 - 0.73/ pieceOrder (2)
LXW5-11G2	Z-15GW22-B	Short hinge roller lever	0.8-1.6N	LT4	US $0.53 - 0.84/ pieceOrder (2)
LXW5-11G3		Middle hinge roller lever	0.4-0.9N		US $0.53 - 0.84/ pieceOrder (2)
LXW5-11N1	Z-15GW-B	Hinge lever	0.3-0.8N		US $0.53 - 0.84/ pieceOrder (2)
LXW5-11N2		Short hinge lever	0.5-1N		Visiting...
LXW5-11M	Z-15GQ-B	Panel mount plunger	2-3.8N		US $0.78 - 1.07/ pieceOrder (2)
LXW5-11Q1	Z-15GQ22-B	Panel mount roller plunger	2-3.8N		US $0.78 - 1.07/ pieceOrder (2)
LXW5-11Q2	Z-15GQ21-B	Panel mount crossroller plunger	2-3.8N		US $0.78 - 1.07/ pieceOrder (2)

Model number	LXW5
Contact material	Copper; Silver
Contact form	1NO+1NC
Action method	Reset
Rated voltage (Ue)	380VAC, 220VDC
Rated thermal current (Ith)	10A
Contact resistance	30mΩ max (initial value)
Insulation resistance	100MΩ min at 500Vdc
Dielectric strength	1000Vac, 50/60 Hz for 1 min between terminals of the same polarity 2000Vac, 50/60 Hz for 1 min between current-carrying metal part and ground 2000Vac, 50/60 Hz for 1 min between each terminal and non-current-carrying metal part
Machine life	20x106 operations min
Electrical Life	5x105 operations min
IP Rating	IP62
Operating temperature	-25-80 ℃
Operating humidity	35 to 85% RH, no condensation
Alias name	LXW5 series limit switch
