LT4 series aluminium case silver contact foot switches for machine tool control

Main child models
Mouse over to zoom in
Price: US $4.2 / piece

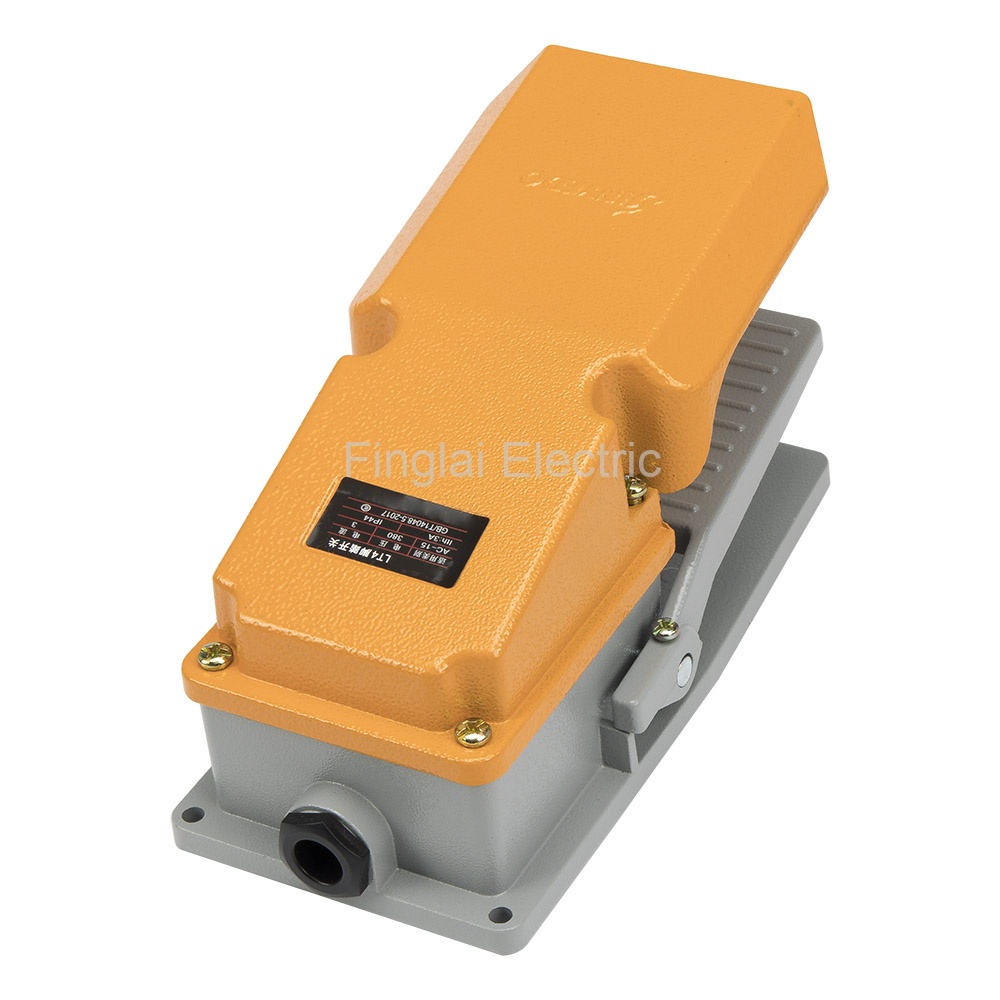

Model number: LT4-AR
Product name: Foot switch
Case material:
Aluminum
Action method:
ResetSelf-lock
View details
Product description
▇ Model number and parameters
Model numberOnline store:
LT4Visiting...
▇ LT4 foot switch model number legend
LT4
Parent Model Number
Case material
-A: Aluminum
Action method
R: Reset
L: Self-lock
▇ General
Model number LT4
Contact form 1NO+1NC
Action method Reset, self-lock
Contact rating Reset: 15A@380VAC; Self-lock: 5A@380VAC
Case material Aluminium
Matched micro switch LXW5-11G2
Contact resistance 50mΩ max (First time)
Insulation resistance 100MΩ min at 500Vdc
Dielectric strength 2000Vac, 50Hz for 1min
Machine life 1x106 operations min
Electrical Life 1x105 operations min
IP Rating IP62
Operating temperature -25-70 ℃
Operating humidity 45 to 85% RH, no condensation
Alias name LT4 pedal switch
▇ LT4 foot switch child models
No Model Number Case Material Action Method MOQ Unit Price
1 LT4-AR Aluminum Reset 1 US $4.2
2 LT4-AL Aluminum Self-lock 1 US $6.11
