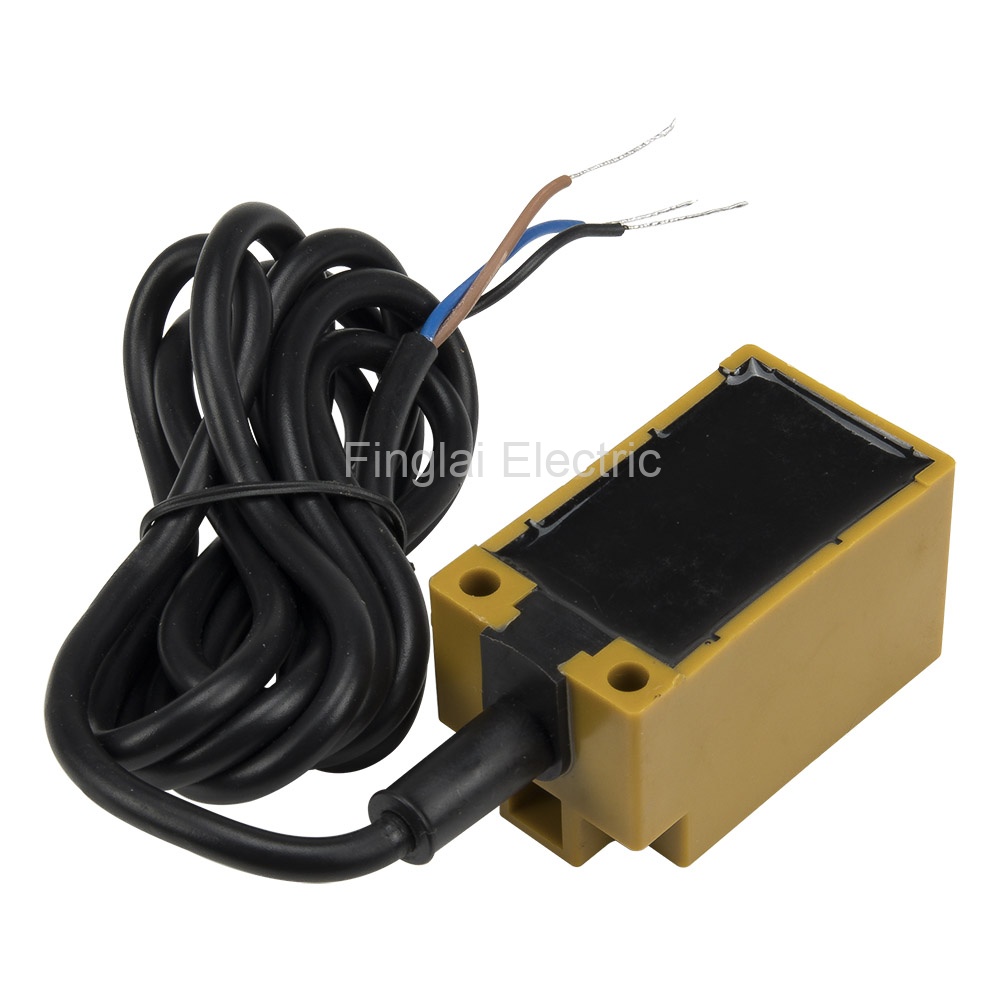

TL-N10MF2 30x30x52mm 10mm sensing DC 6-36V PNP NC prism shape inductive proximity sensor
Product features
Mouse over to zoom in
TL-N10MF2 30x30x52mm 10mm sensing DC 6-36V PNP NC prism shape inductive proximity sensor
Price: US $3.64 / piece
Model number: TL-N10MF2
Product name: Prism shape proximity sensor
Deliver to:
Shipping:
US $10.14via
Estimated Delivery Time: 9-17 days
DDP service: all applicable import duties and taxes are included in total order value.
Total price:US $13.78
Buy Now
Add to Cart
Inquire
Payment:
PayPalCredit CardWESTERN UNIONBANK TRANSFER
Need quotation for reference?Get quotation
Product description
▇ Operating form and model number
| Current type | Operating form | Contact form | Model number | Online store: |
| DC | NPN | NO | TL-N10ME1 | US $3.64/ pieceOrder |
| DC | NPN | NC | TL-N10ME2 | US $3.64/ pieceOrder |
| DC | NPN | NO+NC | TL-N10ME4 | US $4.54/ pieceOrder |
| DC | PNP | NO | TL-N10MF1 | US $3.64/ pieceOrder |
| DC | PNP | NC | TL-N10MF2 | Visiting... |
| DC | PNP | NO+NC | TL-N10MF4 | US $4.54/ pieceOrder |
| DC | Two wires | NO | TL-N10MD1 | US $3.87/ pieceOrder |
| DC | Two wires | NC | TL-N10MD2 | US $3.87/ pieceOrder |
| AC | Two wires | NO | TL-N10MY1 | US $3.87/ pieceOrder |
| AC | Two wires | NC | TL-N10MY2 | US $3.87/ pieceOrder |
▇ General
| Model number | TL-N10M series |
| External dimensions | 30x30x52 |
| Installation type | Non-shielded |
| Detection distance | 10mm |
| Supply voltage | 12-24Vdc (6-36Vdc); 110-220Vac (90-250Vac), 50/60Hz |
| Rated output current | N.P Type: 300mA max; D type: 200mA max; AC Type: 400mA |
| Standard detected object | Mild steel (30x30x1mm) |
| Sensing object | Magnetic metals (if it is not magnetic metals, the sensing distance would decrease) |
| Response frequency | NPN or PNP: 0.2kHz; Two wires of DC: 0.2kHz; Two wires of AC: 25Hz |
| Leakage current | N.P Type: 13mA max; D type: 0.8mA max; A Type: 1.7mA max |
| Hysteresis | 10% max. of sensing distance |
| Protection circuit | DC: Reverse connection protection, Surge suppressor, Short-circuit protection AC: Surge suppressor |
| Insulation resistance | 50MΩ min (between charging part and housing) |
| Dielectric strength | 1000Vac, 1min (between charging part and housing) |
| Temperature influence | ±10% max. of sensing distance at 23°C within temperature range of -25°C to 60°C ±15% max. of sensing distance at 23°C within temperature range of -30°C to 65°C |
| Voltage influence | ±10% max. of sensing distance in rated voltage range ±15% |
| IP Rating | IP67 |
| Material | Case: ABS; Sensing surface: ABS |
Packaging Details
Product quantity: 1pc
Package weight: 0.2kg
Package size: 13 x 8 x 9 cm
