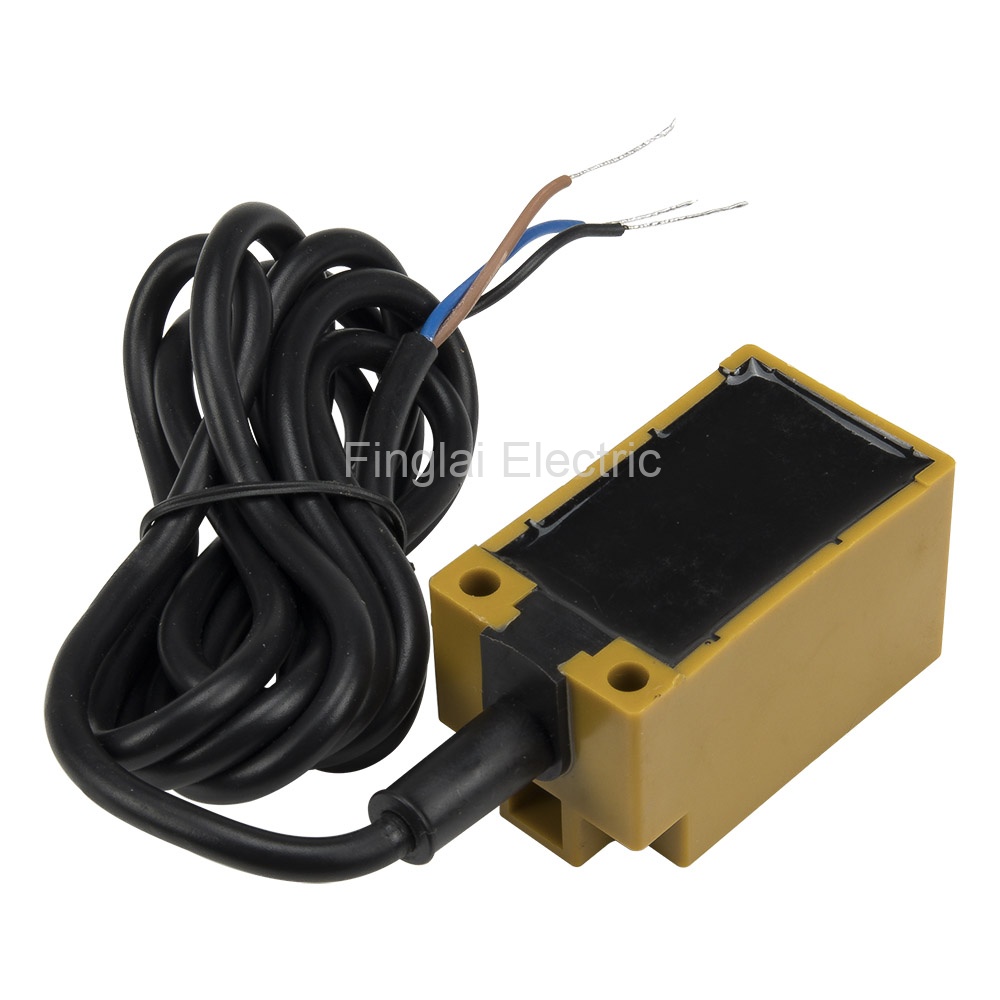

TL-N10ME1 prism shape proximity sensor

Product features

Price: US $3.64 / piece

Model number: TL-N10ME1

Product name: Prism shape proximity sensor

Deliver to:

Shipping:

US $7.76via

Estimated Delivery Time: 9-15 days

Quantity:

Total price:US $11.4

Buy Now

Add to Cart

Inquire

Payment:

PayPal/Credit CardWESTERN UNIONBANK TRANSFER

Product description

▇ Operating form and model number

▇ General

Model number	TL-N10M series
External dimensions	30x30x52
Installation type	Non-shielded
Detection distance	10mm
Supply voltage	12-24Vdc (6-36Vdc); 110-220Vac (36-250Vac), 50/60Hz
Rated output current	N.P Type: 300mA max; D type: 200mA max; AC Type: 400mA
Standard detected object	Mild steel (30x30x1mm)
Sensing object	Magnetic metals (if it is not magnetic metals, the sensing distance would decrease)
Response frequency	NPN or PNP: 0.2kHz; Two wires of DC: 0.2kHz; Two wires of AC: 25Hz
Leakage current	N.P Type: 13mA max; D type: 0.8mA max; A Type: 1.7mA max
Hysteresis	10% max. of sensing distance
Protection circuit	DC: Reverse connection protection, Surge suppressor, Short-circuit protection AC: Surge suppressor
Insulation resistance	50MΩ min (between charging part and housing)
Dielectric strength	1000Vac, 1min (between charging part and housing)
Temperature influence	±10% max. of sensing distance at 23°C within temperature range of -25°C to 60°C ±15% max. of sensing distance at 23°C within temperature range of -30°C to 65°C
Voltage influence	±10% max. of sensing distance in rated voltage range ±15%
IP Rating	IP67
Material	Case: ABS; Sensing surface: ABS

Packaging Details

Product quantity: 1pc

Package weight: 0.2kg

Package size: 13 x 8 x 9 cm
