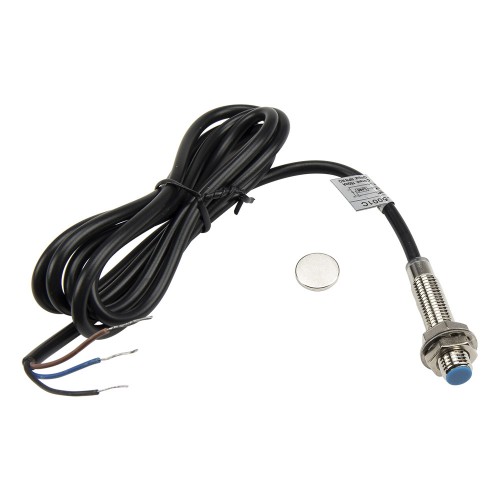

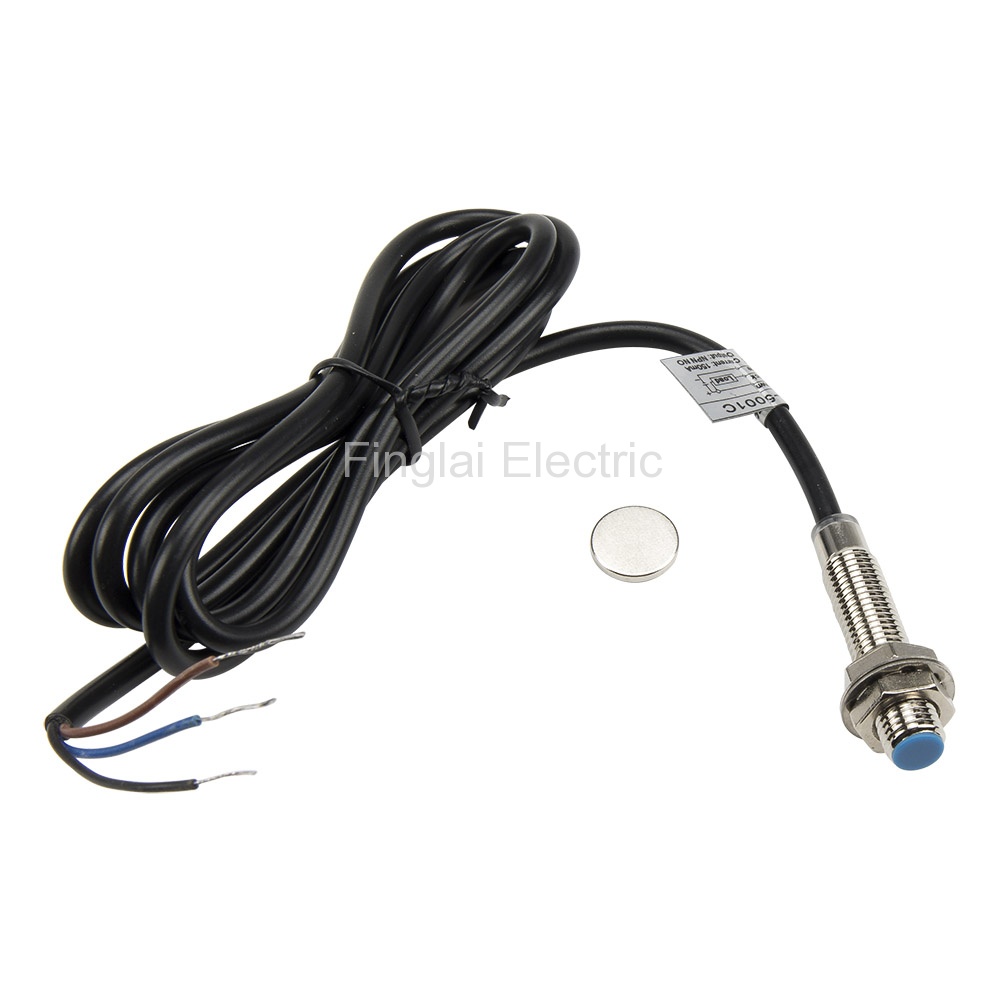

NJK-5001C M8 10mm sensing DC 5-30V NPN NO hall effect proximity switch sensor
Product features
Mouse over to zoom in
NJK-5001C M8 10mm sensing DC 5-30V NPN NO hall effect proximity switch sensor
Price: US $1.87 / piece
Model number: NJK-5001C
Product name: Hall effect proximity sensor
Deliver to:
Shipping:
US $5.97via
Estimated Delivery Time: 9-15 days
Total price:US $7.84
Buy Now
Add to Cart
Inquire
Payment:PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Operating form and model number
| Sensor type | Operating form | Contact form | Model number | Same model | Online store:
|
| Hall effect | NPN | NO | NJK-5001C | NJK-8001C | Visiting... |
▇ General
| Model number |
NJK-5001 series |
| External dimensions |
M8*1*39 |
| Detection distance |
10mm |
| Supply voltage-hall effect |
5-30VDC |
| Continuous load current |
150mA |
| Sensing object |
Permanent magnet |
| Response frequency |
100KHz |
| Protection |
Reverse polarity protection/Surge suppressor |
| Dielectric strength |
1500Vac, 1min (between charging part and housing) |
| Material |
Case: Brass-nickel plated |
Packaging Details
Product quantity: 1pc
Package weight: 0.1kg
Package size: 10 x 10 x 5 cm
