CS1 series magnetic proximity sensor for cylinder
▇ Operating form and model number
| Sensor type | Operating form | Contact form | Model number | Remark | Online store: |
| Magnetic | DC/AC two wires | NO | CS1-J | For SDA, TN thin cylinders | US $1.33/ pieceOrder |
| Magnetic | DC/AC two wires | NO | CS1-U | For SC, MA, MAL tie-rod cylinders | US $1.33/ pieceOrder |
| Magnetic | DC/AC two wires | NO | CS1-F | For SI, SU, MI mini cylinders | US $1.33/ pieceOrder |
| Magnetic | DC/AC two wires | NO | CS1-G | For ACQ, MK, TR small cylinders | US $1.28/ pieceOrder |
| Magnetic | DC/AC two wires | NO | CS1-S | For MA, MAL, DSN round mini cylinders | US $1.33/ pieceOrder |
▇ General

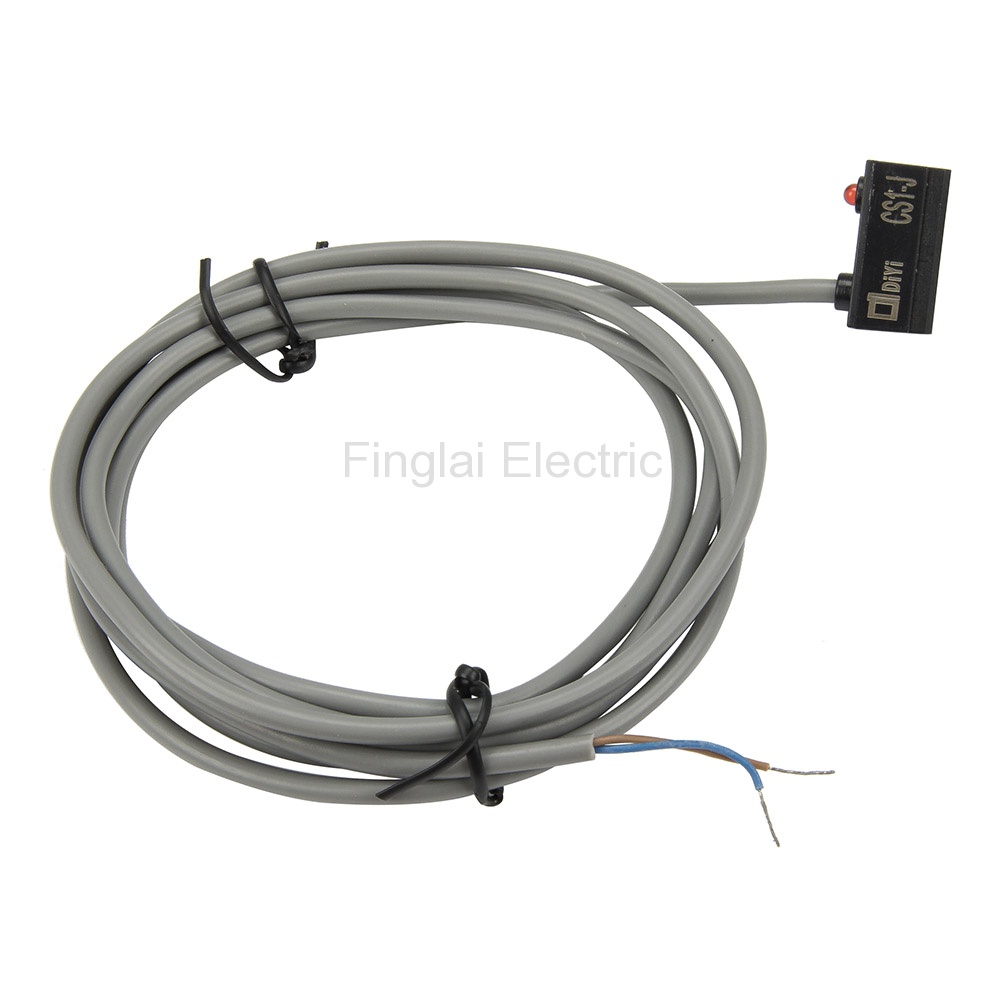

| Model number | CS1-J series |
| External dimensions | 6.5x11x22.5 |
| Supply voltage-magnetic | 5-240VDC/AC |
| Continuous load current | 100mA |
| Sensing object | Permanent magnet |
| Protection | Reverse polarity protection/Surge suppressor |
| Dielectric strength | 1500Vac, 1min (between charging part and housing) |
| Material | Case: ABS; Sensing surface: ABS |
