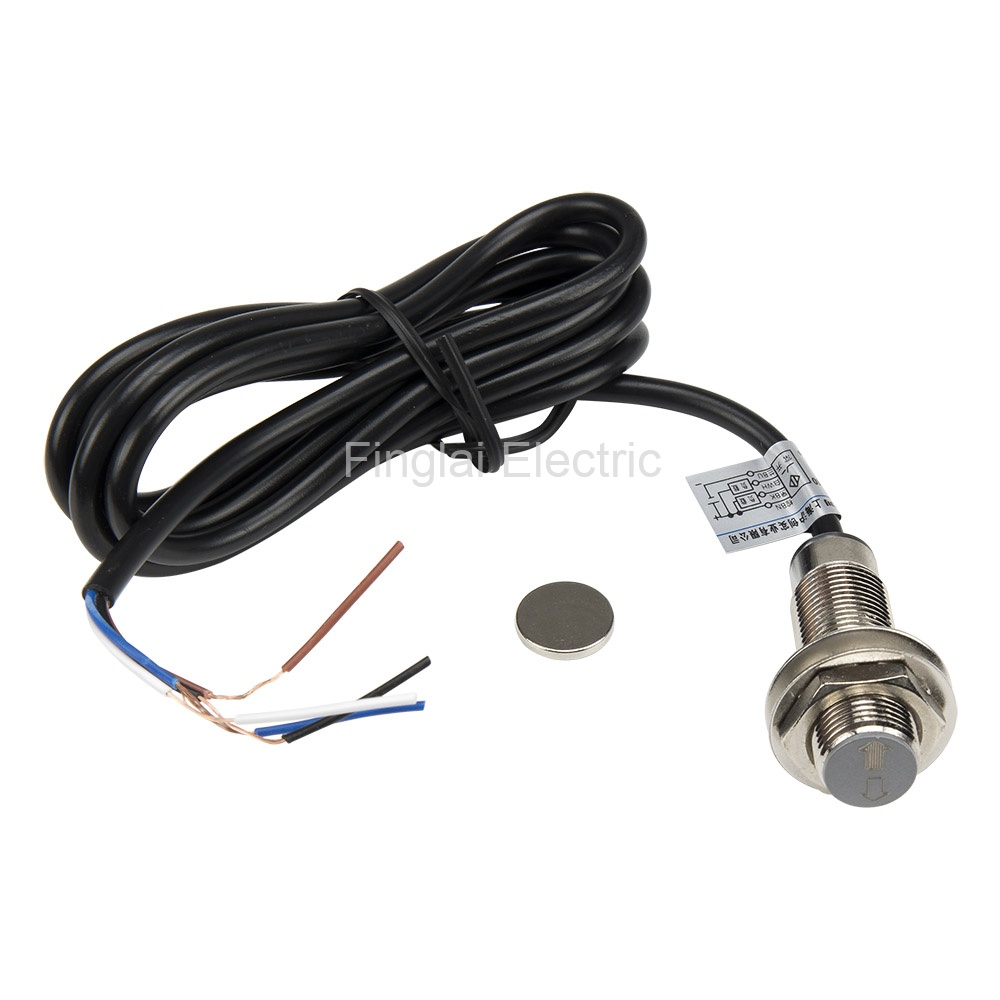

CHE12-10N11-H710 M12 10mm sensing DC 5-30V NPN NO+NO two way hall effect proximity switch sensor

34 sold

Product features

Mouse over to zoom in

Price: US $4.4 / piece

Model number: CHE12-10N11-H710

Product name: Hall effect proximity sensor

Deliver to:

Shipping:

US $9.74via

Estimated Delivery Time: 9-17 days

DDP service: All applicable import duties and taxes are included in total price.

Quantity:

Total price:US $14.14

Buy Now

Add to Cart

Inquire

Payment:

PayPalCredit CardWESTERN UNIONBANK TRANSFER

Need quotation for reference?Get quotation

Product description

▇ Operating form and model number

Sensor type	Operating form	Contact form	Model number	Online store:
Two way hall effect	NPN	NO, NO	CHE12-10N11-H710	Visiting...

▇ General

Model number	CHE12-10 series
External dimensions	M12x1x38
Detection distance	10mm
Supply voltage-hall effect	5-30VDC
Continuous load current	150mA
Sensing object	Permanent magnet
Output indication	Red and green LED
Protection	Reverse polarity protection/Surge suppressor
Dielectric strength	1500Vac, 1min (between charging part and housing)
Cable length	Standard is 1.5 m, can be customized
Material	Case: Brass-nickel plated

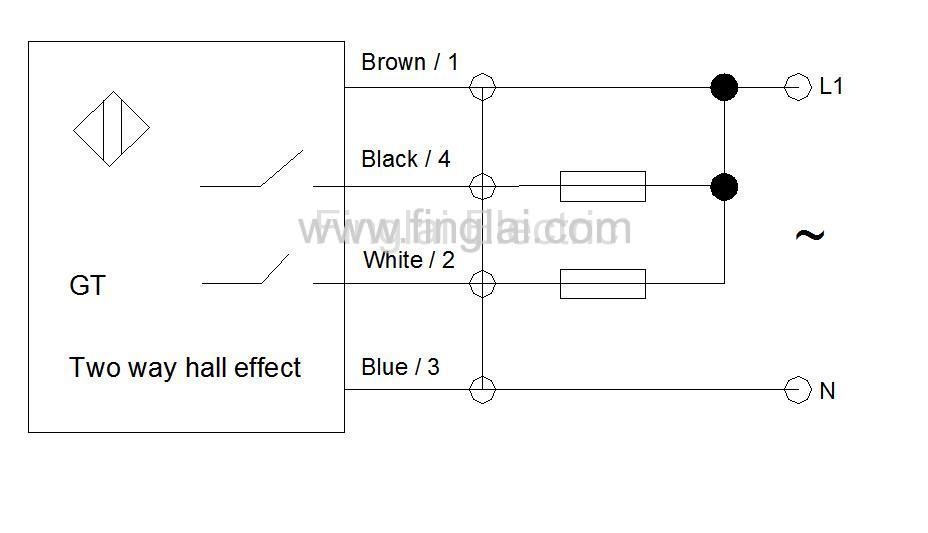

Purpose	Widely used in detecting clockwise rotating and anticlockwise rotating counting. When the magnet pass gray face, red LED light, black wire switch on, pass black face, green LED light, white wire switch on.

CHE12-10N11-H710 two way hall effect sensor

Packaging Details

Product quantity: 1pc

Package weight: 0.2kg

Package size: 13 x 8 x 9 cm
