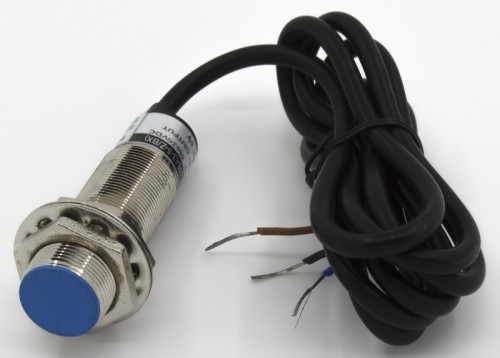

LJ18A3-5-Z/BX M18 5mm sensing DC 6-36V NPN NO cylinder inductive proximity switch sensor
Product features
Mouse over to zoom in
LJ18A3-5-Z/BX M18 5mm sensing DC 6-36V NPN NO cylinder inductive proximity switch sensor
Product description
▇ Operating form and model number
Current type | Operating form | Contact form | Connection form | Model number | Online store: |
DC | NPN | NO | Wire lead | LJ18A3-5-Z/BX | Visiting... |
DC | NPN | NO | Connector | LJ18A3-5-Z/BX-G | US $3.53/ pieceOrder |
DC | NPN | NC | Wire lead | LJ18A3-5-Z/AX | US $1.69/ pieceOrder |
DC | NPN | NO+NC | Wire lead | LJ18A3-5-Z/CX | US $3.07/ pieceOrder |
DC | PNP | NO | Wire lead | LJ18A3-5-Z/BY | US $1.69/ pieceOrder |
DC | PNP | NO | Connector | LJ18A3-5-Z/BY-G | US $3.53/ pieceOrder |
DC | PNP | NC | Wire lead | LJ18A3-5-Z/AY | US $1.69/ pieceOrder |
DC | PNP | NO+NC | Wire lead | LJ18A3-5-Z/CY | US $3.07/ pieceOrder |
DC | Two wires | NO | Wire lead | LJ18A3-5-Z/EX | US $1.79/ pieceOrder |
DC | Two wires | NC | Wire lead | LJ18A3-5-Z/DX | US $1.79/ pieceOrder |
AC | Two wires | NO | Wire lead | LJ18A3-5-J/EZ | US $1.79/ pieceOrder |
AC | Two wires | NC | Wire lead | LJ18A3-5-J/DZ | US $1.79/ pieceOrder |
▇ General
Model number | LJ18A3-5 series |
External dimensions | M18x55 |
Installation type | Shielded |
Detection distance | 5mm |
Setting distance | 0-4 mm |
Supply voltage | 6-36Vdc; 90-250Vac, 50/60Hz |
Output current | DC type: 300mA max; AC Type: 400mA |
Standard detected object | Mild steel (18x18x1mm) |
Sensing object | Magnetic metals (if it is not magnetic metals, the sensing distance would decrease) |
Response frequency | 500Hz |
Matched mounting bracket | M18 mounting bracket |
Output indication | Red LED |
Short-circuit protection | No |
Reverse connection protection | Yes |
Insulation resistance | 50MΩ min (between charging part and housing) |
Dielectric strength | 1000Vac, 1min (between charging part and housing) |
IP Rating | IP65 |
Operating temperature | -25 to 70 ℃ (13 to 158 ℉) |
Cable length | 1.2m, PVC cable |
Material | Case: Brass-nickel plated; Sensing surface: ABS |
Packaging Details
Product quantity: 1pc
Package weight: 0.1kg
Package size: 10 x 10 x 5 cm
