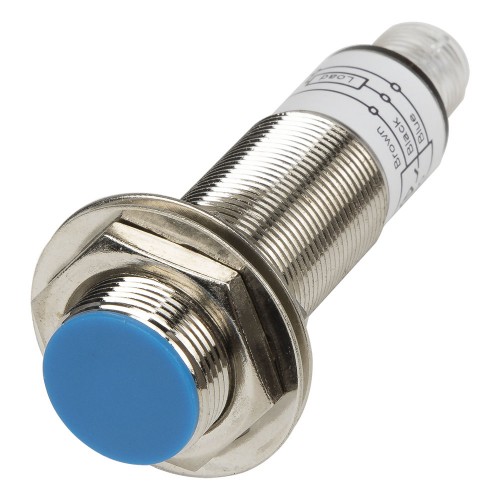

LJ18A3-5-Z/BX-G M18 5mm sensing DC 6-36V NPN NO connector type cylinder inductive proximity switch sensor
Product features
Mouse over to zoom in
LJ18A3-5-Z/BX-G M18 5mm sensing DC 6-36V NPN NO connector type cylinder inductive proximity switch sensor
Price: US $3.53 / piece
Model number: LJ18A3-5-Z/BX-G
Product name: Cylinder proximity sensors
Deliver to:
Shipping:
US $7.13via
Estimated Delivery Time: 9-17 days
DDP service: all applicable import duties and taxes are included in total order value.
Total price:US $10.66
Buy Now
Add to Cart
Inquire
Payment:
PayPalCredit CardWESTERN UNIONBANK TRANSFER
Need quotation for reference?Get quotation
Product description
▇ Operating form and model number
| Current type | Operating form | Contact form | Connection form | Model number | Online store: |
| DC | NPN | NO | Wire lead | LJ18A3-5-Z/BX | US $1.69/ pieceOrder |
| DC | NPN | NO | Connector | LJ18A3-5-Z/BX-G | Visiting... |
| DC | NPN | NC | Wire lead | LJ18A3-5-Z/AX | US $1.69/ pieceOrder |
| DC | NPN | NO+NC | Wire lead | LJ18A3-5-Z/CX | US $3.07/ pieceOrder |
| DC | PNP | NO | Wire lead | LJ18A3-5-Z/BY | US $1.69/ pieceOrder |
| DC | PNP | NO | Connector | LJ18A3-5-Z/BY-G | US $3.53/ pieceOrder |
| DC | PNP | NC | Wire lead | LJ18A3-5-Z/AY | US $1.69/ pieceOrder |
| DC | PNP | NO+NC | Wire lead | LJ18A3-5-Z/CY | US $3.07/ pieceOrder |
| DC | Two wires | NO | Wire lead | LJ18A3-5-Z/EX | US $1.79/ pieceOrder |
| DC | Two wires | NC | Wire lead | LJ18A3-5-Z/DX | US $1.79/ pieceOrder |
| AC | Two wires | NO | Wire lead | LJ18A3-5-J/EZ | US $1.79/ pieceOrder |
| AC | Two wires | NC | Wire lead | LJ18A3-5-J/DZ | US $1.79/ pieceOrder |
▇ General
| Model number | LJ18A3-5 series |
| External dimensions | M18x55 |
| Installation type | Shielded |
| Detection distance | 5mm |
| Setting distance | 0-4 mm |
| Supply voltage | 6-36Vdc; 90-250Vac, 50/60Hz |
| Output current | DC type: 300mA max; AC Type: 400mA |
| Standard detected object | Mild steel (18x18x1mm) |
| Sensing object | Magnetic metals (if it is not magnetic metals, the sensing distance would decrease) |
| Response frequency | 500Hz |
| Matched mounting bracket | M18 mounting bracket |
| Output indication | Red LED |
| Short-circuit protection | No |
| Reverse connection protection | Yes |
| Insulation resistance | 50MΩ min (between charging part and housing) |
| Dielectric strength | 1000Vac, 1min (between charging part and housing) |
| IP Rating | IP65 |
| Operating temperature | -25 to 70 ℃ (13 to 158 ℉) |
| Cable length | 1.2m, PVC cable |
| Material | Case: Brass-nickel plated; Sensing surface: ABS |
Packaging Details
Product quantity: 1pc
Package weight: 0.1kg
Package size: 10 x 10 x 5 cm
