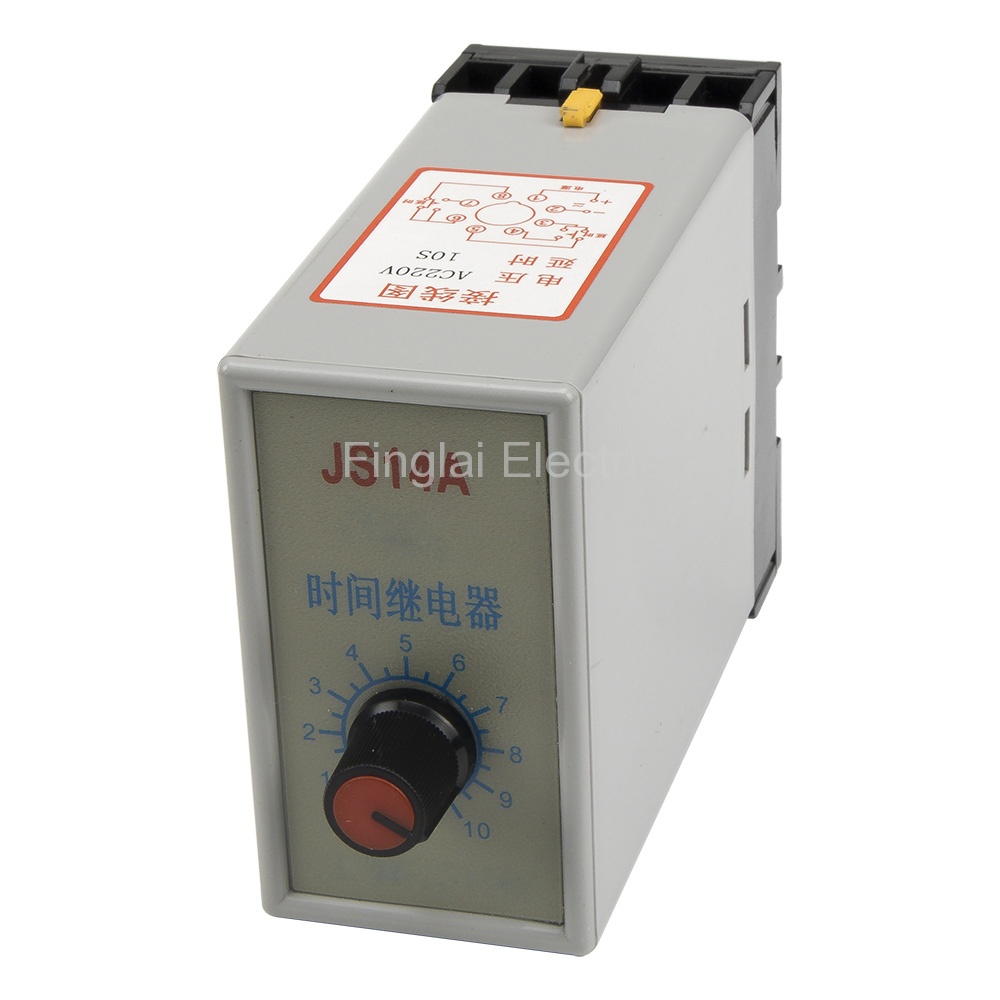

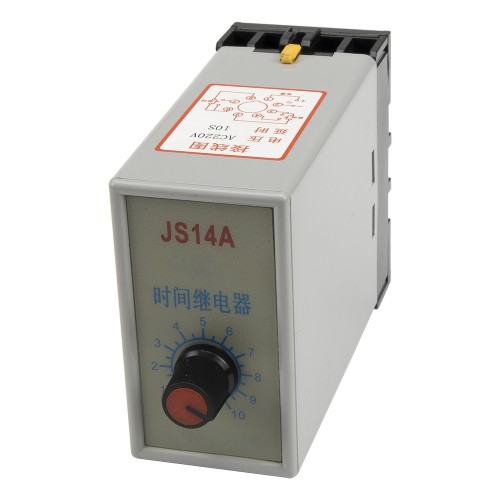

JS14A 220V 10s on delay DPDT time relay
Product features
Mouse over to zoom in
JS14A 220V 10s on delay DPDT time relay
Price: US $3.87 / piece
Model number: JS14A-220VAC-10S
Product name: Time relay
Deliver to:
Shipping:
US $11.37via
Estimated Delivery Time: 9-15 days
Total price:US $15.24
Buy Now
Add to Cart
Inquire
Payment:PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Contact form and delay time
| Model number | Contact form | Delay time | Remark | Online store:
|
| JS14A | On-delay DPDT | 1,5,10,30,60,120,180,240,300,600,900,1200,1800,3600s | | Visiting... |
| JS14A-M | On-delay DPDT | 1,5,10,30,60,120,180,240,300,600,900,1200,1800,3600s | Panel type | US $4.76/ pieceOrder (4) |
| JS14A-Y | On-delay SPST-NO + SPST-NC | 1,5,10,30,60,120,180,240,300,600,900,1200,1800,3600s | Connect to external potentiometer | US $4.99/ pieceOrder (4) |
▇ JS14A time relay model number legend
▇ General
| Model number |
JS14A series |
| Supply voltage |
12, 24, 36, 48, 110, 220 or 380 Vac, 50/60 Hz; 12 or 24 Vdc |
| Tolerance |
-15% ... 10% at AC and -10% ... 10% at DC of rated supply voltage |
| Power consumption |
3W max |
| Setting method |
Knob |
| Perforate dimensions |
81 10x45 10 mm |
| Contact rating |
3A@250Vac, 5A@28Vdc |
| Repeat accuracy |
±0.3%, ±0.05 sec |
| Setting error |
±0.5%, ±0.05 sec |
| Termination |
Screw |
| Mechanical life |
1x106 |
| Electrical life |
1x105 |
| Operating temperature |
-5 to 40 ℃ |
| Operating humidity |
95% RH max, non-condensing |
| Alias name |
JS14A series electric timer |
▇ JS14A time relay child models
| No |
Model Number |
Supply Voltage |
Delay Time |
MOQ |
Unit Price |
Related Product |
| 1 |
JS14A-110VAC-5S |
110VAC |
5s |
1 |
US $3.87 |
Order |
| 2 |
JS14A-110VAC-10S |
110VAC |
10s |
1 |
US $3.87 |
Order |
| 3 |
JS14A-110VAC-30S |
110VAC |
30s |
1 |
US $3.87 |
Order |
| 4 |
JS14A-110VAC-60S |
110VAC |
60s |
1 |
US $3.87 |
Order |
| 5 |
JS14A-110VAC-120S |
110VAC |
120s |
1 |
US $3.87 |
Order Unfold |
| 6 |
JS14A-220VAC-5S |
220VAC |
5s |
1 |
US $3.87 |
Order |
| 7 |
JS14A-220VAC-10S |
220VAC |
10s |
1 |
US $3.87 |
Visiting... |
| 8 |
JS14A-220VAC-30S |
220VAC |
30s |
1 |
US $3.87 |
Order |
| 9 |
JS14A-220VAC-60S |
220VAC |
60s |
1 |
US $3.87 |
Order |
| 10 |
JS14A-220VAC-120S |
220VAC |
120s |
1 |
US $3.87 |
Order |
| 11 |
JS14A-380VAC-5S |
380VAC |
5s |
1 |
US $3.87 |
Order |
| 12 |
JS14A-380VAC-10S |
380VAC |
10s |
1 |
US $3.87 |
Order |
| 13 |
JS14A-380VAC-30S |
380VAC |
30s |
1 |
US $3.87 |
Order |
| 14 |
JS14A-380VAC-60S |
380VAC |
60s |
1 |
US $3.87 |
Order |
| 15 |
JS14A-380VAC-120S |
380VAC |
120s |
1 |
US $3.87 |
Order |
Packaging Details
Product quantity: 1pc
Package weight: 0.4kg
Package size: 14.5 x 8.5 x 10.5 cm
