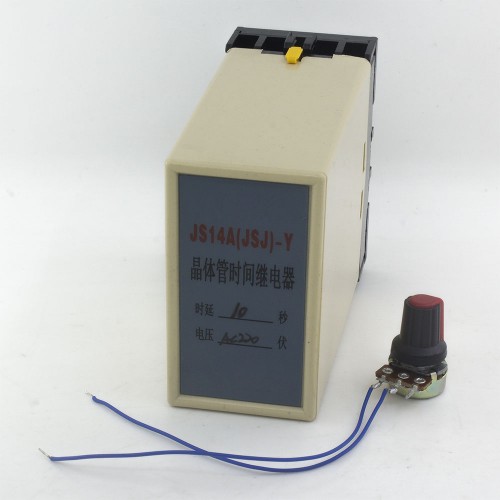

JS14A-Y series time relays
Main child models
Product description
▇ Contact form and delay time
| Model number | Contact form | Delay time | Remark | Online store: |
| JS14A | On-delay DPDT | 1,5,10,30,60,120,180,240,300,600,900,1200,1800,3600s | US $3.87/ pieceOrder (15) | |
| JS14A-M | On-delay DPDT | 1,5,10,30,60,120,180,240,300,600,900,1200,1800,3600s | Panel type | US $4.76/ pieceOrder (4) |
| JS14A-Y | On-delay SPST-NO + SPST-NC | 1,5,10,30,60,120,180,240,300,600,900,1200,1800,3600s | Connect to external potentiometer | Visiting... |
▇ JS14A-Y time relay model number legend
JS14A-Y
Parent Model Number
▇ General
| Model number | JS14A series |
| Supply voltage | 12, 24, 36, 48, 110, 220 or 380 Vac, 50/60 Hz; 12 or 24 Vdc |
| Tolerance | -15% ... 10% at AC and -10% ... 10% at DC of rated supply voltage |
| Power consumption | 3W max |
| Setting method | Knob |
| Perforate dimensions | 81 10x45 10 mm |
| Contact rating | 3A@250Vac, 5A@28Vdc |
| Repeat accuracy | ±0.3%, ±0.05 sec |
| Setting error | ±0.5%, ±0.05 sec |
| Termination | Screw |
| Mechanical life | 1x106 |
| Electrical life | 1x105 |
| Operating temperature | -5 to 40 ℃ |
| Operating humidity | 95% RH max, non-condensing |
| Alias name | JS14A series electric timer |
▇ JS14A-Y time relay child models
| No | Model Number | Supply Voltage | Delay Time | MOQ | Unit Price |
| 1 | JS14A-Y-220VAC-10S | 220VAC | 10s | 1 | US $4.99 |
| 2 | JS14A-Y-220VAC-30S | 220VAC | 30s | 1 | US $4.99 |
| 3 | JS14A-Y-220VAC-60S | 220VAC | 60s | 1 | US $4.99 |
| 4 | JS14A-Y-220VAC-120S | 220VAC | 120s | 1 | US $4.99 |
