H3Y-2 DC 24V 30s on delay DPDT time relay timer with socket base

Product features
Mouse over to zoom in

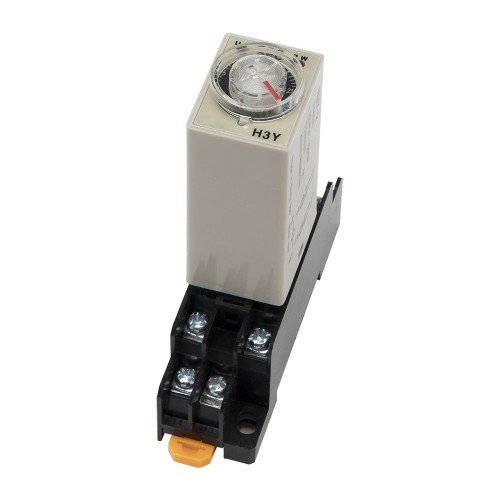

H3Y-2 DC 24V 30s on delay DPDT time relay timer with socket base
Price: US $2.38 / piece
Model number: H3Y-2-S24VDC-30S
Product name: Time relay
Socket:
Without socket
US $2.12With socket
US $2.38
Supply voltage:
220VAC
US $2.38110VAC
US $2.3824VDC
US $2.3812VDC
US $2.38
Delay time:
30s
US $2.3860s
US $2.385min30min
US $2.3860min
US $2.38
Deliver to:
Shipping:
US $7.82via
Estimated Delivery Time: 9-17 days
Quantity:
Total price:US $10.2
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Contact form and delay time
Model numberContact formDelay timeOnline store:
H3Y-2On-delay DPDT1,3,5,10,30,60,120; 3, 5,10,30,60minVisiting...
H3Y-4On-delay 4PDT1,3,5,10,30,60,120; 3. 5,10,30,60minUS $2.12 - 2.44/ pieceOrder (32)
▇ H3Y-2 time relay model number legend
▇ General
Model number H3Y series
Supply voltage 36, 110, 220, 380VAC, 50/60 Hz; 12, 24, 48,110VDC
Tolerance -15% ... 10% at AC and -10% ... 10% at DC of rated supply voltage
Power consumption 1.8W max
Setting method Knob
Indication method LED
External dimensions 22x28x64 mm
Contact rating H3Y-2: 5A@250Vac/28Vdc; H3Y-4: 3A@250Vac/28Vdc
Repeat accuracy ±1%
Setting error ±10%±0.05 sec
Termination H3Y-2: 8 pins H3Y-4: 14pins
Mounting Din rail
Matched socket H3Y-2: PYF08A, PY08, H3Y-4: PYF14A, PY14
Matched mounting accessories Y92H-3 pothook
Mechanical life 1x107
Electrical life H3Y-2: 5x105 ;H3Y-4: 2x105
Operating temperature -10 to 50 ℃
Operating humidity 35-85% RH, non-condensing
Alias name H3Y series timer
▇ H3Y-2 time relay child models
No Model Number Socket Supply Voltage Delay Time MOQ Unit Price Related Product
1 H3Y-2-N220VAC-30S Without socket 220VAC 30s 1 US $2.12 Order
2 H3Y-2-N220VAC-60S Without socket 220VAC 60s 1 US $2.12 Order
3 H3Y-2-N220VAC-5M Without socket 220VAC 5min 1 US $2.12 Order
4 H3Y-2-N220VAC-30M Without socket 220VAC 30min 1 US $2.12 Order
5 H3Y-2-N220VAC-60M Without socket 220VAC 60min 1 US $2.12 Order Unfold
6 H3Y-2-N110VAC-30S Without socket 110VAC 30s 1 US $2.12 Order
7 H3Y-2-N110VAC-60S Without socket 110VAC 60s 1 US $2.12 Order
8 H3Y-2-N110VAC-30M Without socket 110VAC 30min 1 US $2.12 Order
9 H3Y-2-N110VAC-60M Without socket 110VAC 60min 1 US $2.12 Order
10 H3Y-2-N24VDC-30S Without socket 24VDC 30s 1 US $2.12 Order
11 H3Y-2-N24VDC-60S Without socket 24VDC 60s 1 US $2.12 Order
12 H3Y-2-N24VDC-30M Without socket 24VDC 30min 1 US $2.12 Order
13 H3Y-2-N24VDC-60M Without socket 24VDC 60min 1 US $2.12 Order
14 H3Y-2-N12VDC-30S Without socket 12VDC 30s 1 US $2.12 Order
15 H3Y-2-N12VDC-60S Without socket 12VDC 60s 1 US $2.12 Order
16 H3Y-2-N12VDC-30M Without socket 12VDC 30min 1 US $2.12 Order
17 H3Y-2-N12VDC-60M Without socket 12VDC 60min 1 US $2.12 Order
18 H3Y-2-S220VAC-30S With socket 220VAC 30s 1 US $2.38 Order
19 H3Y-2-S220VAC-60S With socket 220VAC 60s 1 US $2.38 Order
20 H3Y-2-S220VAC-5M With socket 220VAC 5min 1 US $2.38 Order
21 H3Y-2-S220VAC-30M With socket 220VAC 30min 1 US $2.38 Order
22 H3Y-2-S220VAC-60M With socket 220VAC 60min 1 US $2.38 Order
23 H3Y-2-S110VAC-30S With socket 110VAC 30s 1 US $2.38 Order
24 H3Y-2-S110VAC-60S With socket 110VAC 60s 1 US $2.38 Order
25 H3Y-2-S110VAC-30M With socket 110VAC 30min 1 US $2.38 Order
26 H3Y-2-S110VAC-60M With socket 110VAC 60min 1 US $2.38 Order
27 H3Y-2-S24VDC-30S With socket 24VDC 30s 1 US $2.38 Visiting...
28 H3Y-2-S24VDC-60S With socket 24VDC 60s 1 US $2.38 Order
29 H3Y-2-S24VDC-30M With socket 24VDC 30min 1 US $2.38 Order
30 H3Y-2-S24VDC-60M With socket 24VDC 60min 1 US $2.38 Order
31 H3Y-2-S12VDC-30S With socket 12VDC 30s 1 US $2.38 Order
32 H3Y-2-S12VDC-60S With socket 12VDC 60s 1 US $2.38 Order
33 H3Y-2-S12VDC-30M With socket 12VDC 30min 1 US $2.38 Order
34 H3Y-2-S12VDC-60M With socket 12VDC 60min 1 US $2.38 Order
Packaging Details
Product quantity: 1pc
Package weight: 0.12kg
Package size: 10 x 10 x 6 cm
