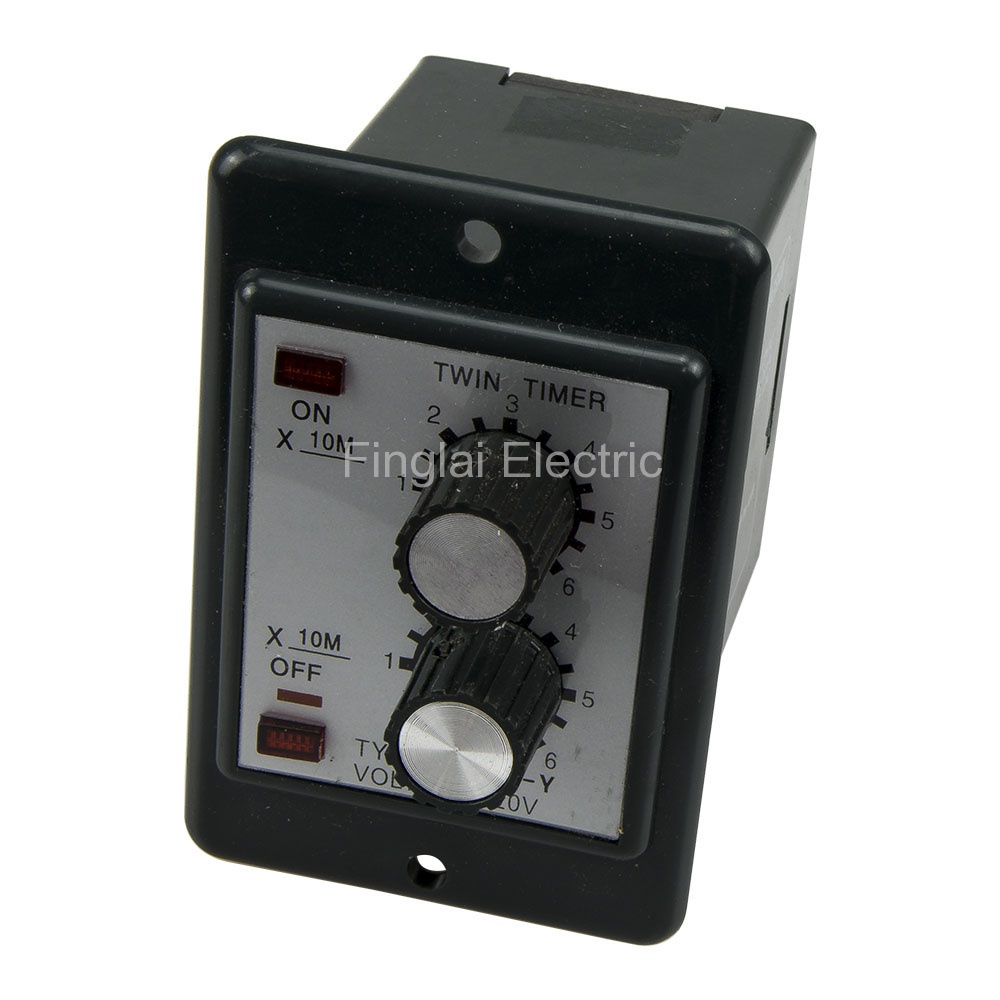

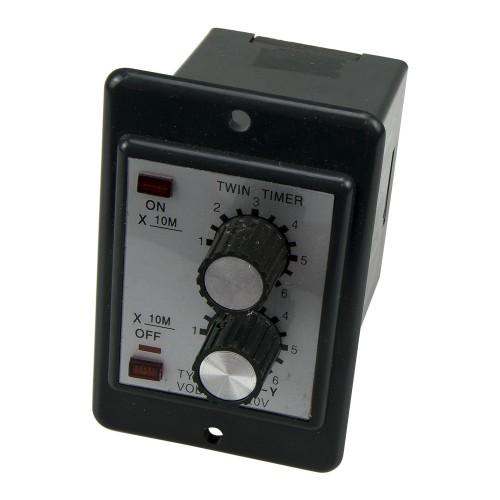

ATDV-Y AC 220V 60min on 60min off range repeat cycle SPDT time relay twin timer with socket

Product features
Mouse over to zoom in
ATDV-Y AC 220V 60min on 60min off range repeat cycle SPDT time relay twin timer with socket
Price: US $5.97 / piece
Model number: ATDV-Y-S220VAC-60M-60M
Product name: Time relay
Socket:
Without socket
US $5.77With socket
US $5.97
Supply voltage:
220VAC
Delay time:
30s*30s
US $5.9760s*60s
US $5.9730min*30min
US $5.9760min*60min
US $5.97
Deliver to:
Shipping:
US $10.1via
Estimated Delivery Time: 9-15 days
Quantity:
Total price:US $16.07
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Contact form and delay time
Model numberContact formDelay timeOnline store:
ATDV-NRepeat cycle SPDT3*3/6*6/12*12/30*30/60*60s;3*3/6*6/12*12/30*30/60*60min
ATDV-YRepeat cycle SPDT3*3/6*6/12*12/30*30/60*60s;3*3/6*6/12*12/30*30/60*60minVisiting...
▇ ATDV-Y time relay model number legend
▇ General
Model number ATDV
Supply voltage 12, 24, 36, 48, 110, 220 or 380 Vac, 50/60 Hz; 12 or 24 Vdc
Tolerance -15% ... 10% at AC and -10% ... 10% at DC of rated supply voltage
Power consumption 3W max
Setting method Knob
Indication method LED
External dimensions 88x58x93 mm
Perforate dimensions 61 10x50 10 mm
Contact rating 3A@250Vac, 5A@28Vdc
Repeat accuracy ±0.3%, ±0.05 sec
Setting error ±0.5%, ±0.05 sec
Termination Octal plug-in (8 pin)
Matched socket PF083A
Mechanical life 1x106
Electrical life 1x105
Operating temperature 0 to 50 ℃ (32 to 122 ℉)
Operating humidity 95% RH max, non-condensing
Alias name ATDV timer
▇ ATDV-Y time relay child models
No Model Number Socket Supply Voltage Delay Time MOQ Unit Price Related Product
1 ATDV-Y-N220VAC-30S-30S Without socket 220VAC 30s*30s 1 US $5.77 Order
2 ATDV-Y-N220VAC-60S-60S Without socket 220VAC 60s*60s 1 US $5.77 Order
3 ATDV-Y-N220VAC-30M-30M Without socket 220VAC 30min*30min 1 US $5.77 Order
4 ATDV-Y-N220VAC-60M-60M Without socket 220VAC 60min*60min 1 US $5.77 Order
5 ATDV-Y-S220VAC-30S-30S With socket 220VAC 30s*30s 1 US $5.97 Order Unfold
6 ATDV-Y-S220VAC-60S-60S With socket 220VAC 60s*60s 1 US $5.97 Order
7 ATDV-Y-S220VAC-30M-30M With socket 220VAC 30min*30min 1 US $5.97 Order
8 ATDV-Y-S220VAC-60M-60M With socket 220VAC 60min*60min 1 US $5.97 Visiting...
Packaging Details
Product quantity: 1pc
Package weight: 0.33kg
Package size: 14.5 x 8.5 x 10.5 cm
