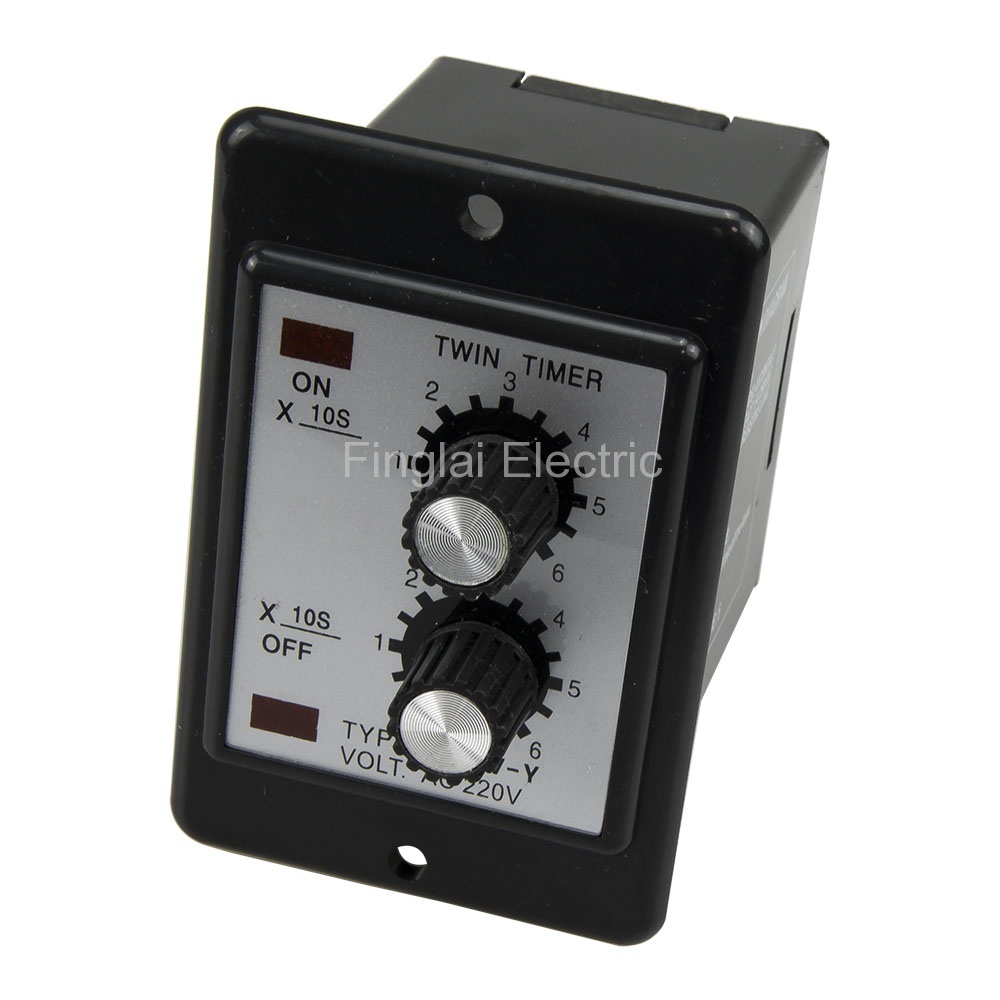

ATDV-Y AC 220V 60s on 60s off range repeat cycle SPDT time relay twin timer
Product features
Mouse over to zoom in
ATDV-Y AC 220V 60s on 60s off range repeat cycle SPDT time relay twin timer
Price: US $5.77 / piece
Model number: ATDV-Y-N220VAC-60S-60S
Product name: Time relay
Deliver to:
Shipping:
US $9.38via
Estimated Delivery Time: 9-15 days
Total price:US $15.15
Buy Now
Add to Cart
Inquire
Payment:PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Contact form and delay time
Model number | Contact form | Delay time | Online store:
|
ATDV-N | Repeat cycle SPDT | 3*3/6*6/12*12/30*30/60*60s;3*3/6*6/12*12/30*30/60*60min | |
ATDV-Y | Repeat cycle SPDT | 3*3/6*6/12*12/30*30/60*60s;3*3/6*6/12*12/30*30/60*60min | Visiting... |
▇ ATDV-Y time relay model number legend
▇ General
Model number |
ATDV |
Supply voltage |
12, 24, 36, 48, 110, 220 or 380 Vac, 50/60 Hz; 12 or 24 Vdc |
Tolerance |
-15% ... 10% at AC and -10% ... 10% at DC of rated supply voltage |
Power consumption |
3W max |
Setting method |
Knob |
Indication method |
LED |
External dimensions |
88x58x93 mm |
Perforate dimensions |
61 10x50 10 mm |
Contact rating |
3A@250Vac, 5A@28Vdc |
Repeat accuracy |
±0.3%, ±0.05 sec |
Setting error |
±0.5%, ±0.05 sec |
Termination |
Octal plug-in (8 pin) |
Matched socket |
PF083A |
Mechanical life |
1x106 |
Electrical life |
1x105 |
Operating temperature |
0 to 50 ℃ (32 to 122 ℉) |
Operating humidity |
95% RH max, non-condensing |
Alias name |
ATDV timer |
▇ ATDV-Y time relay child models
No |
Model Number |
Socket |
Supply Voltage |
Delay Time |
MOQ |
Unit Price |
Related Product |
1 |
ATDV-Y-N220VAC-30S-30S |
Without socket |
220VAC |
30s*30s |
1 |
US $5.77 |
Order |
2 |
ATDV-Y-N220VAC-60S-60S |
Without socket |
220VAC |
60s*60s |
1 |
US $5.77 |
Visiting... |
3 |
ATDV-Y-N220VAC-30M-30M |
Without socket |
220VAC |
30min*30min |
1 |
US $5.77 |
Order |
4 |
ATDV-Y-N220VAC-60M-60M |
Without socket |
220VAC |
60min*60min |
1 |
US $5.77 |
Order |
5 |
ATDV-Y-S220VAC-30S-30S |
With socket |
220VAC |
30s*30s |
1 |
US $5.97 |
Order Unfold |
6 |
ATDV-Y-S220VAC-60S-60S |
With socket |
220VAC |
60s*60s |
1 |
US $5.97 |
Order |
7 |
ATDV-Y-S220VAC-30M-30M |
With socket |
220VAC |
30min*30min |
1 |
US $5.97 |
Order |
8 |
ATDV-Y-S220VAC-60M-60M |
With socket |
220VAC |
60min*60min |
1 |
US $5.97 |
Order |
Packaging Details
Product quantity: 1pc
Package weight: 0.29kg
Package size: 14.5 x 8.5 x 10.5 cm
