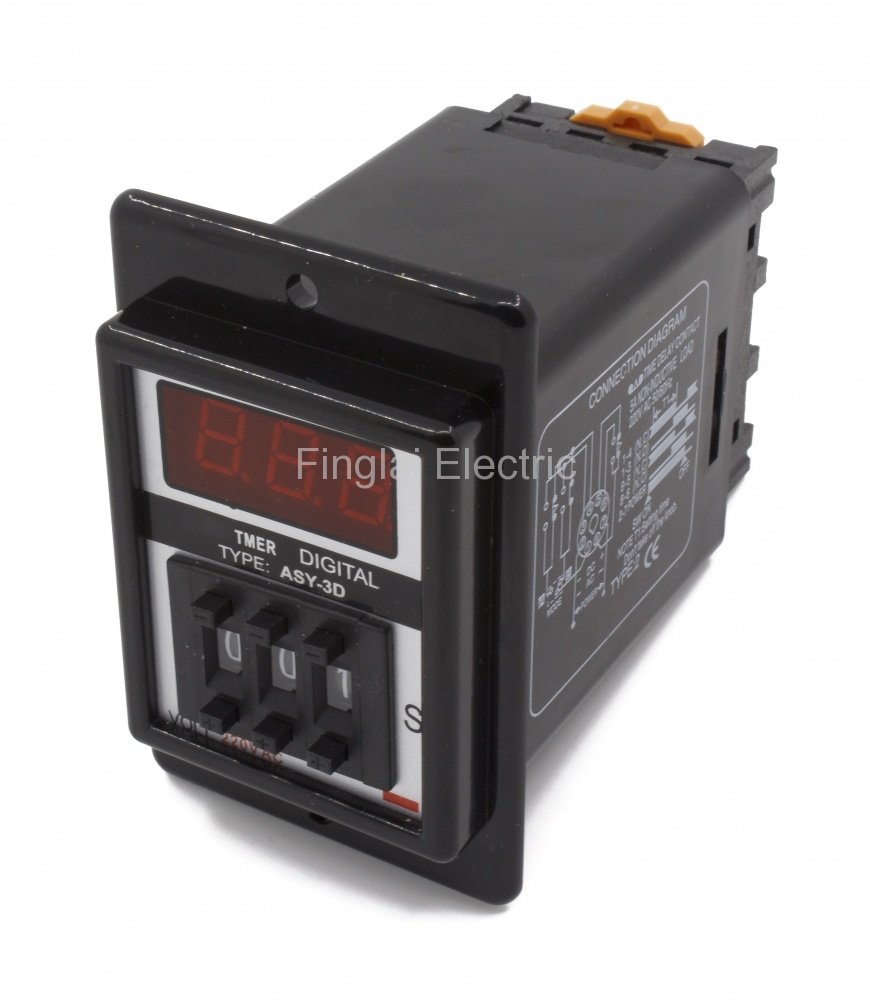

ASY-3D AC 220V 999s on delay DPDT black case digital time relay with socket base

1 sold
Product features
Mouse over to zoom in
ASY-3D AC 220V 999s on delay DPDT black case digital time relay with socket base
Price: US $5.17 / piece
Model number: ASY-3D-BS220VAC-999S
Product name: Time relay
Case color:
Black
US $5.17White
US $5.17
Socket:
Without socket
US $4.98With socket
US $5.17
Supply voltage:
220VAC
Delay time:
99.9s
US $5.17999s
US $5.1799.9min
US $5.17999min
US $5.17
Deliver to:
Shipping:
US $14.49via
Estimated Delivery Time: 9-17 days
Quantity:
Total price:US $19.66
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Contact form and delay time
Model numberContact formDelay timeOnline store:
ASY-2DOn-delay DPDT9.9s/99s/9.9min/99minUS $6.04 - 6.83/ pieceOrder (16)
ASY-3DOn-delay DPDT99.9s/999s/99.9min/999minVisiting...
ASY-3SMOn-delay DPDT0.1s-999minUS $7.16 - 7.32/ pieceOrder (2)
▇ ASY-3D time relay model number legend
ASY-3D
Parent Model Number
-B
Case color
-B: Black
-W: White
S
Socket
N: Without socket
S: With socket
220VAC
Supply voltage
220VAC: 220VAC
-999S
Delay time
-99.9S: 99.9s
-999S: 999s
-99.9M: 99.9min
-999M: 999min
▇ General
Model number ASY
Supply voltage 12, 24, 36, 48, 110, 220 or 380 Vac, 50/60 Hz; 12 or 24 Vdc
Tolerance -15% ... 10% at AC and -10% ... 10% at DC of rated supply voltage
Power consumption 3W max
Setting method Dial switch
Indication method 8-segment digital display with LED
External dimensions 90x58x88
Perforate dimensions 63 10x51 10 mm
Contact rating 5A@250Vac, 5A@28Vdc
Repeat accuracy ±0.3%, ±0.05 sec
Setting error ±0.5%, ±0.05 sec
Termination 8 pins
Matched socket PF083A
Mechanical life 1x106
Electrical life 1x105
Operating temperature -10 to 55 ℃ (14 to 131 ℉)
Operating humidity 45-80% RH max, non-condensing
Alias name ASY digital timer
▇ ASY-3D time relay child models
No Model Number Case Color Socket Supply Voltage Delay Time MOQ Unit Price Related Product
1 ASY-3D-BN220VAC-99.9S Black Without socket 220VAC 99.9s 1 US $4.98 Order
2 ASY-3D-BN220VAC-999S Black Without socket 220VAC 999s 1 US $4.98 Order
3 ASY-3D-BN220VAC-99.9M Black Without socket 220VAC 99.9min 1 US $4.98 Order
4 ASY-3D-BN220VAC-999M Black Without socket 220VAC 999min 1 US $4.98 Order
5 ASY-3D-BS220VAC-99.9S Black With socket 220VAC 99.9s 1 US $5.17 Order Unfold
6 ASY-3D-BS220VAC-999S Black With socket 220VAC 999s 1 US $5.17 Visiting...
7 ASY-3D-BS220VAC-99.9M Black With socket 220VAC 99.9min 1 US $5.17 Order
8 ASY-3D-BS220VAC-999M Black With socket 220VAC 999min 1 US $5.17 Order
9 ASY-3D-WN220VAC-99.9S White Without socket 220VAC 99.9s 1 US $4.98 Order
10 ASY-3D-WN220VAC-999S White Without socket 220VAC 999s 1 US $4.98 Order
11 ASY-3D-WN220VAC-99.9M White Without socket 220VAC 99.9min 1 US $4.98 Order
12 ASY-3D-WN220VAC-999M White Without socket 220VAC 999min 1 US $4.98 Order
13 ASY-3D-WS220VAC-99.9S White With socket 220VAC 99.9s 1 US $5.17 Order
14 ASY-3D-WS220VAC-999S White With socket 220VAC 999s 1 US $5.17 Order
15 ASY-3D-WS220VAC-99.9M White With socket 220VAC 99.9min 1 US $5.17 Order
16 ASY-3D-WS220VAC-999M White With socket 220VAC 999min 1 US $5.17 Order
Packaging Details
Product quantity: 1pc
Package weight: 0.35kg
Package size: 14.5 x 8.5 x 10.5 cm
