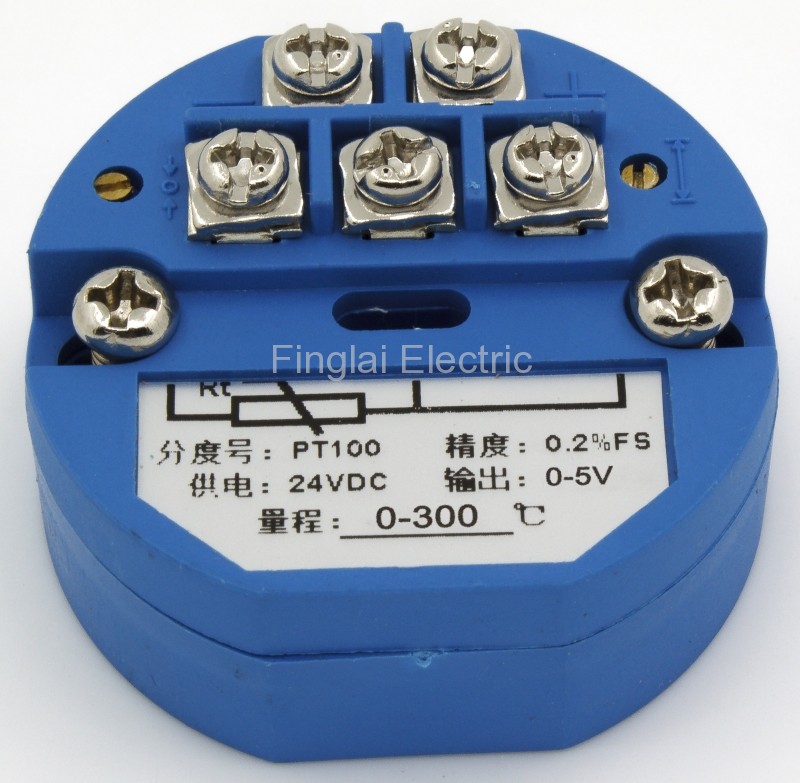

FTT01-V5 PT100 input 0-5V output 0-300℃ temperature transmitter

Product features
Mouse over to zoom in
FTT01-V5 PT100 input 0-5V output 0-300℃ temperature transmitter
Price: US $7.11 / piece
Model number: FTT01-V5-0T300
Product name: Temperature transmitter
Deliver to:
Shipping:
US $5.53via
Estimated Delivery Time: 12-17 days
Quantity:



Total price:US $12.64
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
Model number and parameters
Model numberSame modelInputOutputOnline store:
FTT01-C20SBWZPT1004-20mAUS $2.96 - 3.55/ pieceOrder (20)
FTT01-V10SBWZPT1000-10VUS $6.7/ pieceOrder (16)
FTT01-V5SBWZPT1000-5VVisiting...
FTT01-V5 temperature transmitter model number legend
General
Model number FTT01 series
Output 4-20mA, 0-10v, 0-5v
Input PT100 (single-wire resistance: ≤35Ω, three-wire system): BoltPress springProbePolish rodPolish rod waterproofPolish rod waterproof anticorrosiveSpecial thread waterproof probe)
Measured range -20-60℃, -20-80℃, -50-50℃, -50-100℃, -50-150℃, -50-200℃, 0-50℃, 0-100℃, 0-150℃, 0-200℃, 0-250℃, 0-300℃, 0-400℃, 0-500℃, 0-600℃
Load
250Ω or 500Ω (4-20mA wire resistance<80Ω)
Excitation current ≤800uA
Accuracy ±0.2%FS 4-20MA;±0.5%FS 0-10v 0-5v
Temperature Coefficient Input 100℃ max:≤150ppm/KFS; Input 150℃ min:≤150ppm/KFS
Power supply 24VDC±10%
Power Supply Effect 104ppm/VFS
Protection Polarity protection, over-voltage protection
Output current limit 26mA
Housing material ABS/PA66 (UL94)
Mounting screws M4x2
Terminal screw M3x5
Weight 45g
Operating temperature -20-85 ℃
Operating Humidity 98% RH max, non-condensing
Working atmospheric pressure 80-110kPa
Storage temperature -40-105℃
Instructions 1. When 4-20mA output, the load resistance with 1% accuracy, 0.5-watt metal film resistors can meet the basic requirements. But need to be adjusted the transmitter's two potentiometers, because the resistance's error is larger.
2. Adjustment potentiometer instructions:
Left potentiometer: Zero potentiometer, clockwise -> increase, counterclockwise -> decrease.
Right potentiometer: AM potentiometer, clockwise -> decrease, counterclockwise -> increase.
Alias name FTT01 series temperature amplifier templifier
FTT01-V5 temperature transmitter child models
No Model Number Measured Range MOQ Unit Price Related Product
1 FTT01-V5-N20T60 -20-60℃ 1 US $7.11 Order
2 FTT01-V5-N20T80 -20-80℃ 1 US $7.11 Order
3 FTT01-V5-N20T100 -20-100℃ 1 US $7.11 Order
4 FTT01-V5-N50T50 -50-50℃ 1 US $7.11 Order
5 FTT01-V5-N50T100 -50-100℃ 1 US $7.11 Order Unfold
6 FTT01-V5-N50T150 -50-150℃ 1 US $7.11 Order
7 FTT01-V5-N50T200 -50-200℃ 1 US $7.11 Order
8 FTT01-V5-0T50 0-50℃ 1 US $7.11 Order
9 FTT01-V5-0T100 0-100℃ 1 US $7.11 Order
10 FTT01-V5-0T150 0-150℃ 1 US $7.11 Order
11 FTT01-V5-0T200 0-200℃ 1 US $7.11 Order
12 FTT01-V5-0T250 0-250℃ 1 US $7.11 Order
13 FTT01-V5-0T300 0-300℃ 1 US $7.11 Visiting...
14 FTT01-V5-0T400 0-400℃ 1 US $7.11 Order
15 FTT01-V5-0T500 0-500℃ 1 US $7.11 Order
16 FTT01-V5-0T600 0-600℃ 1 US $7.11 Order
FTT01-C series temperature transmitter wiring diagram (Left PT100)
FTT01-C series temperature transmitter wiring diagram (Right PT100)
FTT01-V series temperature transmitter wiring diagram (Left PT100)
FTT01-V series temperature transmitter wiring diagram (Right PT100)
Packaging Details
Product quantity: 1pc
Package weight: 0.06kg
Package size: 10 x 10 x 3 cm
