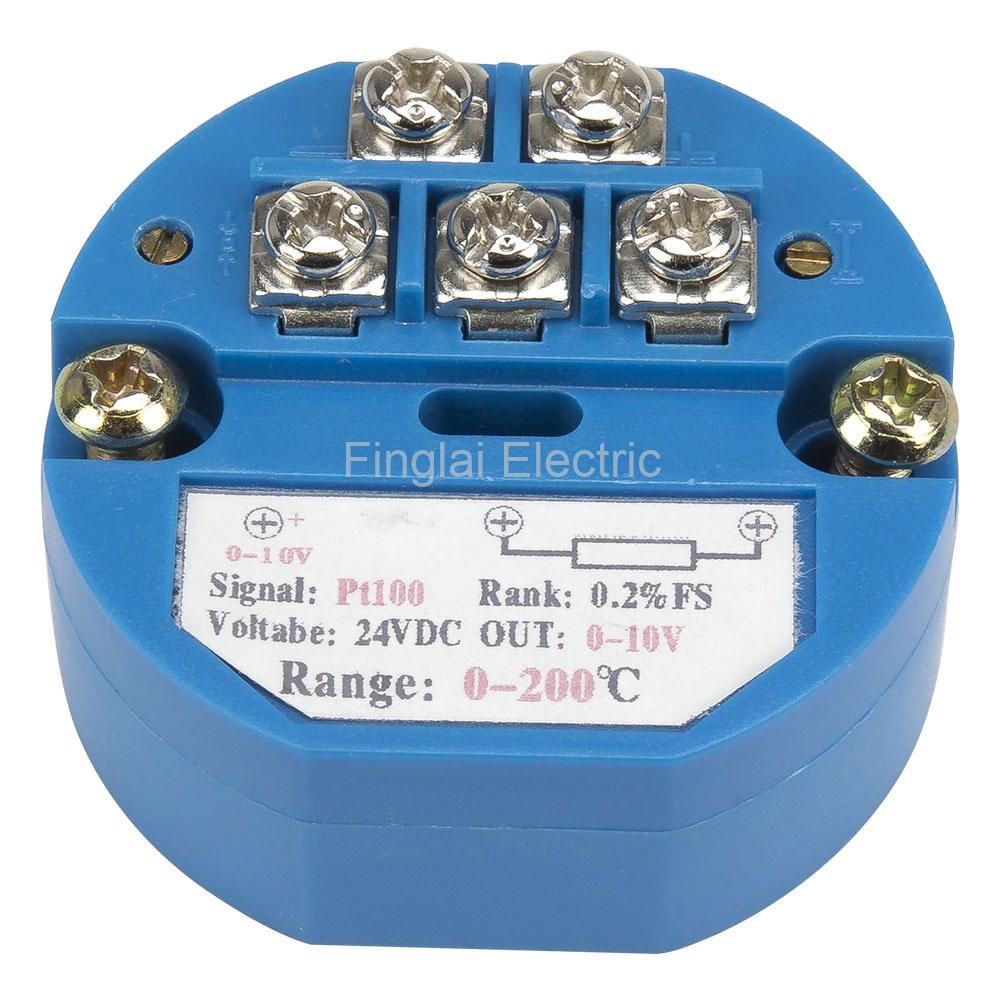

FTT01-V10 PT100 input 0-10V output 0-200℃ temperature transmitter
8 sold
Product features
Mouse over to zoom in
FTT01-V10 PT100 input 0-10V output 0-200℃ temperature transmitter
Price: US $6.7 / piece
Model number: FTT01-V10-0T200
Product name: Temperature transmitter
Deliver to:
Shipping:
US $6.07via
Estimated Delivery Time: 9-17 days
Total price:US $12.77
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
| Model number | Same model | Input | Output | Online store: |
| FTT01-C20 | SBWZ | PT100 | 4-20mA | US $2.96 - 3.55/ pieceOrder (20) |
| FTT01-V10 | SBWZ | PT100 | 0-10V | Visiting... |
| FTT01-V5 | SBWZ | PT100 | 0-5V | US $7.11/ pieceOrder (16) |
▇ FTT01-V10 temperature transmitter model number legend
FTT01-V10
Parent Model Number
▇ General
| Model number | FTT01 series |
| Output | 4-20mA, 0-10v, 0-5v |
| Input | PT100 (single-wire resistance: ≤35Ω, three-wire system): Bolt, Press spring, Probe, Polish rod, Polish rod waterproof, Polish rod waterproof anticorrosive, Special thread waterproof probe) |
| Measured range | -20-60℃, -20-80℃, -50-50℃, -50-100℃, -50-150℃, -50-200℃, 0-50℃, 0-100℃, 0-150℃, 0-200℃, 0-250℃, 0-300℃, 0-400℃, 0-500℃, 0-600℃ |
Load |
250Ω or 500Ω (4-20mA wire resistance<80Ω) |
| Excitation current | ≤800uA |
| Accuracy | ±0.2%FS 4-20MA;±0.5%FS 0-10v 0-5v |
| Temperature Coefficient | Input 100℃ max:≤150ppm/KFS; Input 150℃ min:≤150ppm/KFS |
| Power supply | 24VDC±10% |
| Power Supply Effect | 104ppm/VFS |
| Protection | Polarity protection, over-voltage protection |
| Output current limit | 26mA |
| Housing material | ABS/PA66 (UL94) |
| Mounting screws | M4x2 |
| Terminal screw | M3x5 |
| Weight | 45g |
| Operating temperature | -20-85 ℃ |
| Operating Humidity | 98% RH max, non-condensing |
| Working atmospheric pressure | 80-110kPa |
| Storage temperature | -40-105℃ |
| Instructions | 1. When 4-20mA output, the load resistance with 1% accuracy, 0.5-watt metal film resistors can meet the basic requirements. But need to be adjusted the transmitter's two potentiometers, because the resistance's error is larger. 2. Adjustment potentiometer instructions: Left potentiometer: Zero potentiometer, clockwise -> increase, counterclockwise -> decrease. Right potentiometer: AM potentiometer, clockwise -> decrease, counterclockwise -> increase. |
| Alias name | FTT01 series temperature amplifier templifier |
▇ FTT01-V10 temperature transmitter child models
| No | Model Number | Measured Range | MOQ | Unit Price | Related Product |
| 1 | FTT01-V10-N20T60 | -20-60℃ | 1 | US $6.7 | Order |
| 2 | FTT01-V10-N20T80 | -20-80℃ | 1 | US $6.7 | Order |
| 3 | FTT01-V10-N20T100 | -20-100℃ | 1 | US $6.7 | Order |
| 4 | FTT01-V10-N50T50 | -50-50℃ | 1 | US $6.7 | Order |
| 5 | FTT01-V10-N50T100 | -50-100℃ | 1 | US $6.7 | Order Unfold |
FTT01-C series temperature transmitter wiring diagram (Left PT100)
FTT01-C series temperature transmitter wiring diagram (Right PT100)
FTT01-V series temperature transmitter wiring diagram (Left PT100)
FTT01-V series temperature transmitter wiring diagram (Right PT100)
Packaging Details
Product quantity: 1pc
Package weight: 0.06kg
Package size: 10 x 10 x 3 cm
