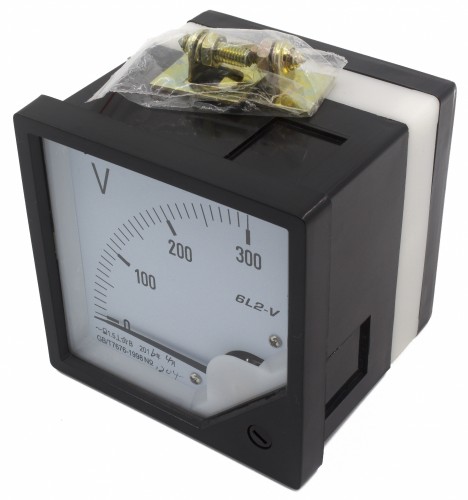

6L2-V300 80*80mm 300V pointer AC voltmeter 6L2 series analog volt meter 80x80 mm size
4 sold
Product features
Mouse over to zoom in
6L2-V300 80*80mm 300V pointer AC voltmeter 6L2 series analog volt meter 80x80 mm size
Price: US $3.08 / piece
Model number: 6L2-V300
Product name: Pointer ammeter and voltmeter
Deliver to:
Shipping:
US $15.95via
Estimated Delivery Time: 9-17 days
Total price:US $19.03
Buy Now
Add to Cart
Inquire
Payment:PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ External dimensions and parameters
| Model number | Type | Range | Online store:
|
| 6L2-A | AC Ammeter | 10, 20, 30, 50, 100, 200, 300, 500mA; 1, 2, 3, 5, 10, 15, 20, 30, 50A;
30/5, 50/5, 75/5, 100/5, 150/5, 200/5, 250/5, 300/5, 400/5, 500/5, 600/5, 800/5, 1K/5, 1.5K/5, 2K/5, 3K/5A, 3.5K/5A | US $3.08/ pieceOrder (17) |
| 6L2-V | AC Voltmeter | 3, 5, 15, 20, 10, 30, 50, 100, 150, 250, 300, 450, 500, 600, 1KV
6K/100, 10K/100, 35/100V | Visiting... |
| 6L2-HZ | Frequency meter | 45-55Hz 100V, 45-55Hz 220V, 45-55Hz 380V, 45-65Hz 380V, 45-65Hz 500V | US $7.05/ pieceOrder (1) |
| 6L2-W | Power meter | 600KW 380V 1K/5A | |
| 6L2-COS | Power factor meter | 5A 380V, 5A 100V | US $6.6/ pieceOrder (1) |
▇ 6L2-V pointer voltmeter model number legend
▇ General
| Model number |
6L2 |
| Accuracy level |
1.5 level and 2.5 level |
| External dimensions |
80x80x73 mm |
| Perforation dimensions |
76 10x76 10 mm |
| Matched current transformer |
BH-0.66-30 |
| Resistance to mechanical forces |
Can withstand 30m/s2 wind; Impact frequency 80-120 times/min, 2h transport bumping |
| Dielectric strength |
2KV 50Hz for 1min |
| Voltage affection |
The measured tolerance don't exceed base tolerance when the measured value changed 15% |
| Work position |
Vertical |
| Operating temperature |
-20 to 40 ℃ (-4 to 104 ℉) |
| Operating humidity |
80% RH max, non-condensing |
▇ 6L2-V pointer voltmeter child models
| No |
Model Number |
Measured Range |
MOQ |
Unit Price |
Related Product |
| 1 |
6L2-V50 |
50V |
1 |
US $3.08 |
Order |
| 2 |
6L2-V100 |
100V |
1 |
US $3.08 |
Order |
| 3 |
6L2-V150 |
150V |
1 |
US $3.08 |
Order |
| 4 |
6L2-V250 |
250V |
1 |
US $3.08 |
Order |
| 5 |
6L2-V300 |
300V |
1 |
US $3.08 |
Visiting... Unfold |
| 6 |
6L2-V450 |
450V |
1 |
US $3.08 |
Order |
| 7 |
6L2-V500 |
500V |
1 |
US $3.08 |
Order |
| 8 |
6L2-V600 |
600V |
1 |
US $3.08 |
Order |
| 9 |
6L2-V750 |
750V |
1 |
US $3.08 |
Order |
| 10 |
6L2-V1K/100 |
1K/100 |
1 |
US $3.08 |
Order |
| 11 |
6L2-V6K/100 |
6K/100 |
1 |
US $3.08 |
Order |
| 12 |
6L2-V10K/100 |
10K/100 |
1 |
US $3.08 |
Order |
Packaging Details
Product quantity: 1pc
Package weight: 0.4kg
Package size: 21 x 11 x 14 cm
