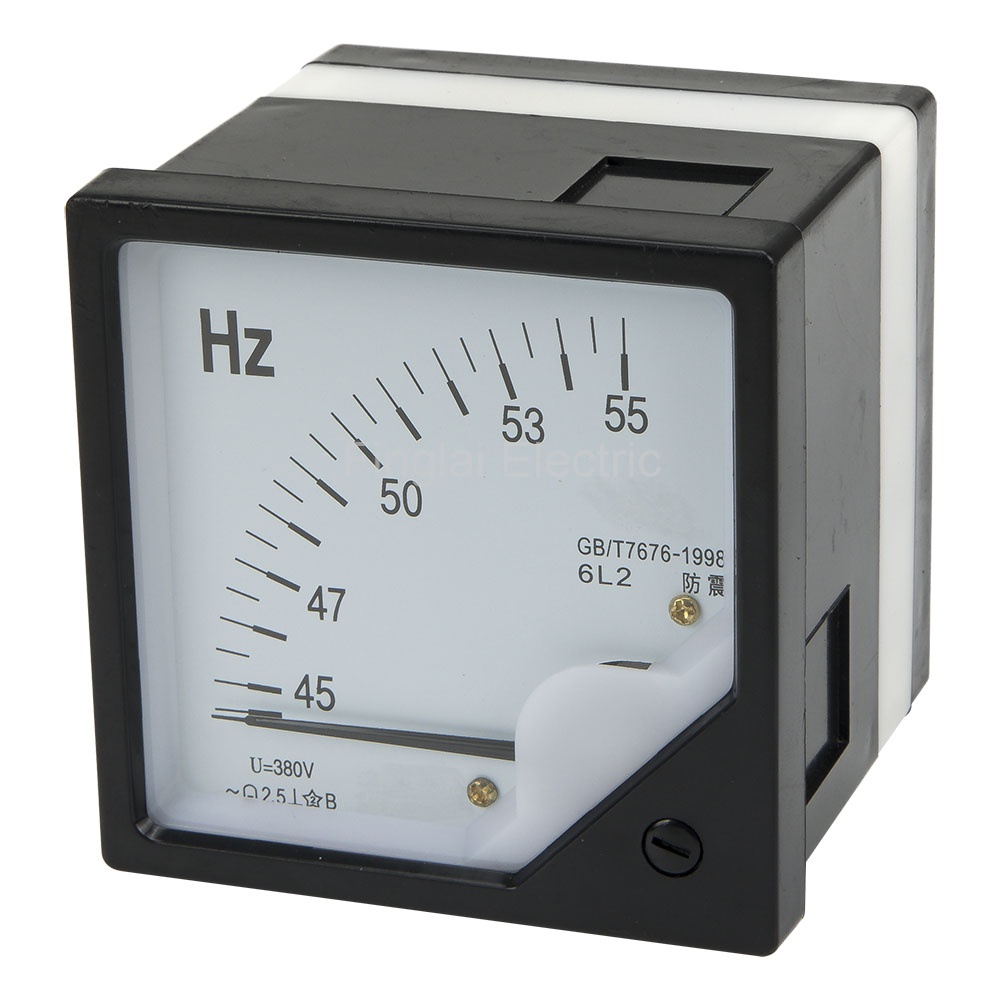

6L2-Hz 80*80mm pointer AC analog frequency meter
Product features
Product description
▇ External dimensions and parameters
| Model number | Type | Range | Online store: |
| 6L2-A | Ammeter | 10, 20, 30, 50, 100, 200, 300, 500mA; 1, 2, 3, 5, 10, 15, 20, 30, 50A; 30/5, 50/5, 75/5, 100/5, 150/5, 200/5, 250/5, 300/5, 400/5, 500/5, 600/5, 800/5, 1K/5, 1.5K/5, 2K/5, 3K/5A, 3.5K/5A | US $3.08/ pieceOrder (14) |
| 6L2-V | Voltmeter | 3, 5, 15, 20, 10, 30, 50, 100, 150, 250, 300, 450, 500, 600, 1KV 6K/100, 10K/100, 35/100V | US $3.08/ pieceOrder (9) |
| 6L2-Hz | Frequency meter | 45-55Hz 100V, 45-55Hz 220V, 45-55Hz 380V, 45-65Hz 380V, 45-65Hz 500V | Visiting... |
| 6L2-W | Power meter | 600KW 380V 1K/5A | |
| 6L2-COSφ | Factor meter | 5A 380V, 5A 100V |
▇ General
| Model number | 6L2 |
| Accuracy level | 1.5 level and 2.5 level |
| External dimensions | 80x80x73 mm |
| Perforation dimensions | 76 10x76 10 mm |
| Matched current transformer | BH-0.66-30 |
| Resistance to mechanical forces | Can withstand 30m/s2 wind; Impact frequency 80-120 times/min, 2h transport bumping |
| Dielectric strength | 2KV 50Hz for 1min |
| Voltage affection | The measured tolerance don't exceed base tolerance when the measured value changed 15% |
| Work position | Vertical |
| Operating temperature | -20 to 40 ℃ (-4 to 104 ℉) |
| Operating humidity | 80% RH max, non-condensing |
Packaging Details
Product quantity: 1pc
Package weight: 0.4kg
Package size: 21 x 11 x 14 cm
