E5C2 series 48*48mm pointer temperature controllers
Main child models
Mouse over to zoom in
Price: US $6.33 / piece

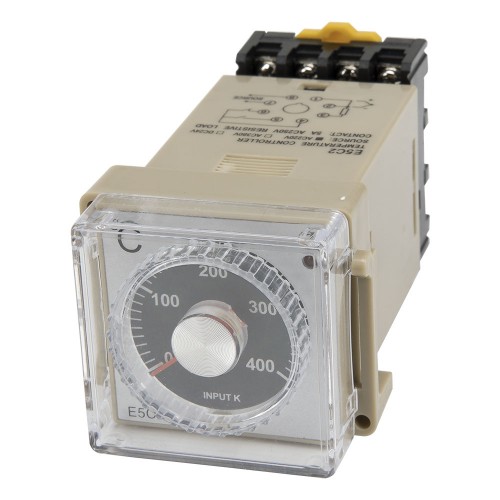

Model number: E5C2-R20K400-S220VAC
Product name: General temperature controller
Output type:
Electromagnetic relayControl model:
ON/OFFProduct description
▇ External dimensions and Perforation dimensions
| Model number | External dimensions | Perforation dimensions | Online store: |
| E5C2 | 48x48x100 mm | 44 10x44 10 mm | Visiting... |
▇ E5C2 general temperature controller model number legend
E5C2
Parent Model Number
▇ General
| Model number | E5C2 series |
| Accuracy | 1.5% of full scale |
| Supply voltage | 110Vac, 220Vac, 50/60Hz |
| Input type | Thermocouple: K |
| Output type | Electromagnetic relay, SSR |
| Power consumption | Less than 5 VA |
| Control method | ON/OFF Control |
| Setting method | Knob |
| Indication method | LED indication |
| Alarms | No alarm |
| Operating temperature | 0 to 50 ℃ (32 to 122 ℉) |
| Operating humidity | 85% RH max, non-condensing |
▇ Output type and description
| Electromagnetic relay | Contact rating: 3A at 250Vac |
| Solid state relay | Contact rating can be selected, order separately (Single phase 40A, Three phase 40A) |
▇ Input type and measuring range
| K | 0-400℃ (Bolt, Press spring, Ring, Probe, Armor high temperature resistant, Special thread waterproof probe) |
▇ E5C2 general temperature controller child models
| No | Model Number | Output Type | Control Model | Input Type And Range | Socket | Supply Voltage | MOQ | Unit Price |
| 1 | E5C2-R20K400-S220VAC | Electromagnetic relay | ON/OFF | K (0-400℃) | With | 220VAC | 1 | US $6.33 |
| 2 | E5C2-R20K400-S110VAC | Electromagnetic relay | ON/OFF | K (0-400℃) | With | 110VAC | 1 | US $6.99 |
| 3 | E5C2-R20K400-N220VAC | Electromagnetic relay | ON/OFF | K (0-400℃) | Without | 220VAC | 1 | US $6.1 |
| 4 | E5C2-R20K400-N110VAC | Electromagnetic relay | ON/OFF | K (0-400℃) | Without | 110VAC | 1 | US $6.69 |
| 5 | E5C2-R20K600-S220VAC | Electromagnetic relay | ON/OFF | K (0-600℃) | With | 220VAC | 50 | US $6.44 |
| 6 | E5C2-R20K600-N220VAC | Electromagnetic relay | ON/OFF | K (0-600℃) | Without | 220VAC | 50 | US $6.21 |
| 7 | E5C2-R20K200-S220VAC | Electromagnetic relay | ON/OFF | K (0-200℃) | With | 220VAC | 1 | US $5.54 |
| 8 | E5C2-R20K200-N220VAC | Electromagnetic relay | ON/OFF | K (0-200℃) | Without | 220VAC | 1 | US $5.32 |
| 9 | E5C2-R20P-S220VAC | Electromagnetic relay | ON/OFF | PT100 | With | 220VAC | 1 | US $6.99 |
| 10 | E5C2-R20P-N220VAC | Electromagnetic relay | ON/OFF | PT100 | Without | 220VAC | 1 | US $6.69 |
