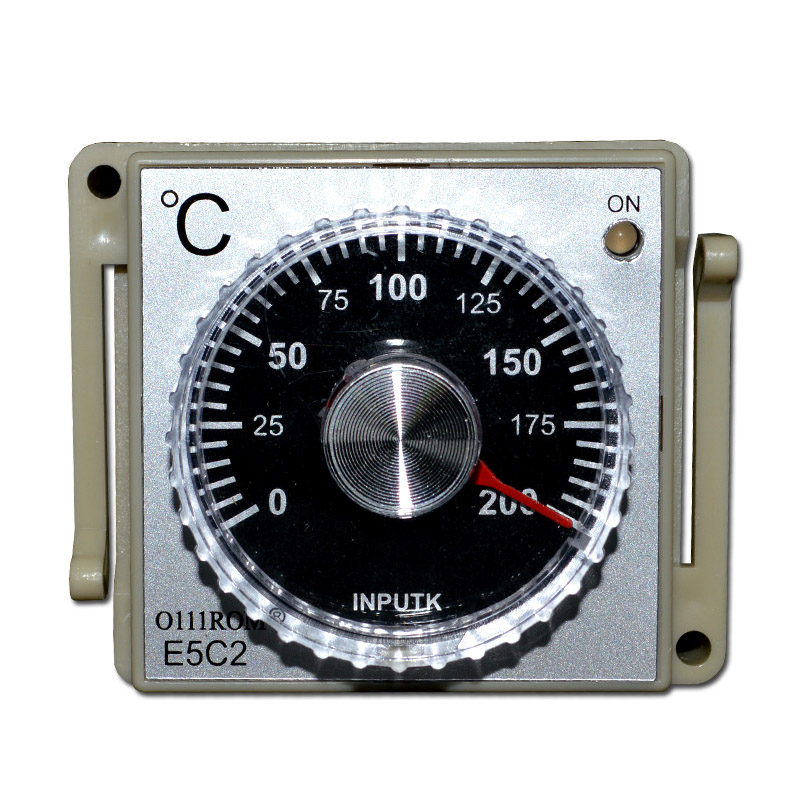

E5C2-R 48*48mm AC 220V relay main output K input 0-200℃ pointer temperature controller

Product features
Mouse over to zoom in
E5C2-R 48*48mm AC 220V relay main output K input 0-200℃ pointer temperature controller
Price: US $5.32 / piece
Model number: E5C2-R20K200-N220VAC
Product name: General temperature controller
Output type:
Electromagnetic relay
Control model:
ON/OFF
Input type and range:
K (0-400℃)
US $6.1K (0-600℃)
US $6.21K (0-200℃)
US $5.32PT100
US $6.69
Socket:
With
US $5.54Without
US $5.32
Supply voltage:
220VAC
US $5.32110VAC
Deliver to:
Shipping:
US $14.49via
Sorry, this item is no longer available!
Quantity:
Total price:US $19.81
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ External dimensions and Perforation dimensions
Model numberExternal dimensionsPerforation dimensionsOnline store:
E5C248x48x100 mm44 10x44 10 mmVisiting...
▇ E5C2 general temperature controller model number legend
E5C2
Parent Model Number
-R
Output type
-R: Electromagnetic relay
20
Control model
20: ON/OFF
K200
Input type and range
K400: K (0-400℃)
K600: K (0-600℃)
K200: K (0-200℃)
P: PT100
-N
Socket
-S: With
-N: Without
220VAC
Supply voltage
220VAC: 220VAC
110VAC: 110VAC
▇ General
Model number E5C2 series
Accuracy 1.5% of full scale
Supply voltage 110Vac, 220Vac, 50/60Hz
Current: 220VAC
Input type Thermocouple: K
Output type Electromagnetic relay, SSR
Current: Electromagnetic relay
Power consumption Less than 5 VA
Control method ON/OFF Control
Setting method Knob
Indication method LED indication
Alarms No alarm
Operating temperature 0 to 50 ℃ (32 to 122 ℉)
Operating humidity 85% RH max, non-condensing
▇ Output type and description
Electromagnetic relay Contact rating: 3A at 250Vac
Solid state relay Contact rating can be selected, order separately (Single phase 40A, Three phase 40A)
▇ Input type and measuring range
K 0-400℃ (Bolt, Press spring, Ring, Probe, Armor high temperature resistant, Special thread waterproof probe)
▇ E5C2 general temperature controller child models
No Model Number Output Type Control Model Input Type And Range Socket Supply Voltage MOQ Unit Price Related Product
1 E5C2-R20K400-S220VAC Electromagnetic relay ON/OFF K (0-400℃) With 220VAC 1 US $6.33 Order
2 E5C2-R20K400-S110VAC Electromagnetic relay ON/OFF K (0-400℃) With 110VAC 1 US $6.99 Order
3 E5C2-R20K400-N220VAC Electromagnetic relay ON/OFF K (0-400℃) Without 220VAC 1 US $6.1 Order
4 E5C2-R20K400-N110VAC Electromagnetic relay ON/OFF K (0-400℃) Without 110VAC 1 US $6.69 Order
5 E5C2-R20K600-S220VAC Electromagnetic relay ON/OFF K (0-600℃) With 220VAC 50 US $6.44 Order Unfold
6 E5C2-R20K600-N220VAC Electromagnetic relay ON/OFF K (0-600℃) Without 220VAC 50 US $6.21 Order
7 E5C2-R20K200-S220VAC Electromagnetic relay ON/OFF K (0-200℃) With 220VAC 1 US $5.54 Order
8 E5C2-R20K200-N220VAC Electromagnetic relay ON/OFF K (0-200℃) Without 220VAC 1 US $5.32 Visiting...
9 E5C2-R20P-S220VAC Electromagnetic relay ON/OFF PT100 With 220VAC 1 US $6.99 Order
10 E5C2-R20P-N220VAC Electromagnetic relay ON/OFF PT100 Without 220VAC 1 US $6.69 Order
Packaging Details
Product quantity: 1pc
Package weight: 0.35kg
Package size: 13 x 8 x 9 cm
