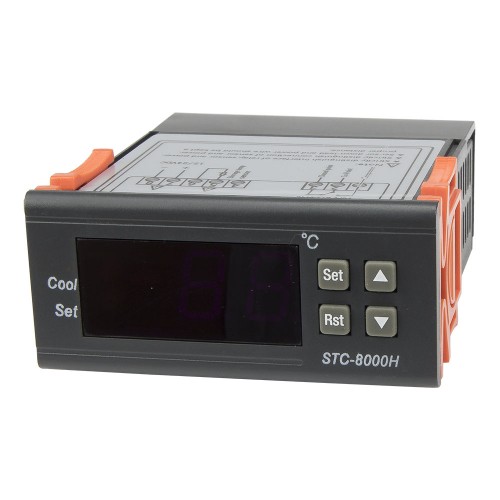

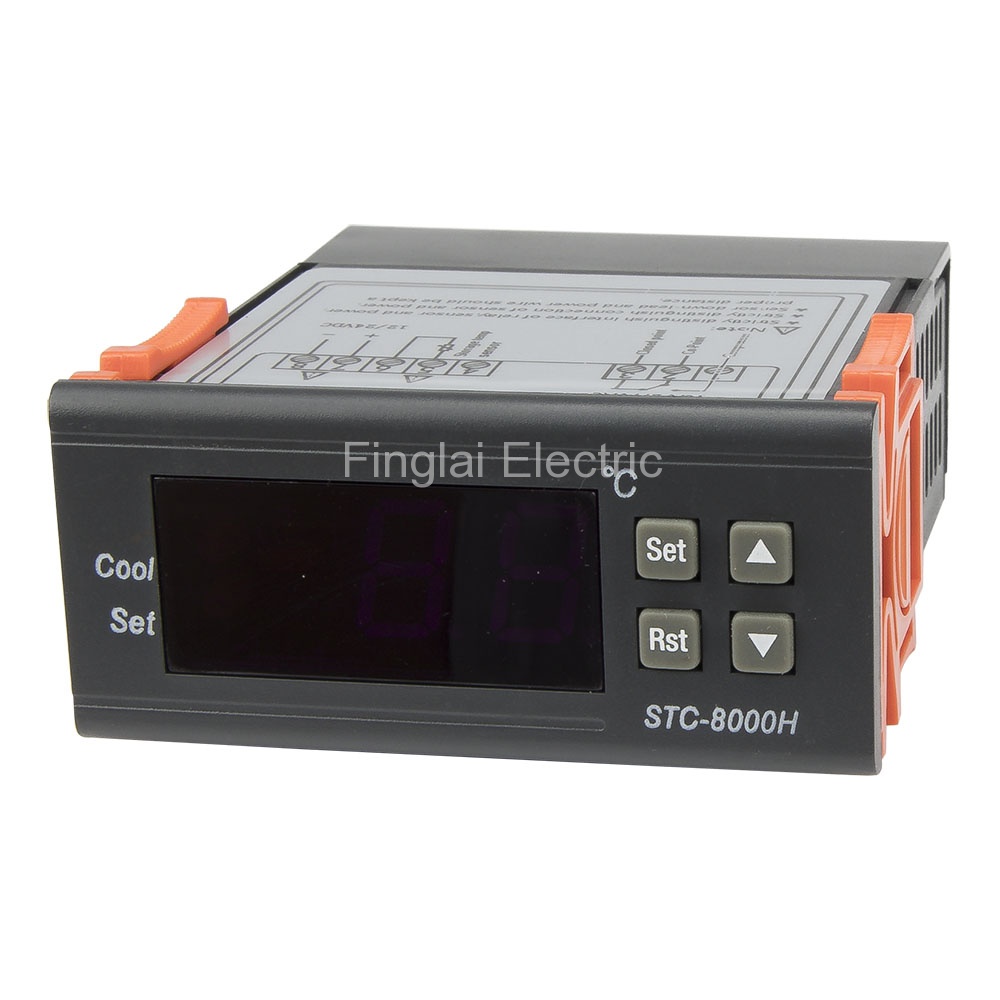

STC-8000H AC/DC 24V cooling temperature controller

Product features

Mouse over to zoom in

Price: US $10.11 / piece

Model number: STC-8000H-24V

Product name: Cooling temperature controller

Supply voltage:

Deliver to:

Shipping:

US $9.56via

Estimated Delivery Time: 9-15 days

Quantity:

Total price:US $19.67

Buy Now

Add to Cart

Inquire

Payment:

PayPal/Credit CardWESTERN UNIONBANK TRANSFER

Product description

▇ Model number and parameters

Model number	Main function	Online store:
STC-8000H	Cooling, single sensor, temperature correction	Visiting...

▇ STC-8000H cooling temperature controller model number legend

STC-8000H

Parent Model Number

-24V

Supply voltage

-220VAC: 220VAC

-110VAC: 110VAC

-24V: 24VAC/DC

-12V: 12VAC/DC

▇ General

Model number	STC-8000H
Measure range	-50 to 99 ℃
Setting range	-50 to 90 ℃
Resolution	1 ℃
Accuracy	±1 ℃ (-50 to 70 ℃), ±2℃ (Other)
Supply voltage	220Vac, 110Vac, 50/60Hz; 12Vac/dc, 24Vac/dc Current: 24VAC/DC
Power consumption	Less than 3W
Output types	One mechanical relay
Input types	1pc 2m cable NTC (included)
Panel size	75x34.5 mm
External dimensions	75x34.5x85 mm
Perforation dimensions	71¹₀x29¹₀ mm
Control method	ON/OFF Control
Setting method	Touch switch
Indication method	8-segment 3-digital display and LED indication
Front panel IP Rating	IP64
Operating temperature	0 to 55 ℃
Operating humidity	20% to 85% RH, non-condensing
Storage temperature	-30 to 75 ℃
Alias name	STC-8000H freezer temperature controller, defrost thermostat, freezer thermostat

▇ Output type and description

Electromagnetic relay for compressor

10A@250VAC

▇ STC-8000H cooling temperature controller child models

Packaging Details

Product quantity: 1pc

Package weight: 0.3kg

Package size: 13 x 8 x 9 cm
