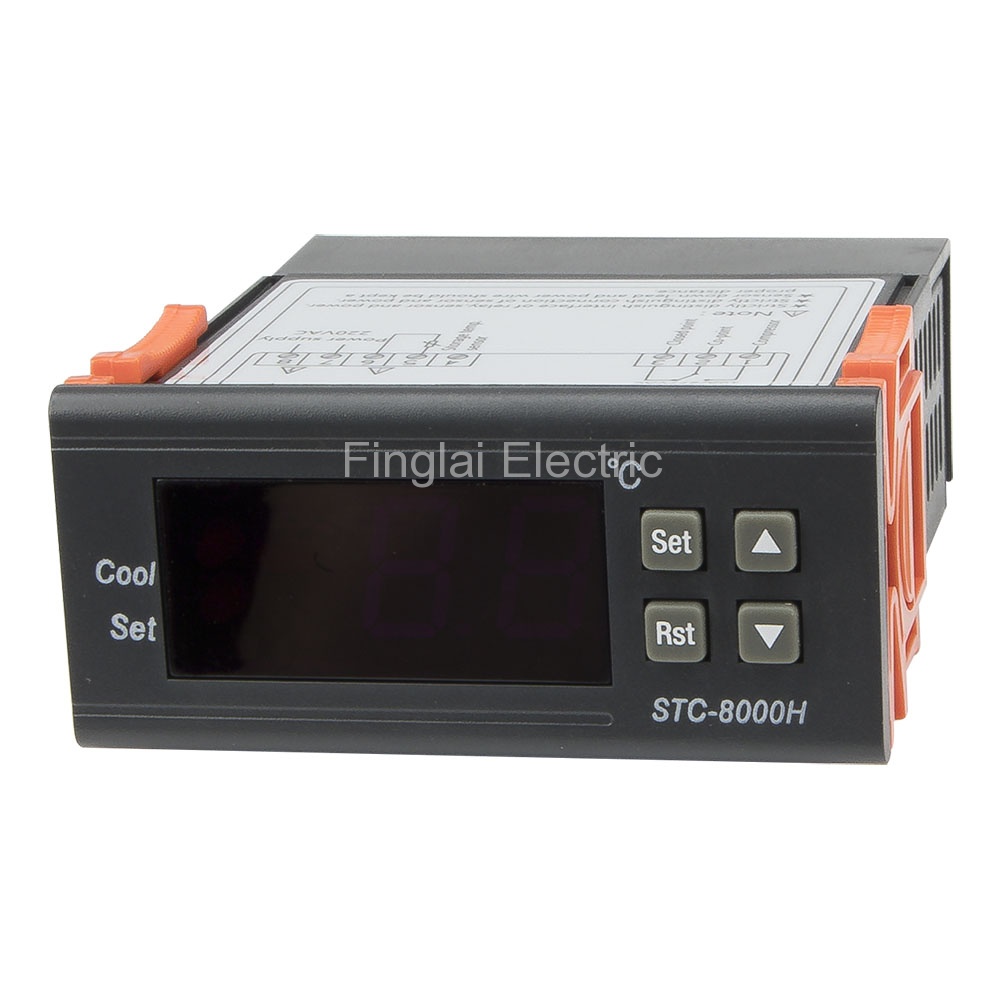

STC-8000H AC 220V cooling temperature controller
37 sold
Product features
Mouse over to zoom in
STC-8000H AC 220V cooling temperature controller
Price: US $10.11 / piece
Model number: STC-8000H-220VAC
Product name: Cooling temperature controller
Deliver to:
Shipping:
US $13.04via
Estimated Delivery Time: 9-17 days
Total price:US $23.15
Buy Now
Add to Cart
Inquire
Payment:PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
| Model number | Main function | Online store:
|
| STC-8000H | Cooling, single sensor, temperature correction | Visiting... |
▇ STC-8000H cooling temperature controller model number legend
▇ General
| Model number |
STC-8000H |
| Measure range |
-50 to 99 ℃ |
| Setting range |
-50 to 90 ℃ |
| Resolution |
1 ℃ |
| Accuracy |
±1 ℃ (-50 to 70 ℃), ±2℃ (Other) |
| Supply voltage |
220Vac, 110Vac, 50/60Hz; 12Vac/dc, 24Vac/dc
Current: 220VAC |
| Power consumption |
Less than 3W |
| Output types |
One mechanical relay |
| Input types |
1pc 2m cable NTC (included) |
| Panel size |
75x34.5 mm |
| External dimensions |
75x34.5x85 mm |
| Perforation dimensions |
71 10x29 10 mm |
| Control method |
ON/OFF Control |
| Setting method |
Touch switch |
| Indication method |
8-segment 3-digital display and LED indication |
| Front panel IP Rating |
IP64 |
| Operating temperature |
0 to 55 ℃ |
| Operating humidity |
20% to 85% RH, non-condensing |
| Storage temperature |
-30 to 75 ℃ |
| Alias name |
STC-8000H freezer temperature controller, defrost thermostat, freezer thermostat |
▇ Output type and description
| Electromagnetic relay for compressor |
10A@250VAC |
▇ STC-8000H cooling temperature controller child models
| No |
Model Number |
Supply Voltage |
MOQ |
Unit Price |
Related Product |
| 1 |
STC-8000H-220VAC |
220VAC |
1 |
US $10.11 |
Visiting... |
| 2 |
STC-8000H-110VAC |
110VAC |
1 |
US $10.11 |
Order |
| 3 |
STC-8000H-D |
12/24VAC/DC |
1 |
US $10.11 |
Order |
| 4 |
STC-8000H-24V |
24VAC/DC |
1 |
US $10.11 |
Order |
| 5 |
STC-8000H-12V |
12VAC/DC |
1 |
US $10.11 |
Order |
Packaging Details
Product quantity: 1pc
Package weight: 0.3kg
Package size: 13 x 8 x 9 cm
