FTARE03-K compensation wire

Main child models
Price: US $ / piece
Model number:
Product name: Compensation wire
Conductors quantity:
2
Single conductor cores quantity:
17
Core diameter:
0.2mm0.3mm0.5mm
Conductor insulating material:
Flat PTFETwisted pair PTFE
Cable length:
1m100m (1 roll)
Product description
Model number and parameters
Model numberTypeMeasuring rangeCore materialOnline store:
FTARE03-KK-60-250℃Nickel chromium alloy / nickel silicon alloyVisiting...
FTARE03-JJ-60-250℃Iron / copper nickel alloyUS $24.6 - 51.64/ pieceOrder (2)
FTARE03-TT-60-250℃Copper / copper-nickel alloyUS $24.6 - 49.19/ pieceOrder (2)
FTARE03-K compensation wire model number legend
FTARE03-K


Parent Model Number


Conductors quantity


-C2: 2


Single conductor cores quantity


S1: 1


S7: 7


Core diameter


D0.2: 0.2mm


D0.3: 0.3mm


D0.5: 0.5mm


Conductor insulating material


F: Flat PTFE


T: Twisted pair PTFE


Cable length


1: 1m


100: 100m (1 roll)
General
Model number FTARE03
Cabel material PTFE
Cable length Standard is 1m, customer can specify the cable length
Conductors quantity 2
Conductor insulating material PTFE (Twisted pair, flat)
Single conductor cores quantity 1, 7
Core diameter 0.2mm, 0.3mm, 0.5mm
Purpose Thermocouple temperature sensor extension wire or compensation wire cable for K J T type thermocouple
FTARE03-K compensation wire child models
No Model Number Conductors Quantity Single Conductor Cores Quantity Core Diameter Conductor Insulating Material Cable Length MOQ Unit Price

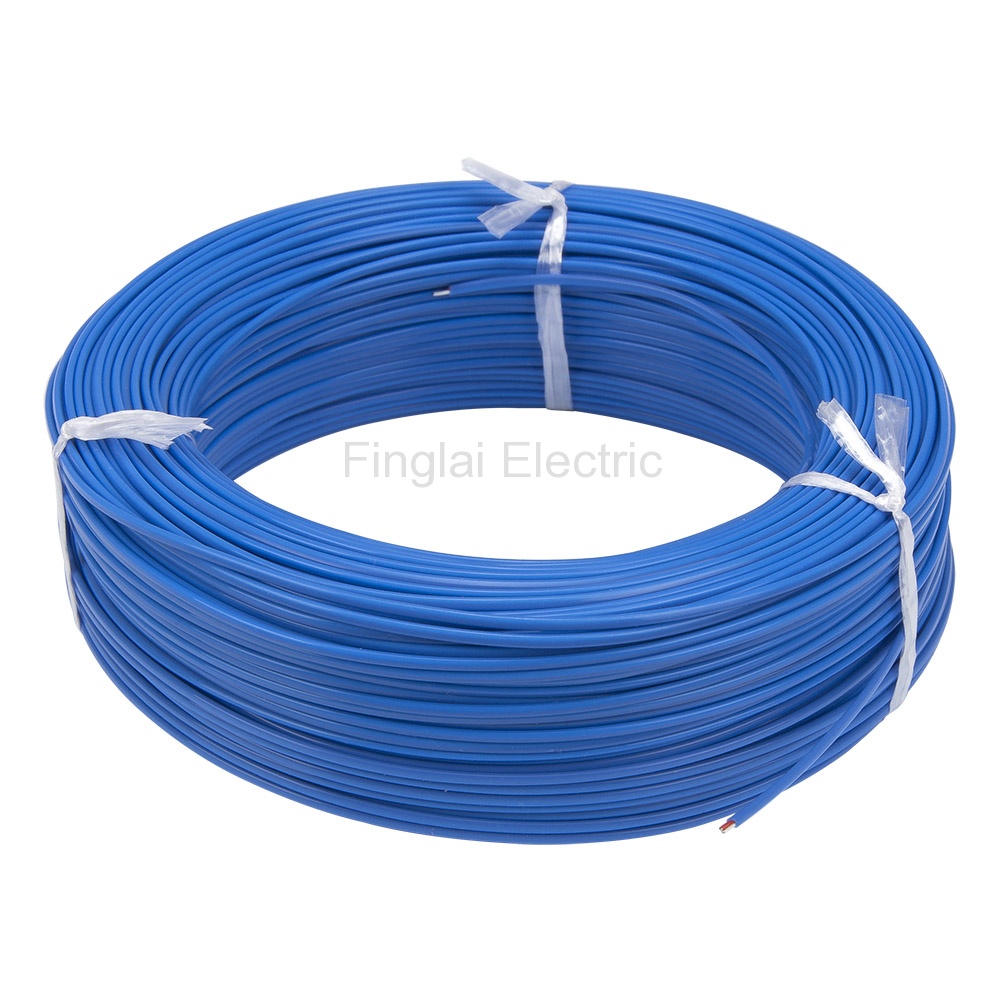

1 FTARE03-K-C2S1D0.3F100 2 1 0.3mm Flat PTFE 100m (1 roll) 1 US $24.6
2 FTARE03-K-C2S1D0.5F100 2 1 0.5mm Flat PTFE 100m (1 roll) 1 US $44.27
3 FTARE03-K-C2S7D0.2T100 2 7 0.2mm Twisted pair PTFE 100m (1 roll) 1 US $44.27
4 FTARE03-K-C2S7D0.3F100 2 7 0.3mm Flat PTFE 100m (1 roll) 1 US $73.78
