Products >> Instruments >> Compensation wires >> FTARE03 >> FTARE03-PT100 >> FTARE03-PT100-C2S7D0.15T100
<

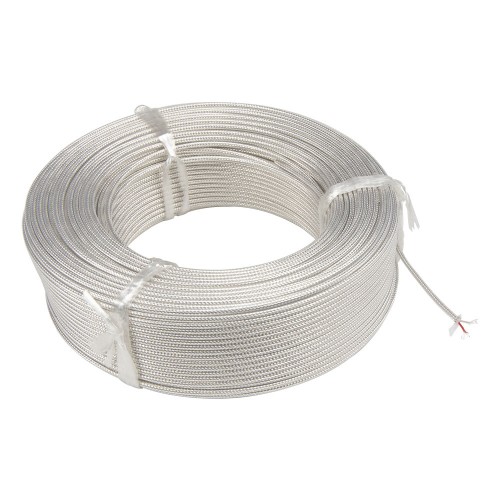

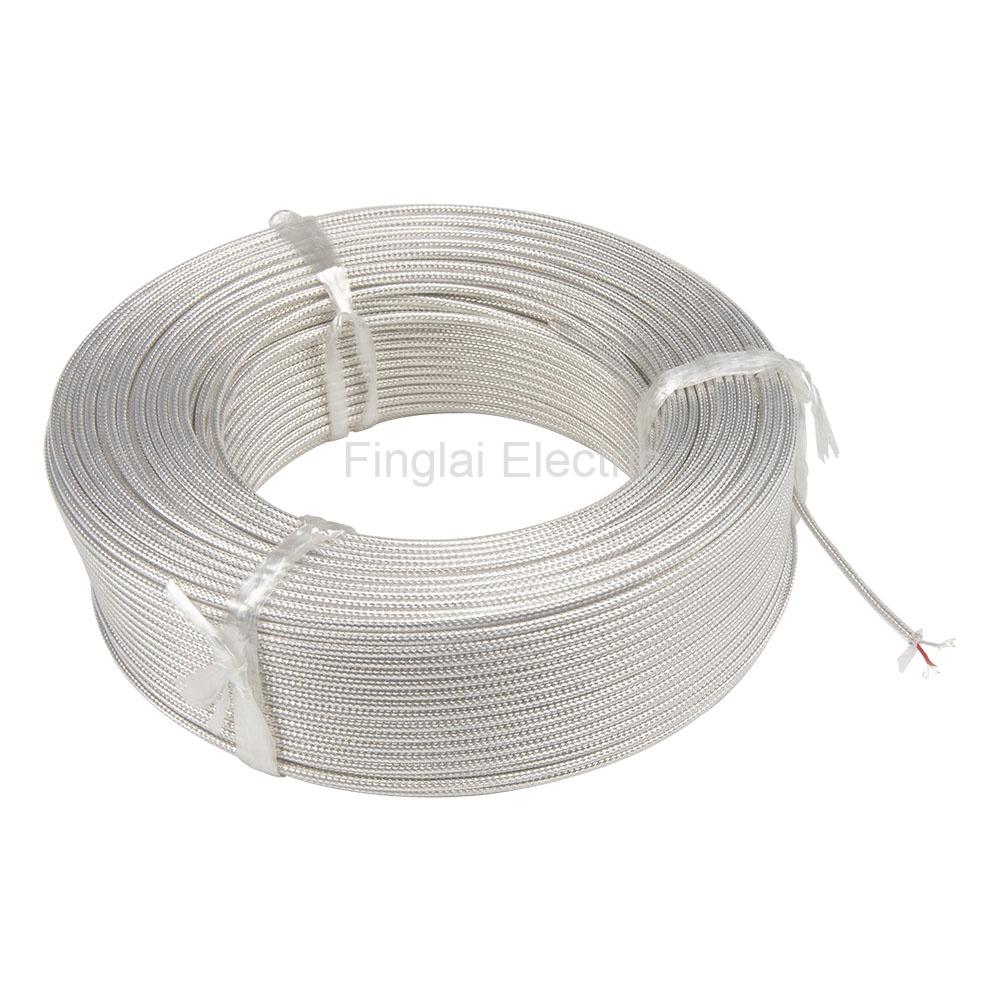

FTARE03-PT100 2*7*0.15mm 100m/1 roll PT100 RTD transparent FEP extension wire compensation wire cable for temperature sensor
Product features
Mouse over to zoom in
FTARE03-PT100 2*7*0.15mm 100m/1 roll PT100 RTD transparent FEP extension wire compensation wire cable for temperature sensor
Price: US $56.56 / piece
Model number: FTARE03-PT100-C2S7D0.15T100
Product name: Compensation wire
Single conductor cores quantity:
7Deliver to:
Shipping:
US $62.4via
Estimated Delivery Time: 9-17 days
Total price:US $118.96
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
| Model number | Type | Measuring range | Core material | Online store: |
| FTARE03-K | K | -60-200℃ | Nickel chromium alloy / nickel silicon alloy | US $24.6 - 73.78/ pieceOrder (5) |
| FTARE03-J | J | -60-200℃ | Iron / copper nickel alloy | US $24.6 - 1106.56/ pieceOrder (3) |
| FTARE03-T | T | -60-200℃ | Copper / copper-nickel alloy | US $24.6 - 49.19/ pieceOrder (2) |
| FTARE03-PT100 | PT100 | -50-200℃ | Visiting... |
▇ FTARE03-PT100 compensation wires model number legend
FTARE03-PT100
Parent Model Number
▇ General
| Model number | FTARE03 |
| Cable material | FEP, PVC |
| Cable length | Standard is 1m, customer can specify the cable length Current: 100m (1 roll) |
| Conductors quantity | 2 Current: 2 |
| Conductor insulating material | K, J, T: FEP (Twisted pair, flat); PT100: FEP (Transparent, White, Black) Current: Transparent FEP |
| Single conductor cores quantity | 1, 7 Current: 7 |
| Core diameter | 0.12mm, 0.15mm, 0.2mm, 0.3mm, 0.5mm Current: 0.15mm |
| Purpose | Thermocouple and RTD temperature sensor extension wire or compensation wire cable for K J T type thermocouple or PT100 RTD |
▇ FTARE03-PT100 compensation wires child models
| No | Model Number | Conductors Quantity | Single Conductor Cores Quantity | Core Diameter | Conductor Insulating Material | Cable Length | MOQ | Unit Price | Related Product |
| 1 | FTARE03-PT100-C2S7D0.15T100 | 2 | 7 | 0.15mm | Transparent FEP | 100m (1 roll) | 1 | US $56.56 | Visiting... |
| 2 | FTARE03-PT100-C2S7D0.2W50 | 2 | 7 | 0.2mm | White FEP | 50m | 1 | US $49.19 | Order |
| 3 | FTARE03-PT100-C3S7D0.12B50 | 3 | 7 | 0.12mm | Black PVC | 50m | 1 | US $56.56 | Order |
| 4 | FTARE03-PT100-C3S7D0.15T100 | 3 | 7 | 0.15mm | Transparent FEP | 100m (1 roll) | 1 | US $56.56 | Order |
| 5 | FTARE03-PT100-C3S7D0.2W100 | 3 | 7 | 0.2mm | White FEP | 100m (1 roll) | 1 | US $98.37 | Order Unfold |
Packaging Details
Product quantity: 1pc
Package weight: 2kg
Package size: 23 x 13 x 16 cm
