Products >> Instruments >> Compensation wires >> FTARE03 >> FTARE03-K >> FTARE03-K-C2S1D0.5F100
<

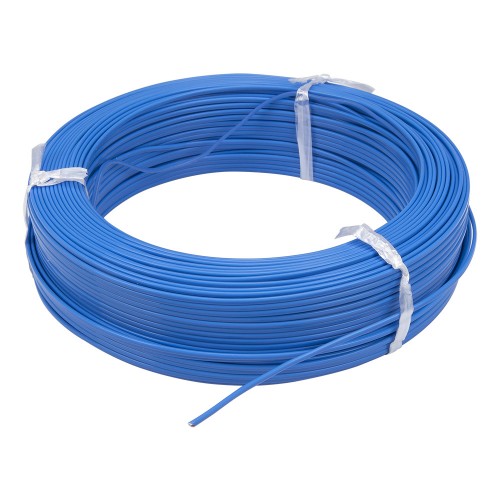

FTARE03-K 2*1*0.5mm 100m/1 roll K thermocouple flat PTFE extension wire compensation wire cable for temperature sensor

Product features
Mouse over to zoom in
FTARE03-K 2*1*0.5mm 100m/1 roll K thermocouple flat PTFE extension wire compensation wire cable for temperature sensor
Price: US $44.27 / piece
Model number: FTARE03-K-C2S1D0.5F100
Product name: Compensation wire
Conductors quantity:
2
Single conductor cores quantity:
1
US $44.27
7
Core diameter:
0.2mm0.3mm
US $24.6
0.5mm
US $44.27
Conductor insulating material:
Flat PTFE
US $44.27
Twisted pair PTFE
Cable length:
1m100m (1 roll)
US $44.27
Deliver to:
Shipping:
US $40.22via
Estimated Delivery Time: 9-15 days
Quantity:



Total price:US $84.49
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
Model number and parameters
Model numberTypeMeasuring rangeCore materialOnline store:
FTARE03-KK-60-200℃Nickel chromium alloy / nickel silicon alloyVisiting...
FTARE03-JJ-60-200℃Iron / copper nickel alloyUS $24.6 - 1106.56/ pieceOrder (3)
FTARE03-TT-60-200℃Copper / copper-nickel alloyUS $24.6 - 49.19/ pieceOrder (2)
FTARE03-PT100PT100-50-200℃US $56.56 - 98.37/ pieceOrder (2)
FTARE03-K compensation wire model number legend
FTARE03-K


Parent Model Number
-C2


Conductors quantity
S1


Single conductor cores quantity
F


Conductor insulating material
General
Model number FTARE03
Cable material PTFE
Cable length Standard is 1m, customer can specify the cable length
Current: 100m (1 roll)
Conductors quantity 2
Current: 2
Conductor insulating material K, J, T: PTFE (Twisted pair, flat); PT100: PTFE (Transparent, White)
Current: Flat PTFE
Single conductor cores quantity 1, 7
Current: 1
Core diameter 0.2mm, 0.3mm, 0.5mm
Current: 0.5mm
Purpose Thermocouple and RTD temperature sensor extension wire or compensation wire cable for K J T type thermocouple or PT100 RTD
FTARE03-K compensation wire child models
No Model Number Conductors Quantity Single Conductor Cores Quantity Core Diameter Conductor Insulating Material Cable Length MOQ Unit Price Related Product
1 FTARE03-K-C2S1D0.3F100 2 1 0.3mm Flat PTFE 100m (1 roll) 1 US $24.6 Order
2 FTARE03-K-C2S1D0.5F100 2 1 0.5mm Flat PTFE 100m (1 roll) 1 US $44.27 Visiting...
3 FTARE03-K-C2S7D0.2T100 2 7 0.2mm Twisted pair PTFE 100m (1 roll) 1 US $45.5 Order
4 FTARE03-K-C2S7D0.3F100 2 7 0.3mm Flat PTFE 100m (1 roll) 1 US $73.78 Order
Packaging Details
Product quantity: 1pc
Package weight: 2kg
Package size: 21 x 11 x 14 cm
