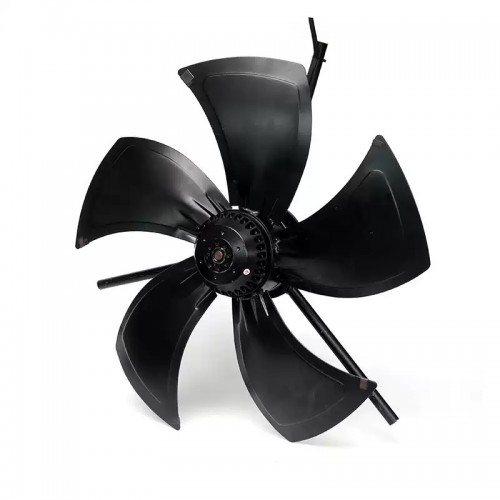

G-315A 614mm diameter single phase AC 220V no fan housing inverter axial flow fan
Product features
Mouse over to zoom in
G-315A 614mm diameter single phase AC 220V no fan housing inverter axial flow fan
Price: US $95.99 / piece
Model number: G-315A-N220VAC
Product name: Axial flow fan
Deliver to:
Shipping:
US $497.89via
Estimated Delivery Time: 9-17 days
Total price:US $593.88
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and main parameters
| Model number | Voltage | Frequency (Hz) | Phase | Power (W) | Current (A) | Speed (RPM) | Air flow (m3/h) | Wind presssure (pa) | Noise (dBA) | Online store: |
| G-63A | 380 | 50 | 3 | 20 | 0.075 | 2800 | 45 | 40 | 62 | |
| G-71A | 380 | 50 | 3 | 30 | 0.07 | 2800 | 300 | 50 | 50 | |
| G-80A | 380 | 50 | 3 | 30 | 0.07 | 2800 | 350 | 60 | 52 | US $20.69/ pieceOrder |
| G-90A | 380 | 50 | 3 | 42 | 0.07 | 2800 | 500 | 80 | 55 | US $20.69/ pieceOrder |
| G-100A | 380 | 50 | 3 | 52 | 0.14 | 2800 | 650 | 82 | 57 | US $22.22 - 34.18/ pieceOrder (4) |
| G-112A | 380 | 50 | 3 | 60 | 0.21 | 2800 | 1000 | 110 | 60 | US $22.22/ pieceOrder |
| G-132A | 380 | 50 | 3 | 40 | 0.21 | 1400 | 880 | 70 | 60 | US $29.65/ pieceOrder |
| G-160A | 380 | 50 | 3 | 80 | 0.22 | 1400 | 1100 | 40 | 60 | US $31.06/ pieceOrder |
| G-180A | 380 | 50 | 3 | 100 | 0.23 | 1400 | 1200 | 55 | 60 | US $32.47/ pieceOrder |
| G-200A | 380 | 50 | 3 | 200 | 0.31 | 1400 | 2500 | 65 | 60 | US $50.82/ pieceOrder |
| G-225A | 380 | 50 | 3 | 230 | 0.32 | 1400 | 3800 | 80 | 60 | US $56.38 - 81.87/ pieceOrder (6) |
| G-250A | 380 | 50 | 3 | 250 | 0.57 | 1400 | 4200 | 85 | 62 | US $62.11/ pieceOrder |
| G-280A | 380 | 50 | 3 | 370 | 0.7 | 1400 | 5000 | 100 | 68 | US $79.05 - 121.39/ pieceOrder (6) |
| G-315A | 380 | 50 | 3 | 500 | 1.3 | 1400 | 6000 | 150 | 70 | Visiting... |
| G-355A | 380 | 50 | 3 | 600 | 1.5 | 1400 | 6500 | 180 | 80 | US $111.25 - 185.41/ pieceOrder (2) |
| G-400A | 380 | 50 | 3 | 750 | 1.7 | 1400 | 7850 | 85 | 95 | |
| G-450A | 380 | 50 | 3 | 1100 | 2.3 | 1400 | 8500 | 85 | 105 | |
| G-500A | 380 | 50 | 3 | 2200 | 5 | 1400 | 10000 | 200 | 90 |
▇ G-315A AC axial flow fan model number legend
G-315A
Parent Model Number
▇ Model number and dimensions (Unit: mm)
| Model number | ΦD | L1 | L2 | X | L3 | δ | A | B | n | C |
| G-63A | 121±10 | 10±1 | 35±3 | 7 | 125 | 1 | 10 | 6 | 3 | 115 |
| G-71A | 136±10 | 12.5±1 | 35±3 | 7 | 125 | 1.2 | 10 | 6 | 3 | 120 |
| G-80A | 155±10 | 15±1 | 50±3 | 7 | 137 | 1.2 | 10 | 6 | 3 | 130 |
| G-90A | 175±10 | 15±1 | 55±3 | 7 | 142 | 1.2 | 10 | 6 | 3 | 140 |
| G-100A | 193±10 | 15±1 | 55±3 | 10 | 155 | 1.2 | 12 | 7 | 3 | 151 |
| G-112A | 217±10 | 17±1 | 55±3 | 10 | 155 | 1.2 | 12 | 7 | 3 | 163 |
| G-132A | 258±10 | 17±1 | 60±3 | 10 | 165 | 1.2 | 12 | 7 | 3 | 182 |
| G-160A | 314±10 | 20±1 | 92±5 | 10 | 210 | 1.5 | 12 | 7 | 4 | 210 |
| G-180A | 352±10 | 35±1 | 118±5 | 10 | 230 | 1.5 | 15 | 7 | 4 | 231 |
| G-200A | 393±10 | 40±1 | 130±5 | 10 | 255 | 1.5 | 15 | 9 | 4 | 252 |
| G-225A | 443±10 | 45±1 | 141±5 | 12 | 295 | 2 | 15 | 9 | 4 | 276 |
| G-250A | 482±10 | 55±1 | 158±5 | 12 | 315 | 2 | 15 | 9 | 4 | 296 |
| G-280A | 546±10 | 65±1 | 167±5 | 12 | 330 | 2 | 20 | 11 | 4 | 362 |
| G-315A | 614±10 | 75±1 | 185±5 | 20 | 380 | 2 | 20 | 11 | 4 | 398 |
| G-355A | 694±10 | 85±1 | 195±5 | 20/40 | 400/480 | 2.5 | 20 | 13 | 4 | 437 |
| G-400A | 786±10 | 145±1 | 330±5 | 40 | 510 | 3 | 20 | 13 | 4 | 485 |
| G-450A | 884±10 | 162±1 | 350±5 | 40 | 610 | 3 | 28 | 13 | 4 | 533 |
| G-500A | 985±10 | 180±1 | 360±5 | 40 | 686 | 3 | 30 | 15 | 4 | 584 |
▇ General
| Model number | G-A series |
| Dielectric strength | 1500Vac 50Hz for 1 min |
| Protection degree | IP54 |
| Rotary direction of Fan | Counterclockwise from front view |
▇ G-315A AC axial flow fan child models
| No | Model Number | Housing | Voltage | MOQ | Unit Price | Related Product |
| 1 | G-315A-N380VAC | No housing | 380VAC (Three phases) | 1 | US $95.99 | Order |
| 2 | G-315A-N220VAC | No housing | 220VAC (Single phase) | 1 | US $95.99 | Visiting... |
| 3 | G-315A-NT220VAC | No housing | 220VAC (Three phases) | 1 | US $95.99 | Order |
| 4 | G-315A-H380VAC | With housing | 380VAC (Three phases) | 1 | US $155.27 | Order |
| 5 | G-315A-H220VAC | With housing | 220VAC (Single phase) | 1 | US $155.27 | Order Unfold |
Packaging Details
Product quantity: 1pc
Package weight: 17kg
Package size: 70 x 70 x 25 cm
