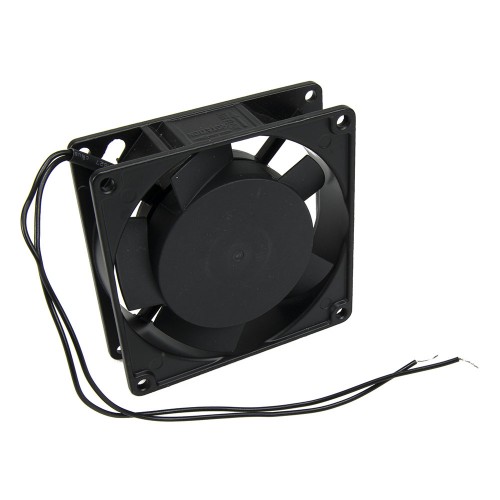

9225 SF9225AT 92mm AC 110V axial flow fan fit to intermittent work 2092HSL
Product features
Mouse over to zoom in
9225 SF9225AT 92mm AC 110V axial flow fan fit to intermittent work 2092HSL
Price: US $3.8 / piece

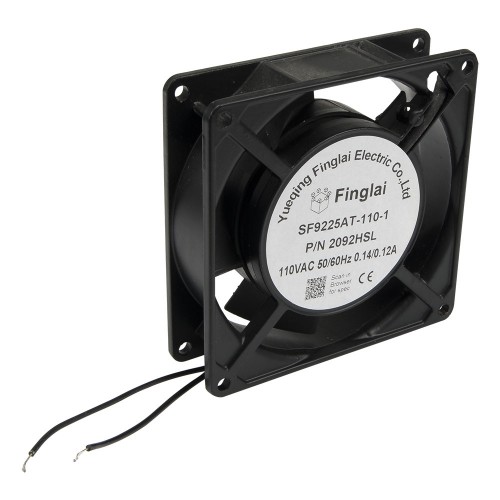

Model number: SF9225AT-110-1
Product name: AC axial flow fans
Deliver to:
Shipping:
US $14.49via
Estimated Delivery Time: 9-17 days
Total price:US $18.29
Buy Now
Add to Cart
Inquire
Payment:PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and main parameters
| Model number | Voltage | Frequency (Hz) | Phase | Power (W) | Current (A) | Speed (RPM) | Air flow (m3/min) | Noise (dBA) | Weight (kg) | Bearing | Online store:
|
| SF9225AT-110-1 | 110 | 50/60 | 1 | | | | | | 0.27 | Oil-retaining bearing | Visiting... |
| SF9225AT-110-2 | 110 | 50/60 | 1 | | | | | | 0.27 | Ball bearing | US $4.69/ pieceOrder |
| SF9225AT-220-1 | 220-240 | 50/60 | 1 | 13/11 | 0.1 | 2700-3100 | 0.85/1 | 31/35 | 0.27 | Oil-retaining bearing | US $3.14/ pieceOrder |
| SF9225AT-220-2 | 220-240 | 50/60 | 1 | 13/11 | 0.1 | 2250-2700 | 0.89/1.05 | 33/37 | 0.27 | Ball bearing | US $4.17/ pieceOrder |
▇ General
| Model number |
SF9225AT series |
| External dimensions |
92x92x25 mm |
| Frame |
High-grade aluminum alloy |
| Fan blades |
One-time forming by injection moulding, PBT + 30% glass line + VO grade flame retardant |
| Bearings |
High-precision, long life and low noise bearing |
| Leakage current |
0.5mA max |
| Dielectric strength |
1500Vac, 50/60 Hz for 1 min |
| Insulation resistance |
500MΩ min |
| Protection degree |
IP54 |
| Connection |
Lead wire |
| Wire length |
22cm |
| Matched protective cover |
FPC90 |
| Operating temperature |
-10 to 50 °C |
| Alias name |
2092HBL AC radiator fan |
9225 AC axial flow fan drawing
Packaging Details
Product quantity: 1pc
Package weight: 0.35kg
Package size: 14.5 x 8.5 x 10.5 cm
