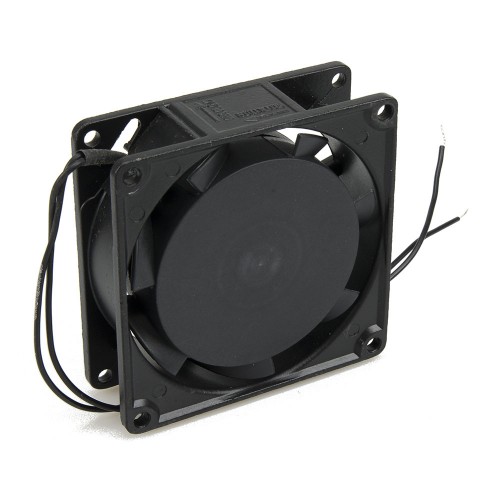

8025 SF8025AT 80mm 8cm AC 110V axial flow fan / radiator fan fit to 24 hours continuous work 22cm wire length 2082HBL
Product features
Mouse over to zoom in
8025 SF8025AT 80mm 8cm AC 110V axial flow fan / radiator fan fit to 24 hours continuous work 22cm wire length 2082HBL
Price: US $4.69 / piece
Model number: SF8025AT-110-2
Product name: Axial flow fans
Deliver to:
Shipping:
US $13.66via
Estimated Delivery Time: 9-17 days
DDP service: All applicable import duties and taxes are included in total price.
Total price:US $18.35
Buy Now
Add to Cart
Inquire
Payment:
PayPalCredit CardWESTERN UNIONBANK TRANSFER
Need quotation for reference?Get quotation
Product description
▇ Model number and main parameters
| Model number | Voltage | Frequency (Hz) | Phase | Power (W) | Current (A) | Speed (RPM) | Air flow (m3/min) | Noise (dBA) | Weight (kg) | Bearing | Online store: |
| SF8025AT-12-2W2 | 12VDC | Two wires | 0.2 | Ball bearing | US $2.85/ pieceOrder | ||||||
| SF8025AT-12-2W3 | 12VDC | Three wires | 0.2 | Ball bearing | US $3.74/ pieceOrder | ||||||
| SF8025AT-24-2W2 | 24VDC | Two wires | 0.15 | Ball bearing | US $2.85/ pieceOrder | ||||||
| SF8025AT-24-2W3 | 24VDC | Three wires | 0.15 | Ball bearing | US $3.74/ pieceOrder | ||||||
| SF8025AT-110-1 | 110-120VAC | 50/60 | 1 | 15/11 | 0.14 | 2300/2700 | 0.49/0.6 | 29/33 | 0.25 | Oil-retaining bearing | US $3.91/ pieceOrder |
| SF8025AT-110-2 | 110-120VAC | 50/60 | 1 | 15/11 | 0.14 | 2350/2700 | 0.51/0.62 | 30/35 | 0.25 | Ball bearing | Visiting... |
| SF8025AT-220-1 | 220-240VAC | 50/60 | 1 | 23/21 | 0.1 | 2300/2700 | 0.49/0.6 | 29/33 | 0.25 | Oil-retaining bearing | US $2.92/ pieceOrder |
| SF8025AT-220-2 | 220-240VAC | 50/60 | 1 | 23/21 | 0.1 | 2350/2700 | 0.51/0.62 | 30/35 | 0.25 | Ball bearing | US $4.17/ pieceOrder |
▇ General
| Model number | SF8025AT series |
| External dimensions | 80x80x25 mm |
| Frame | High-grade aluminum alloy |
| Fan blades | One-time forming by injection moulding, PBT + 30% glass line + VO grade flame retardant |
| Bearings | High-precision, long life and low noise bearing |
| Leakage current | 0.5mA max |
| Dielectric strength | 1500Vac, 50/60 Hz for 1 min |
| Insulation resistance | 500MΩ min |
| Protection degree | IP54 |
| Connection | Lead wire |
| Wire length | 22cm |
| Matched protective cover | FPC80 |
| Operating temperature | -10 to 50 °C |
| Alias name | 2082HBL 2082HBL AC radiator fan |
8025 AC axial flow fan drawing
Packaging Details
Product quantity: 1pc
Package weight: 0.35kg
Package size: 13 x 8 x 9 cm
