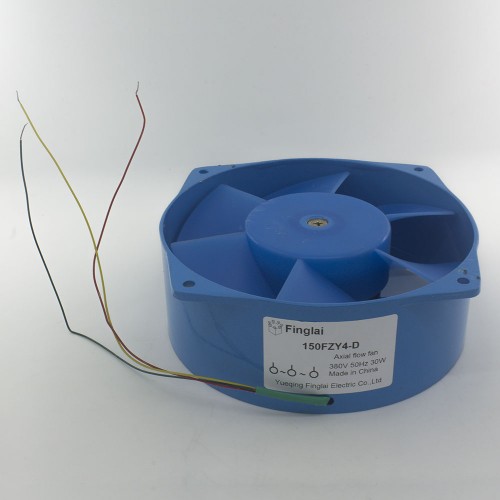

150FZY4-D 150*160*60mm AC 380V three fire lines control axial flow fan
1 sold
Product features
Mouse over to zoom in
150FZY4-D 150*160*60mm AC 380V three fire lines control axial flow fan
Price: US $9.3 / piece
Model number: 150FZY4-D
Product name: AC axial flow fan
Deliver to:
Shipping:
US $27.05via
Estimated Delivery Time: 12-17 days
Total price:US $36.35
Buy Now
Add to Cart
Inquire
Payment:PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and main parameters
| Model number | Voltage | Frequency (Hz) | Phase | Power (W) | Current (A) | Speed (RPM) | Air flow (m3/min) | Noise (dBA) | Weight (kg) | Capacitance (μF/V) | Bearing | Online store:
|
| 150FZY2-D | 220 | 50 | 1 | 30 | 0.16 | 2800 | 6.12 | 65 | 0.85 | 1/400 | Ball bearing | US $9.3/ pieceOrder |
| 150FZY4-D | 380 | 50 | 3 | 40 | 0.12 | 2800 | 6.12 | 65 | 0.85 | | Ball bearing | Visiting... |
| 150FZY7-D | 380 | 50 | 1 | 35 | 0.1 | 2800 | 6.12 | 62 | 0.85 | 0.33/630 | Ball bearing | US $10.15/ pieceOrder |
| 150FZY8-D | 220 | 50 | 1 | 30 | | | | | | | Ball bearing | |
| 150FZY9-D | 380 | 50 | 1 | 30 | 0.15 | 2500 | 5.5 | 65 | 0.75 | 0.47/630 | Ball bearing | US $11.22/ pieceOrder |
| 150FZY9-D2 | 380 | 50 | 1 | 30 | 0.11 | 2600 | 6 | 60 | 0.9 | 0.33/630 | Ball bearing | US $16.87/ pieceOrder |
▇ General
| Model number |
150FZY series |
| External dimensions |
150x160x60 mm |
| Motor type |
Three-phase / single-phase squirrel cage general motor |
| Leakage current |
0.5mA |
| Dielectric strength |
1500Vac 50Hz for 1 min |
| Protection degree |
IP54 |
| Wind direction |
2-D is only for exhausting, 4-D or 7-D can be changed the direction by exchanging any two wires |
150FZY series AC axial flow fan drawing (except 150FZY9-D2)
Packaging Details
Product quantity: 1pc
Package weight: 1kg
Package size: 20 x 20 x 15 cm
