12038 120mm 12cm AC 380V axial flow fan / radiator fan fit to intermittent work 12cm copper wire length DP200A 2123HSL
Product features
Mouse over to zoom in

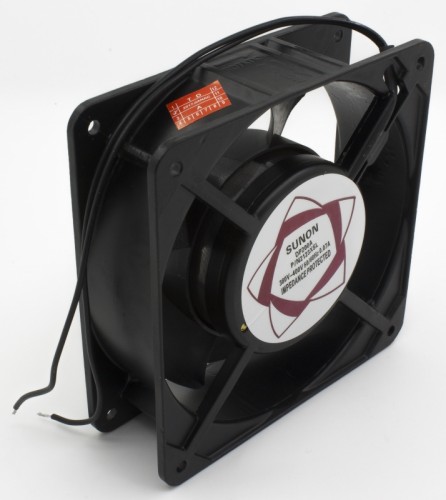

12038 120mm 12cm AC 380V axial flow fan / radiator fan fit to intermittent work 12cm copper wire length DP200A 2123HSL
Price: US $4 / piece
Model number: SF12038AT-380-1
Product name: AC axial flow fan
Deliver to:
Shipping:
US $20.3via
Estimated Delivery Time: 9-17 days
Total price:US $24.3
Buy Now
Add to Cart
Inquire
Payment:PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and main parameters
| Model number | Voltage | Frequency (Hz) | Phase | Power (W) | Current (A) | Speed (RPM) | Air flow (m3/min) | Noise (dBA) | Weight (kg) | Bearing | Online store:
|
| SF12038AT-110-1 | 110 | 50/60 | 1 | | 0.26 | | 2.3/2.7 | 46/49 | 0.55 | Oil-retaining bearing | US $4/ pieceOrder |
| SF12038AT-110-2 | 110 | 50/60 | 1 | | 0.26 | | 2.3/2.7 | 46/49 | 0.55 | Ball bearing | US $4.87/ pieceOrder |
| SF12038AT-220-1 | 220-240 | 50/60 | 1 | 23/21 | 0.14 | 2700/3100 | 2.68/3.25 | 45/49 | 0.55 | Oil-retaining bearing | US $3.42/ pieceOrder |
| SF12038AT-220-2 | 220-240 | 50/60 | 1 | 23/21 | 0.14 | 2700/3100 | 2.68/3.25 | 45/49 | 0.55 | Ball bearing | US $4.18/ pieceOrder |
| SF12038AT-380-1 | 380 | 50/60 | 3 | 18/17 | 0.08 | 2600/2900 | 2.56/2.85 | 42/45 | 0.55 | Oil-retaining bearing | Visiting... |
| SF12038AT-380-2 | 380 | 50/60 | 3 | 18/17 | 0.08 | 2600/2900 | 2.56/2.85 | 42/45 | 0.55 | Ball bearing | US $4.87/ pieceOrder |
▇ General
| Model number |
SF12038AT series |
| External dimensions |
120x120x38 mm |
| Frame |
High-grade aluminum alloy |
| Fan blades |
One-time forming by injection moulding, PBT + 30% glass line + VO grade flame retardant |
| Bearings |
High-precision, long life and low noise bearing |
| Insulation resistance |
500MΩ min |
| Protection degree |
IP54 |
| Connection |
Lead wire |
| Matched protective cover |
120mm protective cover |
| Alias name |
12038 AC radiator fan |
12038 AC axial flow fan drawing
Packaging Details
Product quantity: 1pc
Package weight: 0.55kg
Package size: 17.5 x 9.5 x 11.5 cm
